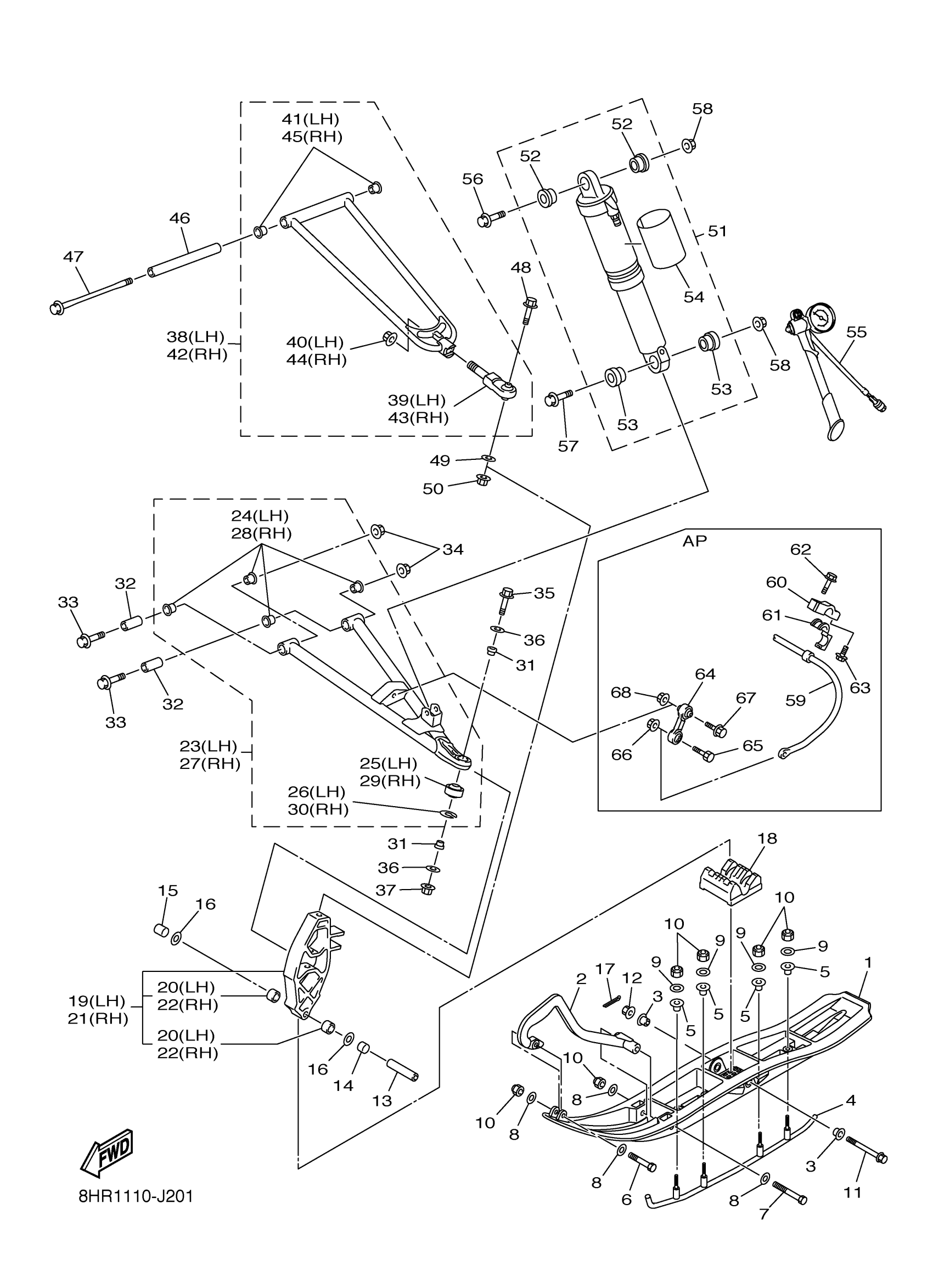

Yamaha FX10M53SZL (FX NYTRO MTX SE 153) 8HU1 2010 SKI Diagram
#
1
SKI 1
8FK-23711-BK-00
Unavailable
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
SKI RUNNER KIT
SMA-F3731-GP-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10410-00
$14.99
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
COLLAR
90387-10036-00
$22.99
14
COLLAR
90387-16017-00
$5.60
15
COLLAR
90387-16021-00
$30.99
16
WASHER, PLATE
90201-16033-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
STOPPER 1
8GP-23743-00-00
Unavailable
19
STEERING KNUCKLE ASSY (LEFT)
8HK-23501-00-00
Unavailable
20
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
21
STEERING KNUCKLE ASSY (RIGHT)
8HK-23502-00-00
Unavailable
22
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
23
FRONT LOWER ARM COMP. (LEFT)
8HK-23570-10-P1
Unavailable
24
BUSH, SOLID
90381-18N51-00
Unavailable
25
BALL JOINT 2
8HK-23579-00-00
Unavailable
26
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
27
FRONT LOWER ARM COMP. (RIGHT) (DEEP PURPLISH BLUE METALLIC C)
8HK-23580-10-P1
Unavailable
28
BUSH, SOLID
90381-18N51-00
Unavailable
29
BALL JOINT 2
8HK-23579-00-00
Unavailable
30
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
31
COLLAR, 1
8HK-23754-00-00
Unavailable
32
COLLAR
90387-10065-00
Unavailable
33
BOLT, FLANGE
90105-10211-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
$4.82
35
BOLT, FLANGE
90105-10318-00
Unavailable
36
WASHER, PLATE
90201-10052-00
Unavailable
37
NUT, S/L FLANGE
95602-10200-00
$4.82
38
FRONT UPPER ARM COMP. (LEFT)
8HK-23540-00-P1
Unavailable
39
BALL JOINT 1
8GK-23549-00-00
Unavailable
40
NUT, U FLANGE
95602-14200-00
Unavailable
41
BUSH, SOLID
90381-18N51-00
Unavailable
42
FRONT UPPER ARM COMP. (RIGHT)
8HK-23550-00-P1
Unavailable
43
BALL JOINT 1
8GK-23549-00-00
Unavailable
44
NUT, U FLANGE
95602-14200-00
Unavailable
45
BUSH, SOLID
90381-18N51-00
Unavailable
46
COLLAR 1
8HK-23373-00-00
Unavailable
47
BOLT, FLANGE
90105-10213-00
Unavailable
48
BOLT
91312-10045-00
Unavailable
49
WASHER, PLATE
90201-10052-00
Unavailable
50
NUT, S/L FLANGE
95602-10200-00
$4.82
51
ABSORBER ASSY 1
8HR-F376A-00-00
Unavailable
52
. BUSH
8HR-8HR-2376B-09-00
Unavailable
53
. BUSH
8HR-8HR-2376B-19-00
Unavailable
54
. LABEL, WARNING
8HR-F2259-00-00
Unavailable
55
FOX MEGA FLOAT PUMP
SMA-MEGAF-PU-MP
Unavailable
56
BOLT, FLANGE
90105-10122-00
Unavailable
57
BOLT, FLANGE
90105-10209-00
Unavailable
58
NUT, S/L FLANGE
95602-10200-00
$4.82
59
BAR, STABILIZER FRONT
8GN-2386E-00-00
Unavailable
59
BAR, STABILIZER FRONT
8GN-2386E-10-00
Unavailable
59
BAR, STABILIZER FRONT
8GN-2386E-20-00
Unavailable
60
HOLDER, STABILIZER FRONT
8GL-2386C-00-00
Unavailable
61
BUSH, STABILIZER FRONT
8GN-2386G-00-00
Unavailable
61
BUSH, STABILIZER FRONT
8GN-2386G-10-00
Unavailable
61
BUSH, STABILIZER FRONT
8GN-2386G-20-00
Unavailable
62
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
63
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
64
JOINT, STABILIZER 1
8GN-2385L-10-00
Unavailable
65
BOLT(6TA)
97017-10035-00
Unavailable
66
NUT, S/L FLANGE
95602-10200-00
$4.82
67
BOLT, FLANGE
95817-08040-00
Unavailable
68
NUT, SELF-LOCKING
95602-08200-00
Unavailable
