- FX10M53SZL (FX NYTRO MTX SE 153) 8HU1 2010
CRANKSHAFT PISTON

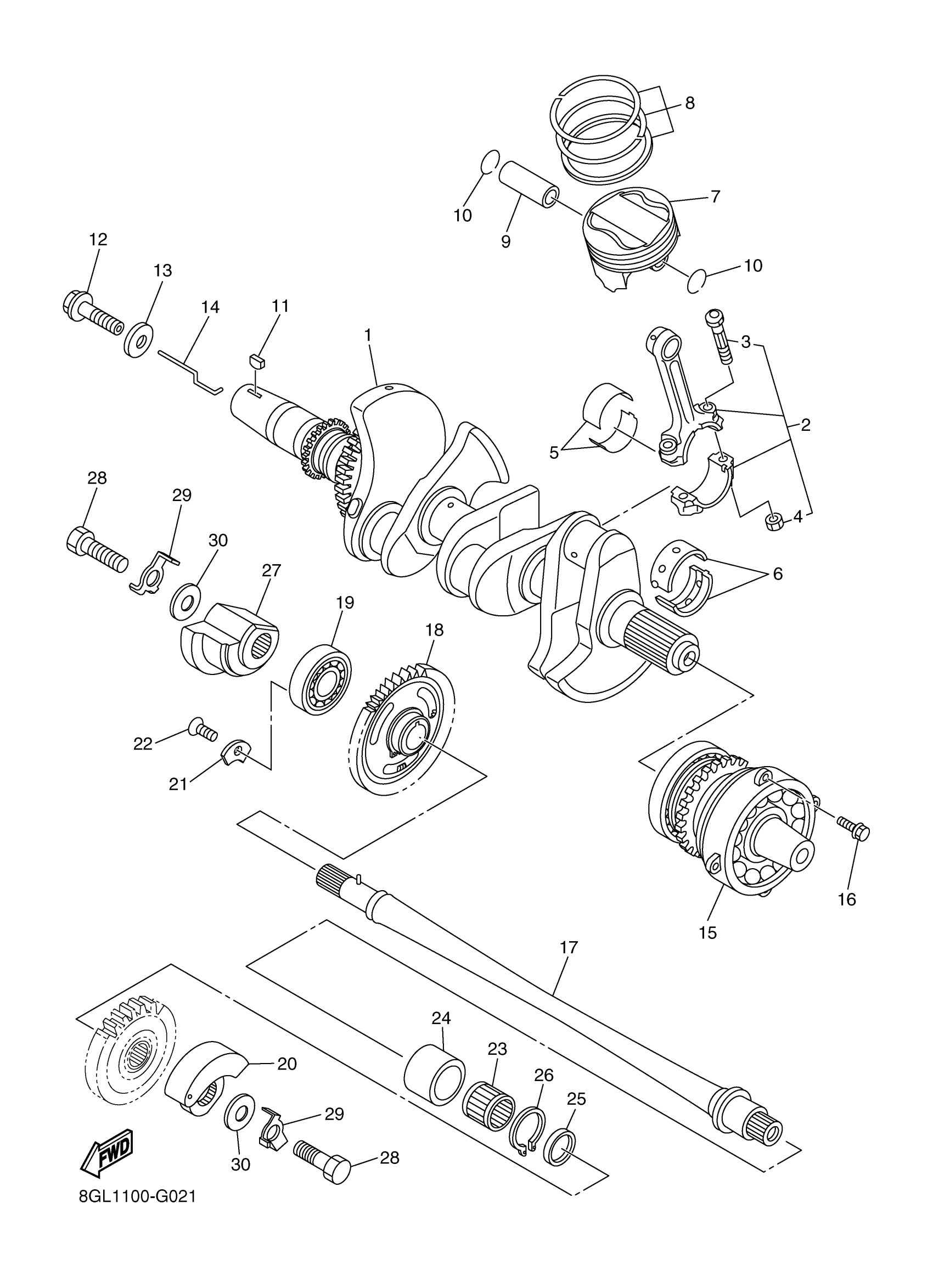

Yamaha FX10M53SZL (FX NYTRO MTX SE 153) 8HU1 2010 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSY
8GL-11400-00-00
Unavailable
2
CONNECTING ROD ASSY
8GL-11650-00-00
Unavailable
3
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
4
NUT (11H)
90179-08327-00
$9.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-00-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-10-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-20-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-30-00
$14.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-40-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-A0-00
$13.49
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-10-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-20-00
$27.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-30-00
$25.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-40-00
$27.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-50-00
$29.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-60-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-70-00
Unavailable
7
PISTON (STD)
8GL-11631-00-00
Unavailable
8
PISTON RING SET (STD)
8GL-11603-00-00
Unavailable
9
PIN, PISTON
8GL-11633-01-00
Unavailable
10
CIRCLIP (26H)
93450-19095-00
Unavailable
11
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
12
BOLT, FLANGE
90105-12032-00
Unavailable
13
WASHER (838)
90201-12191-00
Unavailable
14
SHAFT 1
59J-11455-00-00
Unavailable
15
SHAFT ASSY
8GL-11406-01-00
Unavailable
16
BOLT, FLANGE
95817-06020-00
Unavailable
17
SHAFT ASSY., 2
2HC-11407-00-00
Unavailable
18
BALANCER WEIGHT GE
2HC-11530-00-00
Unavailable
19
BEARING
93306-30323-00
Unavailable
20
WEIGHT 1
8ES-11454-00-00
Unavailable
21
PLATE, BEARING COVER
4JT-15381-01-00
Unavailable
22
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
23
BEARING
93310-42239-00
Unavailable
24
BEARING 1
8ES-11428-01-00
Unavailable
25
COLLAR
8ES-11478-00-00
Unavailable
26
CIRCLIP
93450-32152-00
Unavailable
27
WEIGHT 2
8ES-11464-00-00
Unavailable
28
BOLT(6TD)
97017-10025-00
Unavailable
29
WASHER, LOCK
90215-10003-00
Unavailable
30
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
