- FX10M53SEL (FX NYTRO MTX SE 153) 8HU70 2014
TRACK SUSPENSION 1

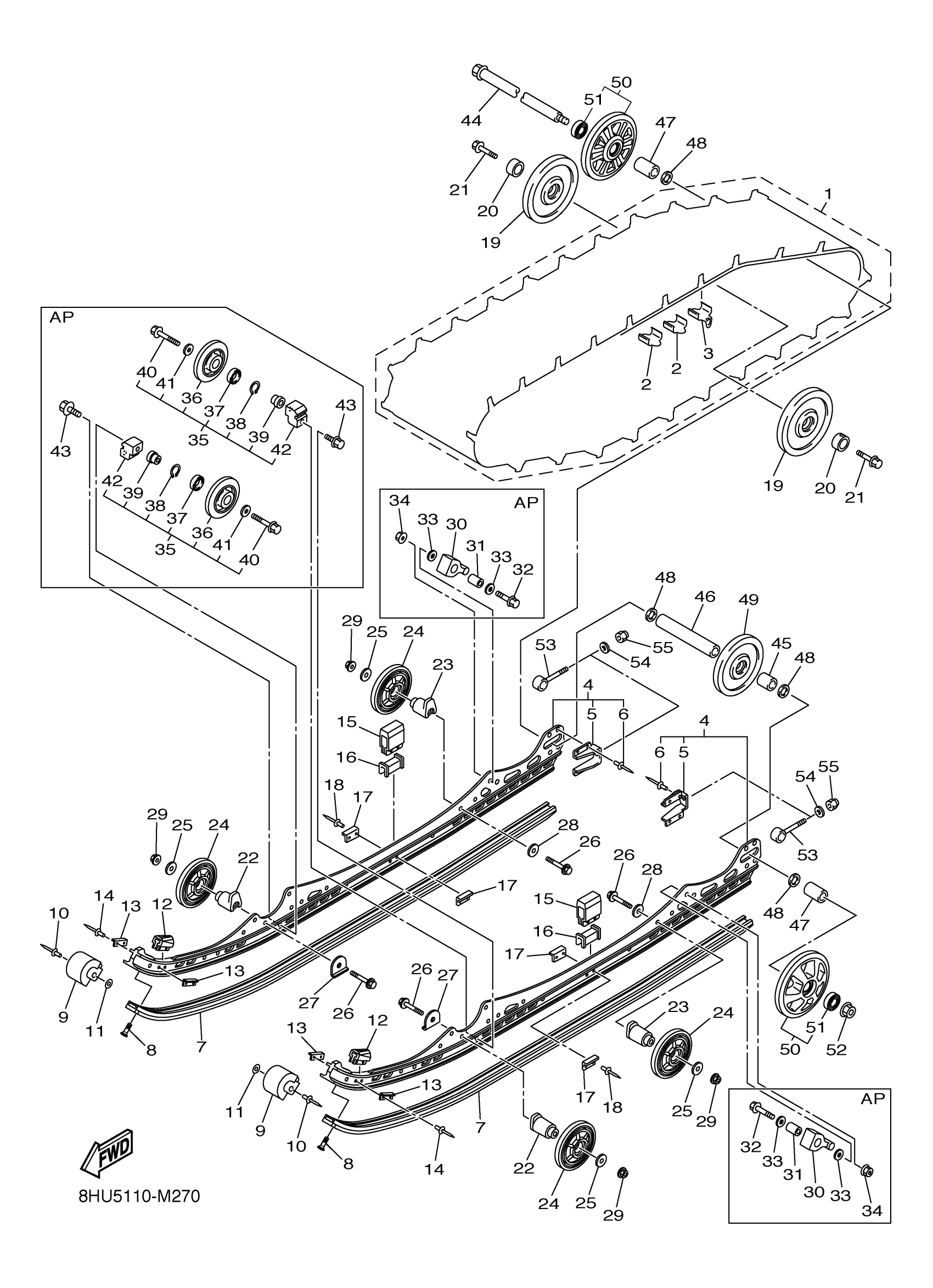

Yamaha FX10M53SEL (FX NYTRO MTX SE 153) 8HU70 2014 TRACK SUSPENSION 1 Diagram
#
1
TRACK - MAVERICK 153"
SMA-TRACK-90-25
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
FRAME, SLIDING
8HU-W4741-00-00
Unavailable
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
RUNNER, SLIDING 1
8HU-47421-00-00
Unavailable
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
DAMPER 1
8ES-47456-00-00
$6.99
13
PLATE, DAMPER
8K2-47458-01-00
$4.77
14
RIVET, BLIND
90267-48199-00
$3.76
15
DAMPER 2
8GL-47457-00-00
Unavailable
16
SPACER
8GL-47573-00-00
Unavailable
17
PLATE, DAMPER
8AX-47458-00-00
Unavailable
18
RIVET, BLIND
90267-48199-00
$3.76
19
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
20
COLLAR
90387-25005-00
Unavailable
21
BOLT
90109-10032-00
Unavailable
22
BRACKET 7
8ES-47419-20-00
Unavailable
23
BRACKET 7
8ES-47419-00-00
Unavailable
24
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
25
WASHER, PLATE
90201-101U2-00
Unavailable
26
BOLT, FLANGE
95812-10080-00
Unavailable
27
WASHER, CLAW
90214-10004-00
Unavailable
28
WASHER, PLATE
90201-10052-00
Unavailable
29
NUT, S/L FLANGE
95602-10200-00
Unavailable
30
STOPPER 2
8JH-47496-00-00
Unavailable
31
COLLAR (8U7)
90387-105G5-00
Unavailable
32
BOLT, HEXAGON
97017-10050-00
Unavailable
33
WASHER, PLATE
90201-10051-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
SUSPENSION WHEEL COMP.
8GP-47320-10-00
Unavailable
36
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
37
BEARING(8AB)
93306-00444-00
Unavailable
38
CIRCLIP(5U8)
99009-42500-00
Unavailable
39
COLLAR
8GP-47319-00-00
Unavailable
40
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
41
WASHER, PLATE
90201-10052-00
Unavailable
42
BRACKET 7
8GP-47419-10-00
Unavailable
43
BOLT, FLANGE
95817-10030-00
Unavailable
44
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
45
COLLAR
90387-20015-00
Unavailable
46
COLLAR
90387-20016-00
Unavailable
47
COLLAR
90387-20019-00
Unavailable
48
WASHER, PLATE
90201-20022-00
Unavailable
49
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
50
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
51
BEARING(8AB)
93306-00444-00
Unavailable
52
NUT, U FLANGE
95602-14200-00
Unavailable
53
COLLAR 3
8DM-47479-00-00
Unavailable
54
WASHER, PLATE
92990-10600-00
Unavailable
55
NUT, NYLON
95707-10300-00
Unavailable
