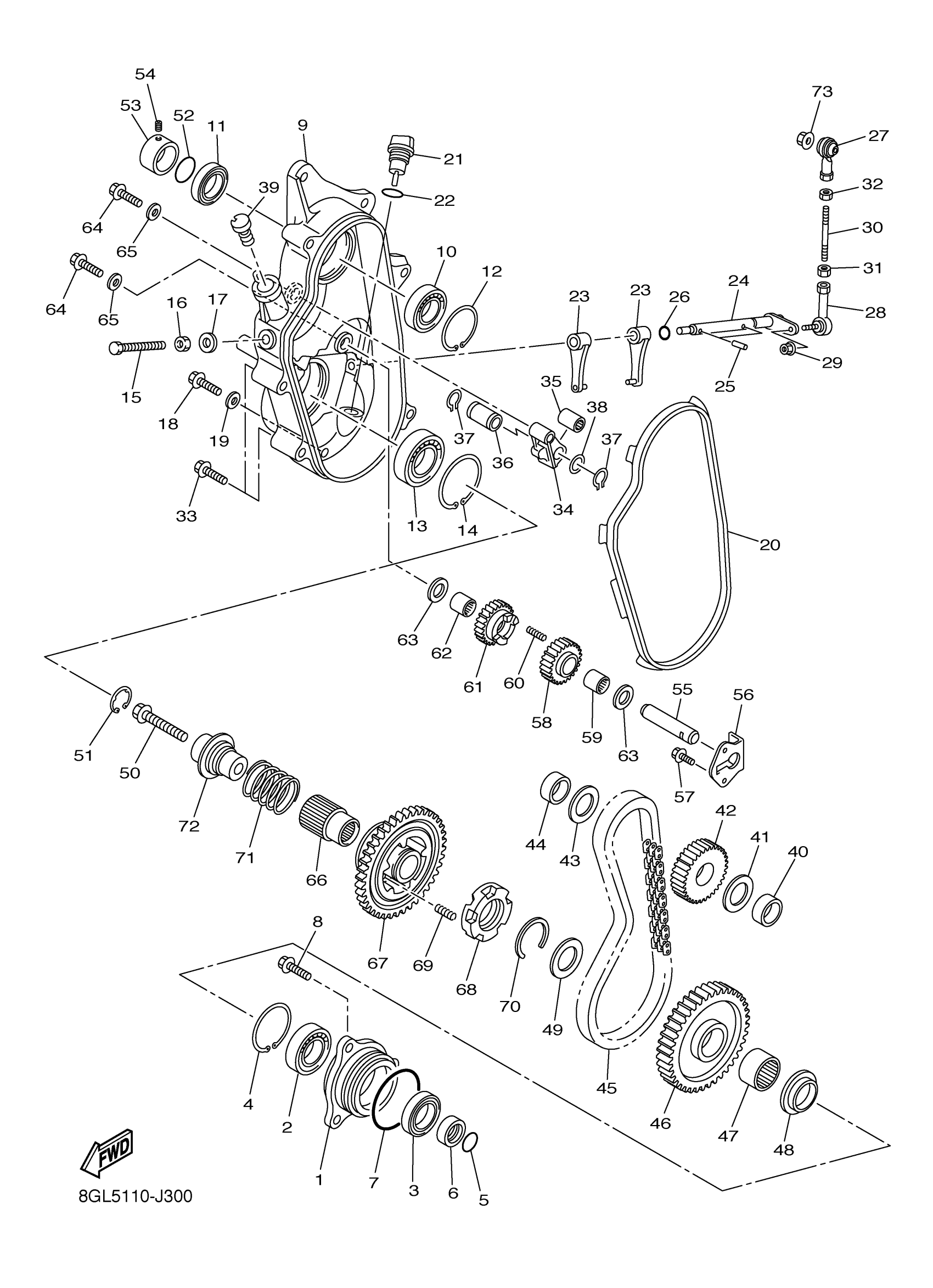

Yamaha FX10M53SEL (FX NYTRO MTX SE 153) 8HU70 2014 TRACK DRIVE 2 Diagram
#
1
HOUSING, BEARING 2
8GL-47633-00-00
$72.99
2
BEARING
93306-205A9-00
$61.99
3
OIL SEAL
93102-35010-00
$23.99
4
CIRCLIP(26H)
99009-52500-00
$12.49
5
O-RING (169)
93210-25071-00
$8.49
6
COLLAR(8CJ)
90387-2508C-00
$46.99
7
O-RING (4H7)
93210-60426-00
$10.49
8
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
9
CAP, HOUSING
8GL-47543-01-00
Unavailable
10
BEARING
93306-20532-00
$66.99
11
OIL SEAL
93102-35473-00
$33.99
12
CIRCLIP(26H)
99009-52500-00
$12.49
13
BEARING
93306-00711-00
$59.99
14
CIRCLIP(MF1)
99009-62500-00
$8.49
15
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
16
NUT (682)
95380-10700-00
Unavailable
17
WASHER SEAL 256111730200
90210-10004-00
Unavailable
18
BOLT, HEXAGON
97017-08016-00
Unavailable
19
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
20
RING, HOUSING
8GL-47558-01-00
Unavailable
21
PLUG, OIL LEVEL
8GL-15362-00-00
Unavailable
22
O-RING (5Y1)
93210-19522-00
Unavailable
23
FORK, SHIFT 1
8GL-18511-01-00
Unavailable
24
SHAFT
8GL-18197-00-00
Unavailable
25
PIN, SPRING(8DA)
91609-50022-00
Unavailable
26
O-RING (328)
93210-12131-00
Unavailable
27
JOINT 1
8CW-18156-00-00
Unavailable
28
JOINT 2
88T-18157-00-00
Unavailable
29
NUT, U FLANGE
95604-06200-00
Unavailable
30
ROD, SHIFT
8GL-18115-00-00
Unavailable
31
NUT (2H9)
90170-06228-00
Unavailable
32
NUT, HEXAGON
95380-06600-00
Unavailable
33
BOLT, FLANGE
90105-08179-00
Unavailable
34
HOLDER
8ES-47613-00-00
Unavailable
35
BEARING
93311-32685-00
Unavailable
36
COLLAR
90387-22005-00
Unavailable
37
CIRCLIP
99009-26400-00
Unavailable
38
WASHER, PLATE
90201-266P2-00
Unavailable
39
PLUG
8GL-47575-00-00
Unavailable
40
COLLAR
90387-30011-00
Unavailable
41
WASHER, CONICAL SPRING
90208-30001-00
Unavailable
42
SPROCKET, CHAIN DRIVE
8FA-17682-80-00
Unavailable
43
WASHER, CONICAL SPRING
90208-26002-00
Unavailable
44
COLLAR
90387-26007-00
Unavailable
45
CHAIN
94890-09068-00
Unavailable
46
SPROCKET, CHAIN DRIVEN
8FB-47587-00-00
Unavailable
47
BEARING, CYLINDRICAL(8DA)
93317-33179-00
Unavailable
48
COLLAR(8DA)
90387-2008G-00
Unavailable
49
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
50
BOLT, FLANGE
90105-10369-00
Unavailable
51
CIRCLIP
93420-26092-00
Unavailable
52
O-RING (36R)
93210-25642-00
Unavailable
53
COLLAR
90387-25018-00
Unavailable
54
BOLT, SET
90113-06006-00
Unavailable
55
SHAFT, 1
8CW-1761A-00-00
Unavailable
56
PLATE
8CW-47591-00-00
Unavailable
57
BOLT, FLANGE
95817-06016-00
Unavailable
58
SPROCKET, DRIVE
8FB-17692-00-00
Unavailable
59
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
60
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
61
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
Unavailable
62
BEARING, CYLINDRICAL(8DA)
93317-21578-00
Unavailable
63
WASHER PLATE (3L6)
90201-16245-00
Unavailable
64
BOLT, FLANGE
95817-06016-00
Unavailable
65
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
66
JOURNAL 1
8CW-47571-00-00
Unavailable
67
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
68
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
69
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
70
CIRCLIP(8DA)
93440-39175-00
Unavailable
71
SPRING, COMPRESSION(8FA1)
90501-260A0-00
Unavailable
72
COLLAR
8GL-48566-10-00
Unavailable
73
NUT, U FLANGE
95604-06200-00
Unavailable
