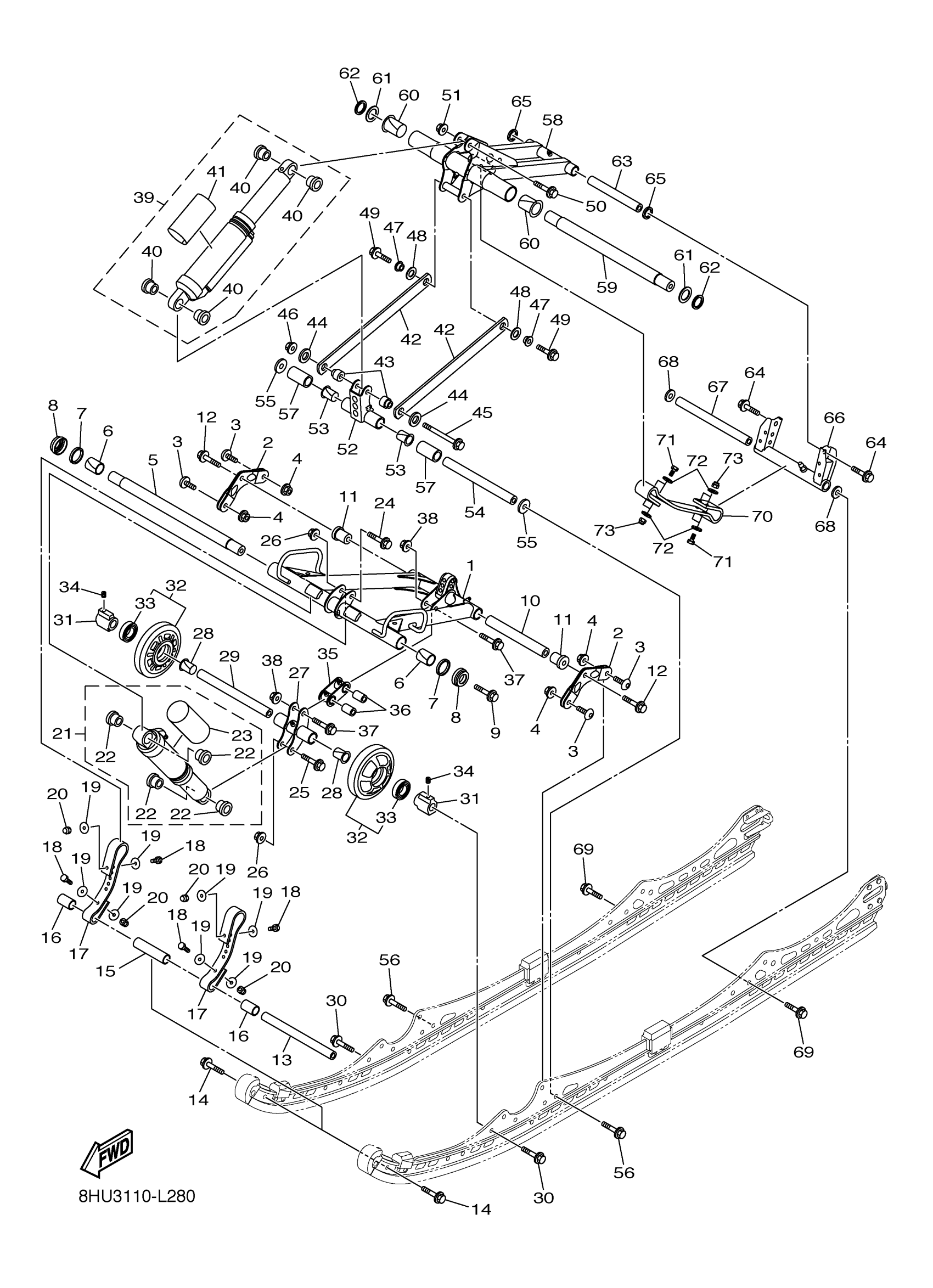

Yamaha FX10M53SBL (FX NYTRO MTX SE 153) 8HU30 2012 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8HR-47331-00-00

Unavailable

2

BRACKET 1

8HR-47415-00-00

$28.99

3

BOLT,HEX. SOCKET BUTTON

90111-10037-00

$4.46

4

NUT, S/L FLANGE

95602-10200-00

$4.82

5

SHAFT 1

8HL-47465-00-00

Unavailable

6

BUSH, FORMED

90383-23002-00

$17.99

7

OIL SEAL(37F)

93108-37011-00

$7.49

8

SPACER

8HF-47341-00-00

$25.99

9

BOLT

90109-10032-00

$8.49

10

SHAFT 4

8ES-47486-00-00

$40.99

11

COLLAR

90387-10022-00

$18.99

12

BOLT, FLANGE

90105-10209-00

$8.49

13

SHAFT 3

8ES-47485-00-00

$55.99

14

BOLT, FLANGE

90105-10209-00

$8.49

15

COLLAR

90387-19002-00

$7.49

16

COLLAR

90387-19001-00

Unavailable

17

STOPPER 1

8HR-47495-00-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

19

WASHER, PLATE

90201-06081-00

Unavailable

20

NUT, NYLON

95707-06300-00

Unavailable

21

SHOCK ABSORBER 2

8HR-47481-00-00

Unavailable

22

BUSH

8HR-47371-09-00

Unavailable

23

. LABEL, WARNING

8HR-22259-10-00

Unavailable

24

BOLT, FLANGE

90105-10295-00

Unavailable

25

BOLT, FLANGE

90105-10295-00

Unavailable

26

NUT, S/L FLANGE

95602-10200-00

$4.82

27

BRACKET, ARM PIVOT

8HR-47349-10-00

Unavailable

28

BUSH

90386-20001-00

Unavailable

29

SHAFT 5

8GN-47487-00-00

Unavailable

30

BOLT, FLANGE

90105-10209-00

$8.49

31

COLLAR

8ES-47319-01-00

Unavailable

32

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

33

BRG,R-B 6005 47MM 85G KY

93306-00507-00

Unavailable

34

BOLT, SET (8K2)

90113-06039-00

Unavailable

35

BRACKET 2

8FK-47416-01-00

Unavailable

36

COLLAR

90387-10024-00

Unavailable

37

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

38

NUT, S/L FLANGE

95602-10200-00

$4.82

39

SHOCK ABSORBER

8HR-47480-01-00

Unavailable

40

BUSH

8HR-47371-09-00

Unavailable

41

. LABEL, WARNING

8HR-22259-40-00

Unavailable

42

RELAY ROD ASSY

8HR-47490-00-00

Unavailable

43

COLLAR 2

8HR-47366-00-00

Unavailable

44

WASHER, PLATE

90201-16027-00

Unavailable

45

BOLT, FLANGE

90105-10338-00

Unavailable

46

NUT, S/L FLANGE

95602-10200-00

$4.82

47

COLLAR 2

8HR-47366-10-00

Unavailable

48

WASHER, PLATE

90201-16027-00

Unavailable

49

BOLT, FLANGE

95817-10030-00

Unavailable

50

BOLT, FLANGE

90105-10283-00

Unavailable

51

NUT, S/L FLANGE

95602-10200-00

$4.82

52

BRACKET, ARM PIVOT

8HR-47349-00-00

Unavailable

53

BUSH

90386-20001-00

Unavailable

54

SHAFT 5

8HP-47487-00-00

Unavailable

55

WASHER, PLATE

90201-10043-00

Unavailable

56

BOLT, FLANGE

90105-10209-00

$8.49

57

COLLAR

90387-20032-00

Unavailable

58

ARM, PIVOT 2

8HR-47332-00-00

Unavailable

59

SHAFT 2

8FU-47475-00-00

Unavailable

60

BUSH, SOLID(8CJ)

90381-28108-00

Unavailable

61

WASHER, PLATE (8V2)

90201-251G8-00

Unavailable

62

WASHER, PLATE(8CJ)

90201-250T6-00

Unavailable

63

SHAFT 6

8GC-47488-00-00

Unavailable

64

BOLT, FLANGE

95817-10030-00

Unavailable

65

WASHER, PLATE

90201-19008-00

Unavailable

66

BRACKET 3

8GC-47417-10-00

Unavailable

67

SHAFT 3

8FU-47485-00-00

Unavailable

68

WASHER PLATE (789)

90201-10136-00

Unavailable

69

BOLT, FLANGE

95817-10030-00

Unavailable

70

STOPPER 2

8HR-47496-00-00

Unavailable

71

BOLT, HEXAGON

97017-06025-00

Unavailable

72

WASHER, PLATE

90201-06036-00

Unavailable

73

NUT, NYLON

95707-06300-00

Unavailable
