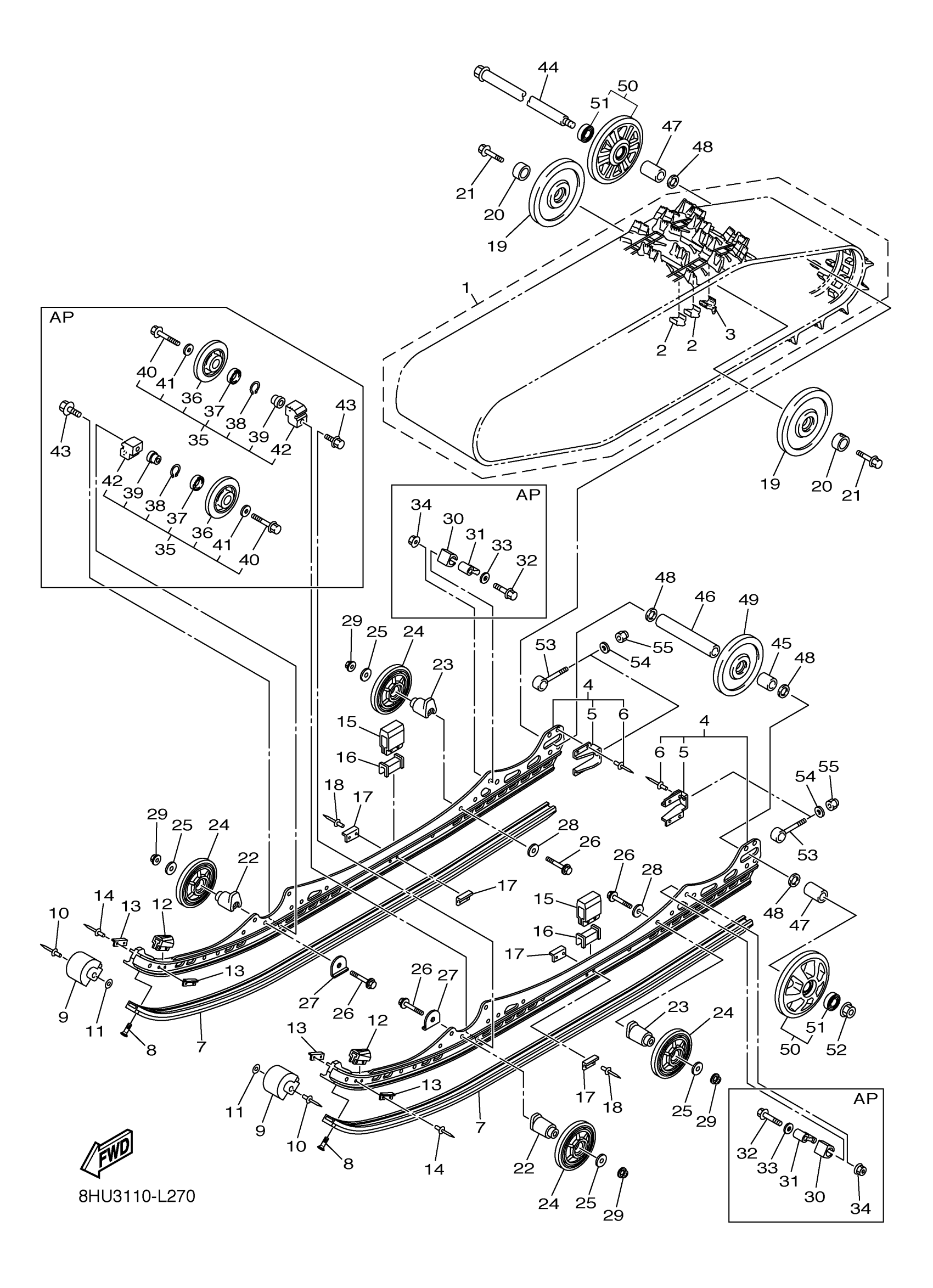

Yamaha FX10M53SBL (FX NYTRO MTX SE 153) 8HU30 2012 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK - MAVERICK 153"

SMA-TRACK-90-25

Unavailable

2

PLATE, REINFORCEMENT

8HR-47113-09-00

$17.99

3

METAL, SLIDE

8GN-47115-09-00

$13.99

4

FRAME, SLIDING

8HU-W4741-00-00

Unavailable

5

BRACKET

8DM-4741B-00-00

$45.99

6

RIVET

8V0-47468-00-00

$10.49

7

RUNNER, SLIDING 1

8HU-47421-00-00

Unavailable

8

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

9

RUNNER, SLIDING 2

8GL-47422-00-00

$30.99

10

RIVET BLIND

90267-48194-00

$3.28

11

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

12

DAMPER 1

8ES-47456-00-00

$6.99

13

PLATE, DAMPER

8K2-47458-01-00

$4.77

14

RIVET, BLIND

90267-48199-00

$3.76

15

DAMPER 2

8GL-47457-00-00

Unavailable

16

SPACER

8GL-47573-00-00

Unavailable

17

PLATE, DAMPER

8AX-47458-00-00

Unavailable

18

RIVET, BLIND

90267-48199-00

$3.76

19

GUIDE WHEEL ASSY

8AC-47550-00-00

Unavailable

20

COLLAR

90387-25005-00

Unavailable

21

BOLT

90109-10032-00

Unavailable

22

BRACKET 7

8ES-47419-20-00

Unavailable

23

BRACKET 7

8ES-47419-00-00

Unavailable

24

SUSPENSION WHEEL ASSY

8FS-47310-01-00

Unavailable

25

WASHER, PLATE

90201-101U2-00

Unavailable

26

BOLT, FLANGE

95812-10080-00

Unavailable

27

WASHER, CLAW

90214-10004-00

Unavailable

28

WASHER, PLATE

90201-10052-00

Unavailable

29

NUT, S/L FLANGE

95602-10200-00

Unavailable

30

STOPPER 2

8GC-47496-00-00

Unavailable

31

COLLAR

8GN-47338-00-00

Unavailable

32

BOLT, HEXAGON

97017-10050-00

Unavailable

33

WASHER, PLATE

90201-10061-00

Unavailable

34

NUT, S/L FLANGE

95602-10200-00

Unavailable

35

SUSPENSION WHEEL COMP.

8GP-47320-10-00

Unavailable

36

SUSPENSION WHEEL COMP.

8AC-47320-00-00

Unavailable

37

BEARING(8AB)

93306-00444-00

Unavailable

38

CIRCLIP(5U8)

99009-42500-00

Unavailable

39

COLLAR

8GP-47319-00-00

Unavailable

40

BOLT, FLANGE (8V9)

95812-10045-00

Unavailable

41

WASHER, PLATE

90201-10052-00

Unavailable

42

BRACKET 7

8GP-47419-10-00

Unavailable

43

BOLT, FLANGE

95817-10030-00

Unavailable

44

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

45

COLLAR

90387-20015-00

Unavailable

46

COLLAR

90387-20016-00

Unavailable

47

COLLAR

90387-20019-00

Unavailable

48

WASHER, PLATE

90201-20022-00

Unavailable

49

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

50

REAR WHEEL BLK 178MM

SMA-8FP38-02-BK

Unavailable

51

BEARING(8AB)

93306-00444-00

Unavailable

52

NUT, U FLANGE

95602-14200-00

Unavailable

53

COLLAR 3

8DM-47479-00-00

Unavailable

54

WASHER, PLATE

92990-10600-00

Unavailable

55

NUT, NYLON

95707-10300-00

Unavailable
