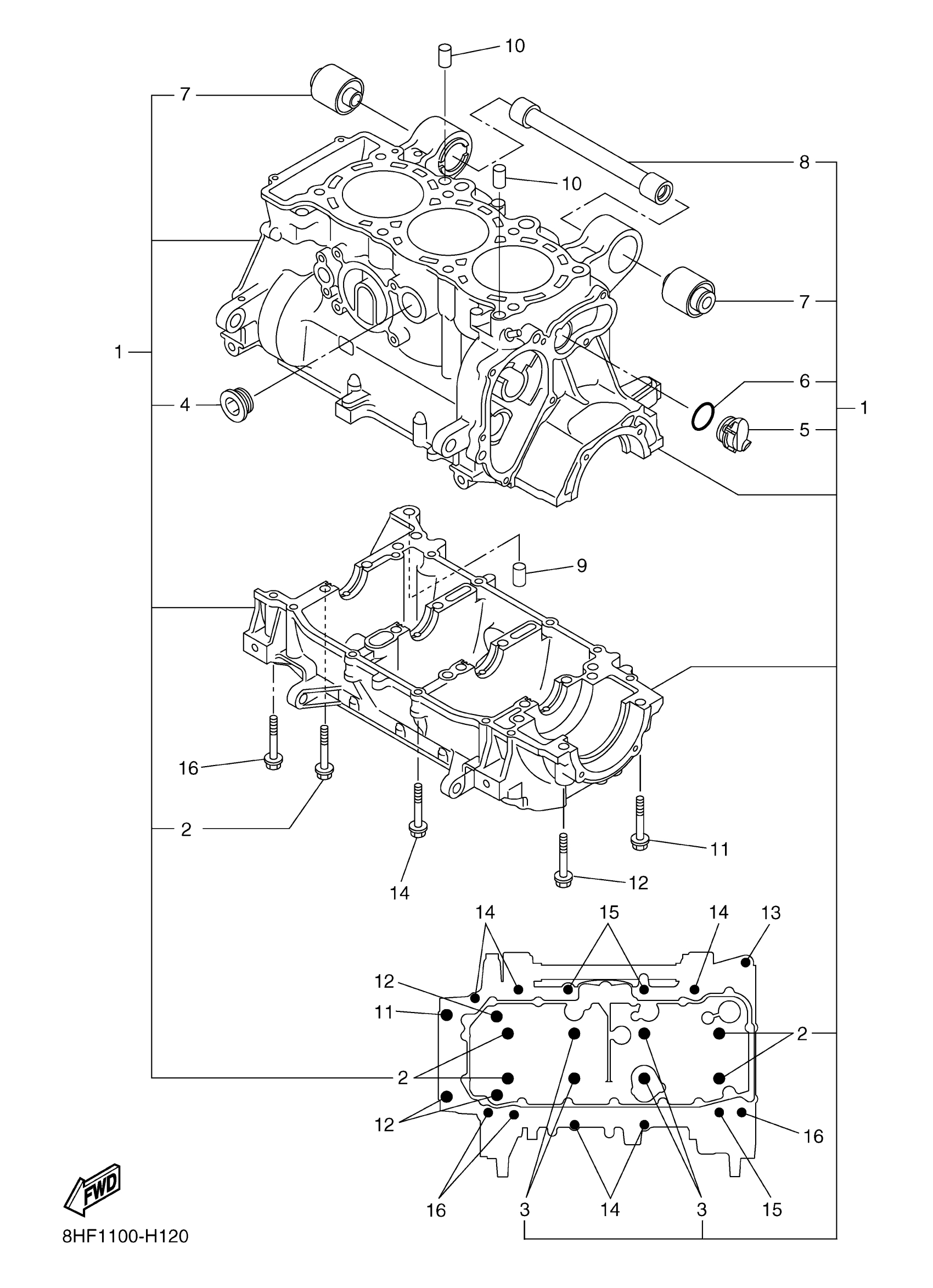

Yamaha FX10M53SBL (FX NYTRO MTX SE 153) 8HU30 2012 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8GL-15109-09-00

Unavailable

2

BOLT, WITH WASHER

90119-09004-00

$8.56

3

BOLT, WITH WASHER

90119-09011-00

$33.30

4

PLUG, STRAIGHT SCREW

90340-27129-00

$4.79

5

PLUG, BLIND 1

8ES-15167-00-00

$8.56

6

O-RING(1HX)

93210-24709-00

$7.55

7

DAMPER

8FA-2139X-00-00

Unavailable

8

SPACER

8ES-21459-00-00

Unavailable

9

PIN, DOWEL(3VD)

99530-10114-00

$2.13

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

BOLT, FLANGE

95817-08055-00

$2.63

12

BOLT, FLANGE(JN5)

95817-08070-00

$3.15

13

BOLT

90109-06185-00

$6.61

14

BOLT, FLANGE

95812-06055-00

$1.37

15

BOLT, FLANGE

95812-06080-00

$6.23

16

BOLT, FLANGE

95817-06080-00

Unavailable
