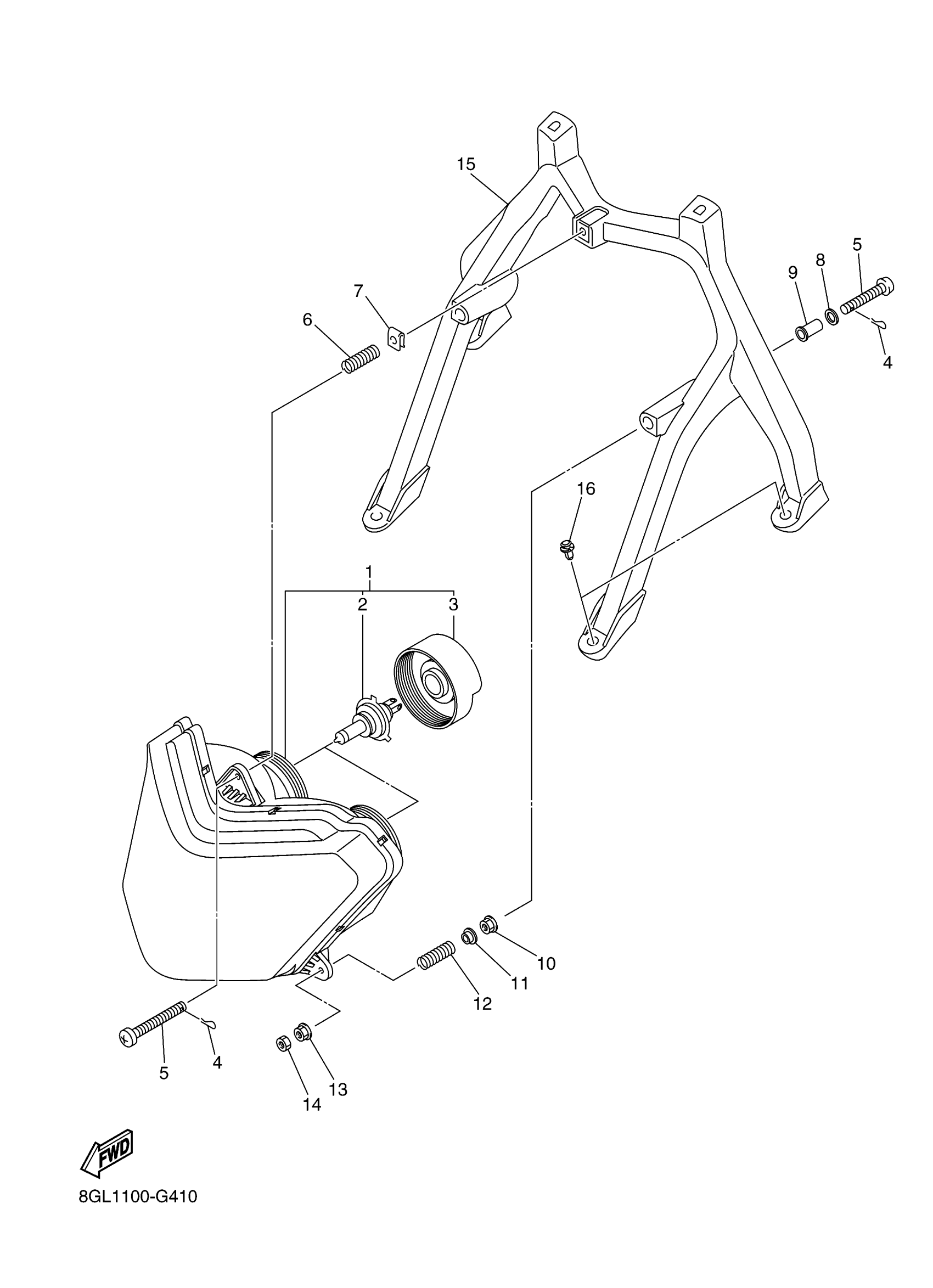

Yamaha FX10M53SAL (FX NYTRO SE 153) 8HU20 2011 HEADLIGHT Diagram

Description

Price

HEADLIGHT UNIT ASSY

8GK-84310-00-00

$265.99

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

COVER, SOCKET

8GK-84397-01-00

Unavailable

CLIP

8K4-84374-00-00

$8.49

SCREW, ADJUSTING

8M6-84331-00-00

$17.99

SPRING, ADJUST SCREW

8A5-84332-00-00

$9.99

NUT, SPRING

90183-050A9-00

$7.49

WASHER, PLATE(3GM)

90201-050T4-00

$4.77

COLLAR(6N6)

90387-05M04-00

Unavailable

NUT, FLANGE

95702-05500-00

$0.38

COLLAR

90387-05035-00

$7.49

SPRING (517 CLUTCH)

90501-12369-00

$9.49

NUT, FLANGE

95702-05500-00

$0.38

NUT, U

95617-05100-00

$9.49

STAY, HEADLIGHT 1

8GL-84118-00-00

$135.99

RIVET

90269-08005-00

Unavailable
