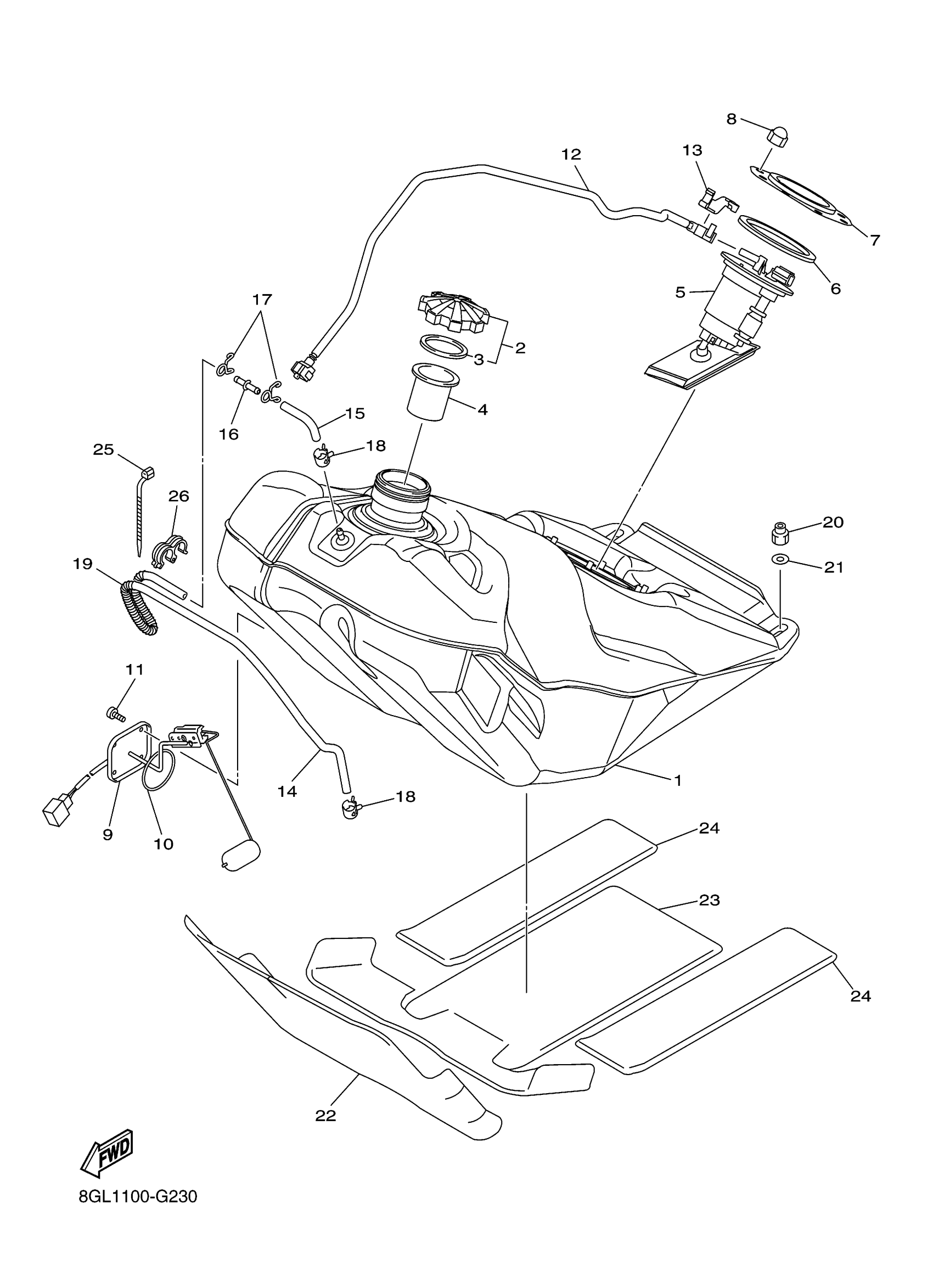

Yamaha FX10DL (FX NYTRO) 8JH1 2013 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8GL-24111-00-00
Unavailable
2
CAP ASSY
8FG-24610-01-00
$40.99
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
TUBE, FILLER
8FN-24114-00-00
Unavailable
5
FUEL PUMP COMP.
8GL-13907-04-00
Unavailable
6
O-RING
8FP-24486-00-00
$18.99
7
BRACKET, FUEL PUMP
8FP-24491-00-00
Unavailable
8
NUT (J17)
95380-06800-00
$8.49
9
SENDER UNIT ASSY, FUEL METER
8HK-85752-00-00
$92.99
10
O-RING (102)
93210-41041-00
$7.49
11
SCREW, BIND
98902-05008-00
$1.70
12
PIPE, FUEL 1
8GL-24311-01-00
Unavailable
13
CLAMP
90464-14004-00
$7.49
14
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
$29.99
15
PIPE, JOINT
8FR-24461-00-00
Unavailable
16
PIPE, JOINT
8H8-24376-00-00
Unavailable
17
CLIP (8L2)
90467-08017-00
Unavailable
18
CLIP (8A1)
90467-09026-00
Unavailable
19
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
20
NUT, NYLON
95717-08300-00
Unavailable
21
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
22
INSULATOR, FUEL TANK 1
8GL-2416F-01-00
Unavailable
23
PROTECTOR, FUEL TANK
8GL-24141-01-00
Unavailable
24
PROTECTOR, FUEL TANK
8GL-24141-11-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
Unavailable
26
CLAMP(4HM)
90464-13194-00
Unavailable
