- FX10DL (FX NYTRO) 8JH1 2013
ELECTRICAL 1

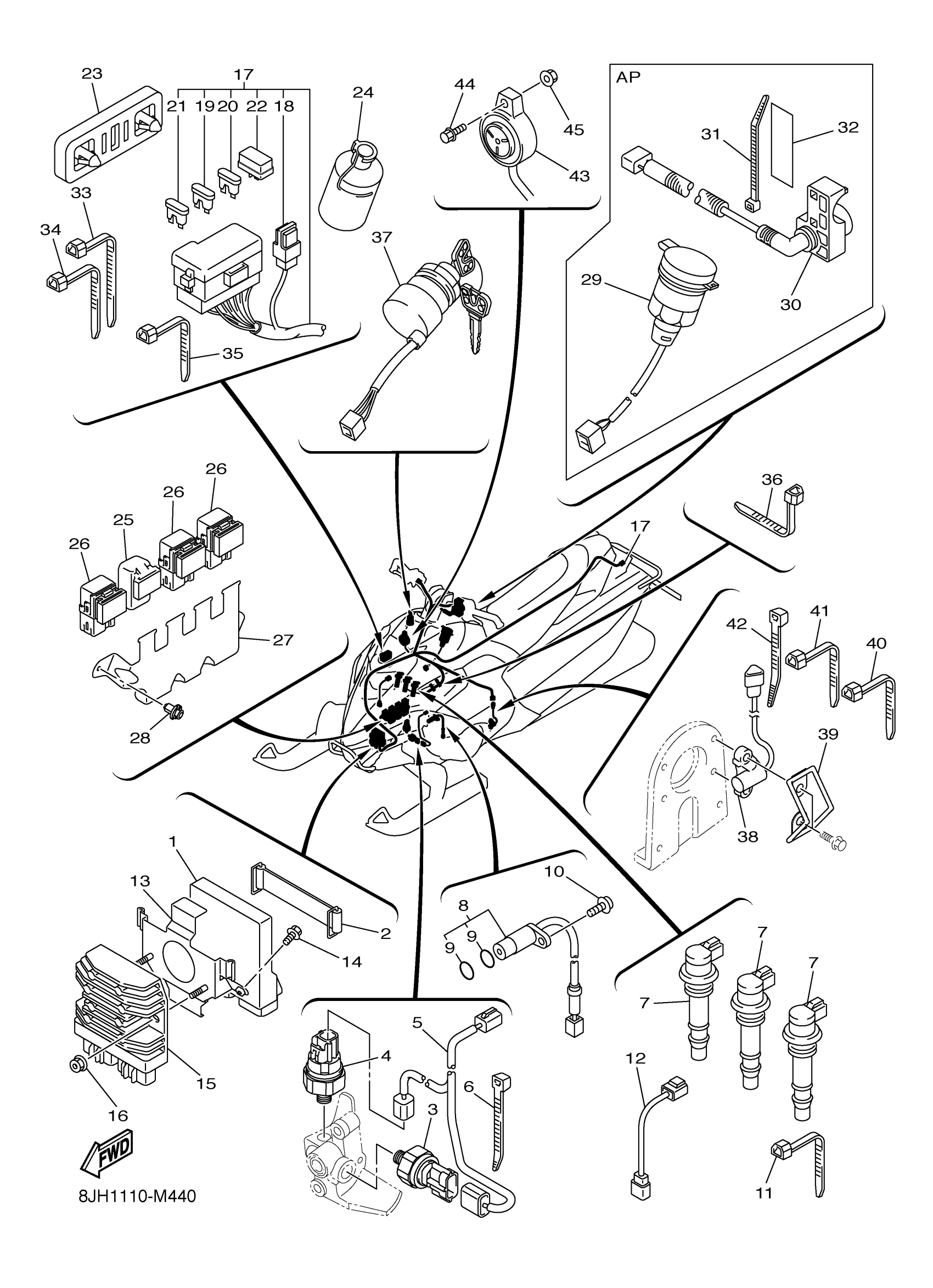

Yamaha FX10DL (FX NYTRO) 8JH1 2013 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8GL-8591A-20-00
Unavailable
2
BAND, BATTERY
2T4-82131-00-00
$8.99
3
SENDER, OIL PRESSU
8GN-83651-01-00
$251.99
4
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
5
WIRE, SUB-LEAD
8GL-82318-10-00
$74.99
6
CLAMP
5Y9-12491-00-00
$6.99
7
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
8
PICK-UP ASSY
8GL-81670-01-00
$140.99
9
O-RING 1
5VY-8A8E1-00-00
$6.99
10
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
$7.49
11
CLAMP(4FM)
90464-15195-00
$4.41
12
LEAD WIRE ASSY
8GL-81515-10-00
Unavailable
13
BRACKET, UNIT
8GL-85991-00-00
$23.99
14
BOLT, FLANGE
95022-06010-00
$5.60
15
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
16
NUT, U FLANGE
95604-06200-00
Unavailable
17
WIRE HARNESS ASSY
8HK-82590-30-00
Unavailable
18
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
19
. FUSE (10A)
67F-82151-40-00
Unavailable
20
FUSE
5JJ-82151-20-00
Unavailable
21
. FUSE (3A)
67F-82151-30-00
Unavailable
22
DIODE ASSY
4WA-81980-00-00
Unavailable
23
BRACKET
8FA-83614-00-00
Unavailable
24
COVER
8GL-8252U-00-00
Unavailable
25
RELAY ASSY
5DM-81950-01-00
Unavailable
26
RELAY ASSY (8HG-10
8HG-81951-10-00
Unavailable
27
HOLDER, RELAY
8GL-81952-00-00
Unavailable
28
RIVET
90269-08006-00
Unavailable
29
TERMINAL COMP.
8FP-8254B-00-00
Unavailable
30
TERMINAL COMP.
8HK-8254B-00-00
Unavailable
31
CLAMP(3XW)
90464-35132-00
Unavailable
32
DAMPER
8HF-84527-00-00
Unavailable
33
CLAMP(4FM)
90464-15195-00
$4.41
34
CLAMP(4FM)
90464-15195-00
$4.41
35
CLAMP
90464-13077-00
Unavailable
36
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
37
MAIN SWITCH ASSY
8HK-82510-00-00
Unavailable
38
SENSOR, SPEED
8GL-83755-00-00
Unavailable
39
COVER 2
8GC-2198G-00-00
Unavailable
40
CLAMP(4FM)
90464-15195-00
$4.41
41
CLAMP(3XW)
90464-35132-00
Unavailable
42
CLAMP(4FM)
90464-15195-00
$4.41
43
BUZZER
8GL-83383-00-00
Unavailable
44
SCREW, WITH WASHER
90159-05035-00
Unavailable
45
NUT, S/L FLANGE
95607-05200-00
Unavailable
