- FX10BL (FX NYTRO) 8GL7 2012
TRACK SUSPENSION 1

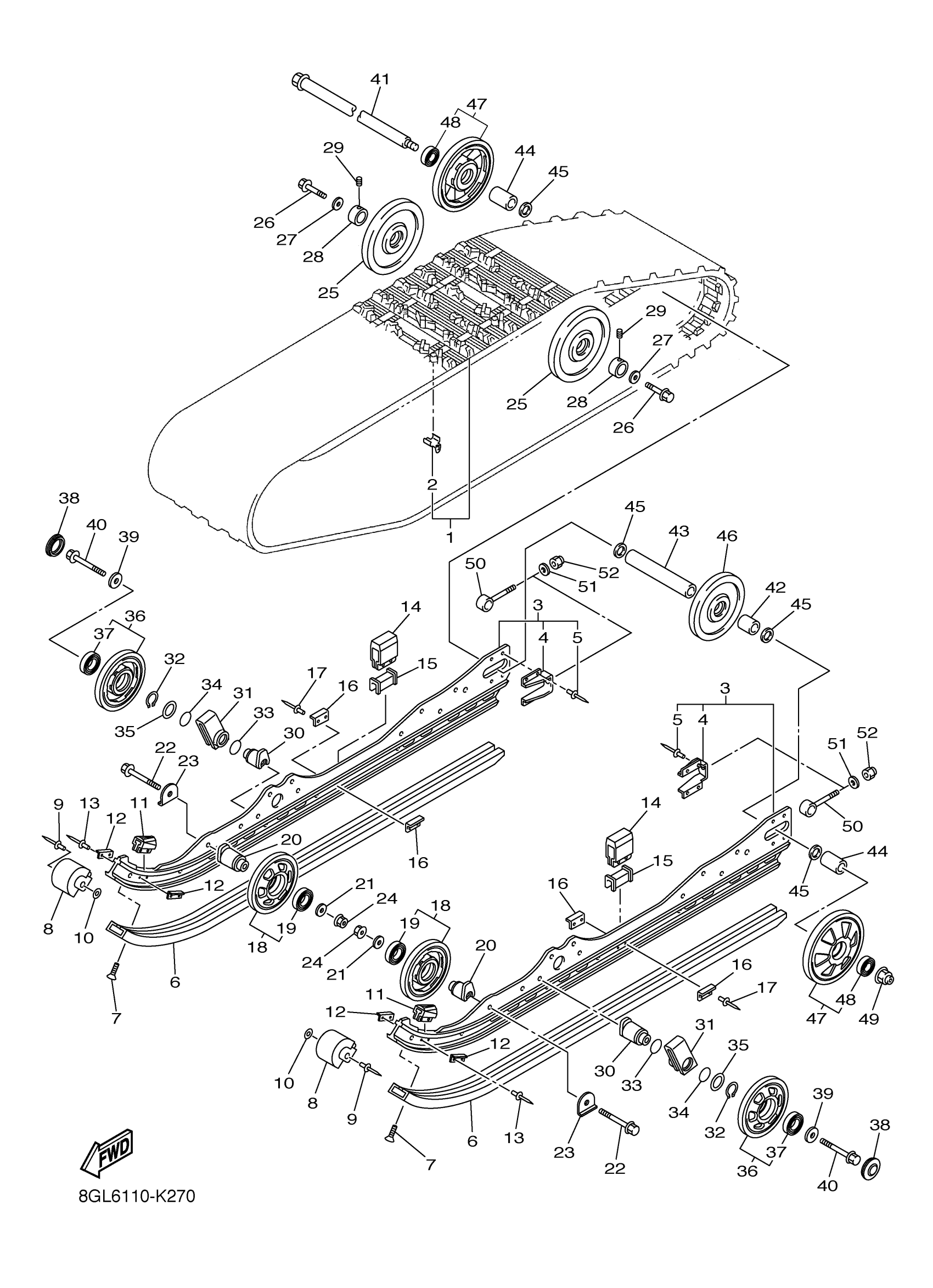

Yamaha FX10BL (FX NYTRO) 8GL7 2012 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8FA-47110-10-00
Unavailable
2
METAL, SLIDE
8FA-47115-09-00
Unavailable
3
FRAME, SLIDING
8GL-W4741-00-00
Unavailable
4
BRACKET
8DM-4741B-00-00
$45.99
5
RIVET
8V0-47468-00-00
$10.49
6
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
7
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
8
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
9
RIVET BLIND
90267-48194-00
$3.28
10
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
11
DAMPER 1
8ES-47456-00-00
$6.99
12
PLATE, DAMPER
8K2-47458-01-00
$4.77
13
RIVET, BLIND
90267-48199-00
$3.76
14
DAMPER 2
8GL-47457-00-00
Unavailable
15
SPACER
8GL-47573-00-00
Unavailable
16
PLATE, DAMPER
8AX-47458-00-00
Unavailable
17
RIVET, BLIND
90267-48199-00
$3.76
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
20
BRACKET 7
8ES-47419-00-00
Unavailable
21
WASHER, PLATE
90201-101U2-00
Unavailable
22
BOLT, FLANGE
90105-10233-00
Unavailable
23
WASHER, CLAW
90214-10003-00
Unavailable
24
NUT, S/L FLANGE
95602-10200-00
Unavailable
25
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
26
BOLT
90109-10032-00
Unavailable
27
WASHER, PLATE
90201-10064-00
Unavailable
28
COLLAR 1
8FS-47365-00-00
Unavailable
29
BOLT, SET (8K2)
90113-06039-00
Unavailable
30
BRACKET 7
8ES-47419-10-00
Unavailable
31
HOOK 1
8ES-47446-00-00
Unavailable
32
CIRCLIP(6U2)
93410-35M10-00
Unavailable
33
O-RING (16G)
93210-35537-00
Unavailable
34
O-RING (21A)
93210-34633-00
Unavailable
35
WASHER, PLATE
90201-35013-00
Unavailable
36
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
37
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
38
CAP, WHEEL
8HF-47317-00-00
Unavailable
39
WASHER, PLATE
90201-101U2-00
Unavailable
40
BOLT, FLANGE
90105-10233-00
Unavailable
41
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
42
COLLAR
90387-20015-00
Unavailable
43
COLLAR
90387-20016-00
Unavailable
44
COLLAR
90387-20019-00
Unavailable
45
WASHER, PLATE
90201-20022-00
Unavailable
46
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
47
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
48
BEARING(8AB)
93306-00444-00
Unavailable
49
NUT, U FLANGE
95602-14200-00
Unavailable
50
COLLAR 3
8DM-47479-00-00
Unavailable
51
WASHER, PLATE
92990-10600-00
Unavailable
52
NUT, NYLON
95707-10300-00
Unavailable
