2012 Yamaha FX Nytro (FX10BL) SKI Diagram

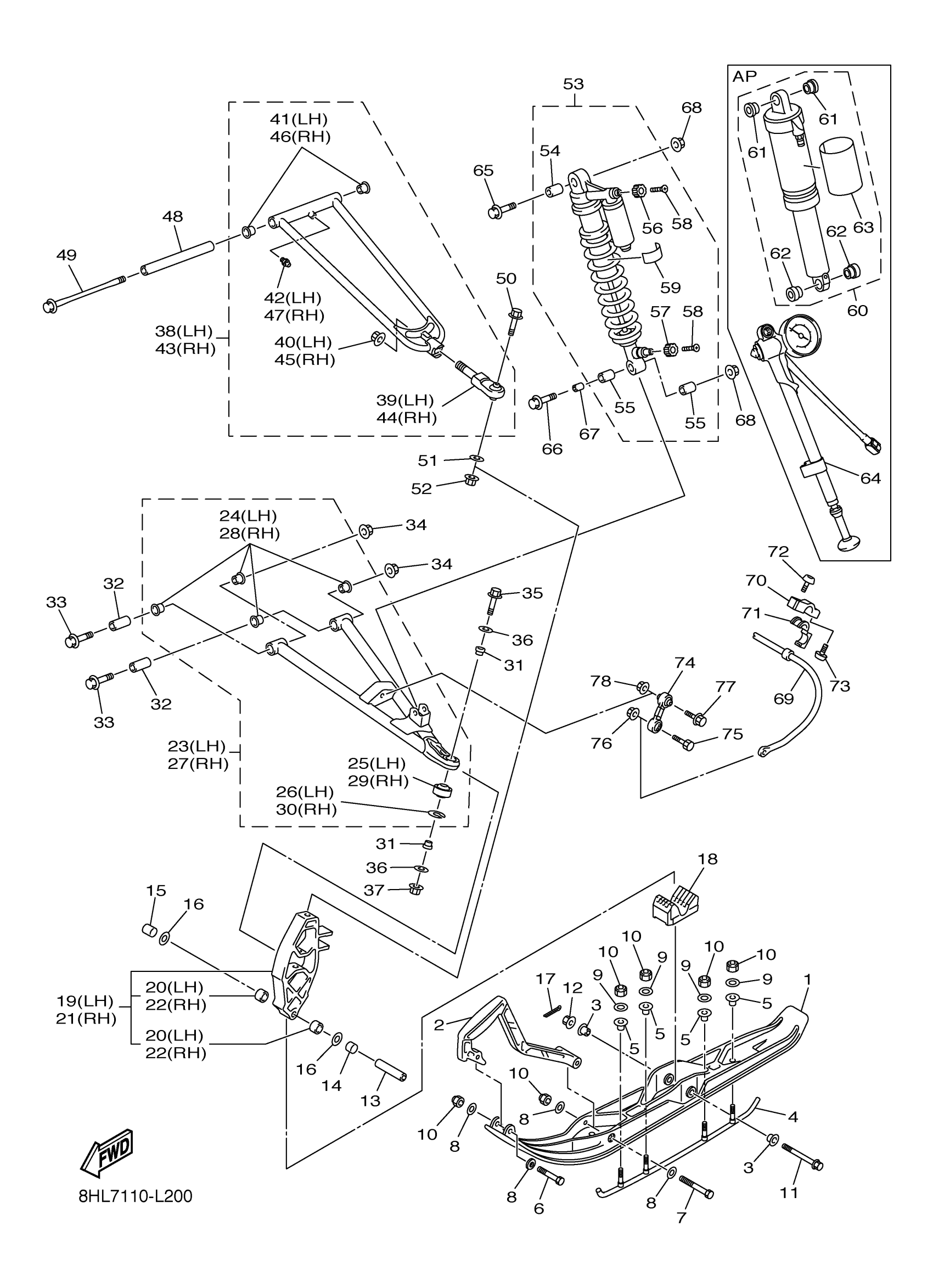

Find the part on the SKI diagram for your 2012 Yamaha FX Nytro (FX10BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI 1
8HV-F3711-00-00
2
REINFORCEMENT, HEAD
8HG-23712-20-00
3
. COLLAR 1
8EX-F3754-00-00
4
8HG RUNNER (2011 APEX)
SMA-8HG11-00-00
7
BOLT, REINFORCEMENT HEAD 2
8HG-F3756-10-00
9
WASHER 2
8HG-F3738-00-00
50
BOLT
91312-10045-00
53
ABSORBER ASSY 1
8GL-2376A-00-00
60
ABSORBER ASSY 1
8HB-2376A-00-00
63
LABEL,WARNING
8GT-F2259-00-00
64
FOX AIR PUMP
8FP-23703-FS-00
73
BOLT, BUTTON HEAD
92012-08016-00
78
NUT, SELF-LOCKING
95602-08200-00
