- FX10BL (FX NYTRO) 8GL7 2012
ELECTRICAL 1

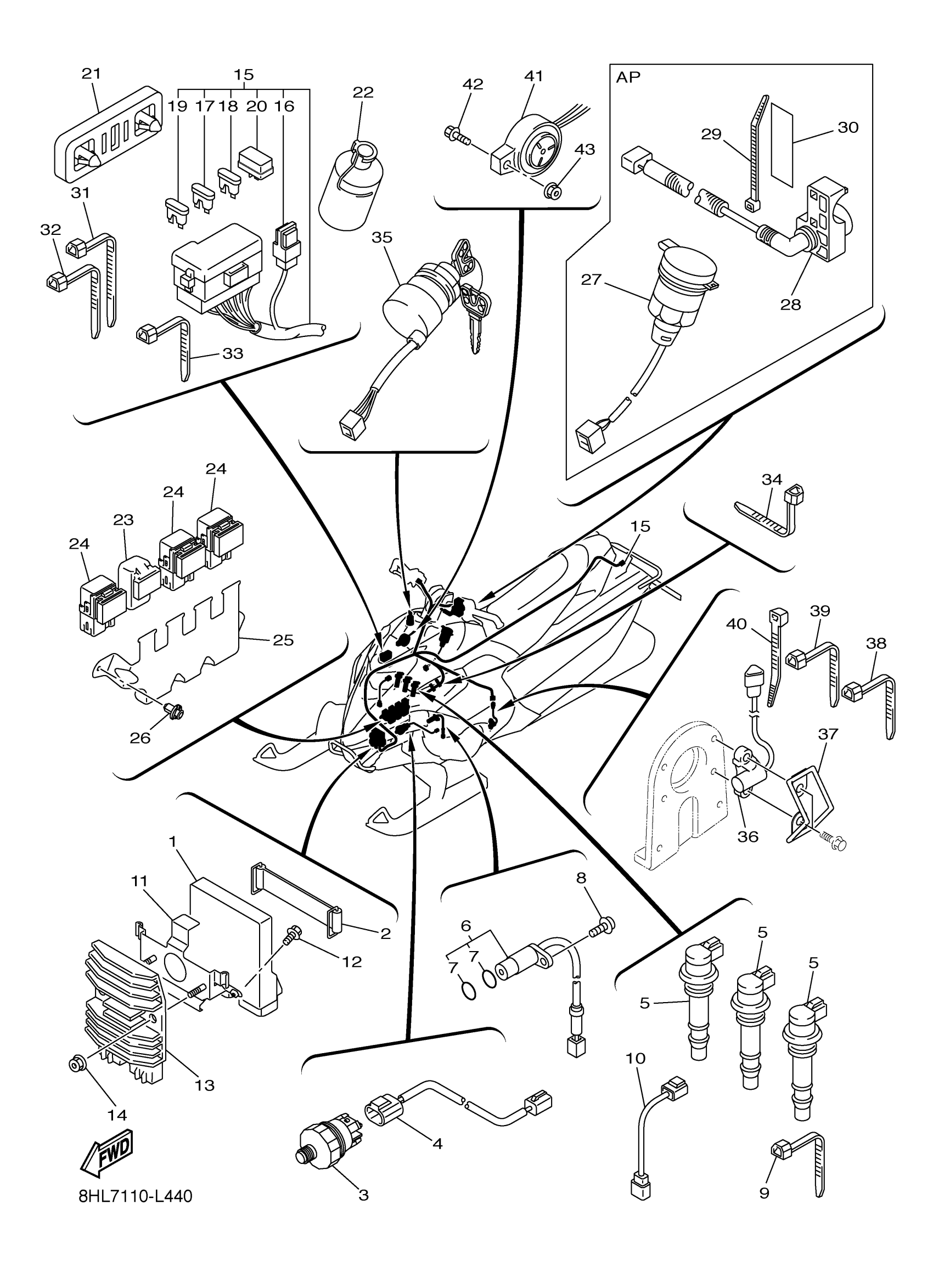

Yamaha FX10BL (FX NYTRO) 8GL7 2012 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8GL-8591A-10-00
Unavailable
2
BAND, BATTERY
2T4-82131-00-00
$8.99
3
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
4
WIRE, SUB-LEAD
8GL-82318-00-00
$26.99
5
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
6
PICK-UP ASSY
8GL-81670-01-00
$140.99
7
O-RING 1
5VY-8A8E1-00-00
$6.99
8
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
$7.49
9
CLAMP(4FM)
90464-15195-00
$4.41
10
LEAD WIRE ASSY
8GL-81515-00-00
Unavailable
11
BRACKET, UNIT
8GL-85991-00-00
$23.99
12
BOLT, FLANGE
95022-06010-00
$5.60
13
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
14
NUT, U FLANGE
95604-06200-00
$8.49
15
WIRE HARNESS ASSY
8HK-82590-20-00
Unavailable
16
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
17
. FUSE (10A)
67F-82151-40-00
Unavailable
18
FUSE
5JJ-82151-20-00
Unavailable
19
. FUSE (3A)
67F-82151-30-00
Unavailable
20
DIODE ASSY
4WA-81980-00-00
Unavailable
21
BRACKET
8FA-83614-00-00
Unavailable
22
COVER
8GL-8252U-00-00
Unavailable
23
RELAY ASSY
5DM-81950-01-00
Unavailable
24
RELAY ASSY (8HG-10
8HG-81951-10-00
Unavailable
25
HOLDER, RELAY
8GL-81952-00-00
Unavailable
26
RIVET
90269-08006-00
Unavailable
27
TERMINAL COMP.
8FP-8254B-00-00
Unavailable
28
TERMINAL COMP.
8HK-8254B-00-00
Unavailable
29
CLAMP(3XW)
90464-35132-00
Unavailable
30
DAMPER
8HF-84527-00-00
Unavailable
31
CLAMP(4FM)
90464-15195-00
$4.41
32
CLAMP(4FM)
90464-15195-00
$4.41
33
CLAMP
90464-13077-00
Unavailable
34
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
35
MAIN SWITCH ASSY
8HK-82510-00-00
Unavailable
36
SENSOR, SPEED
8GL-83755-00-00
Unavailable
37
COVER 2
8GC-2198G-00-00
Unavailable
38
CLAMP(4FM)
90464-15195-00
$4.41
39
CLAMP(3XW)
90464-35132-00
Unavailable
40
CLAMP(4FM)
90464-15195-00
$4.41
41
BUZZER
8GL-83383-00-00
Unavailable
42
SCREW, WITH WASHER
90159-05035-00
Unavailable
43
NUT, FLANGE
95702-05500-00
Unavailable
