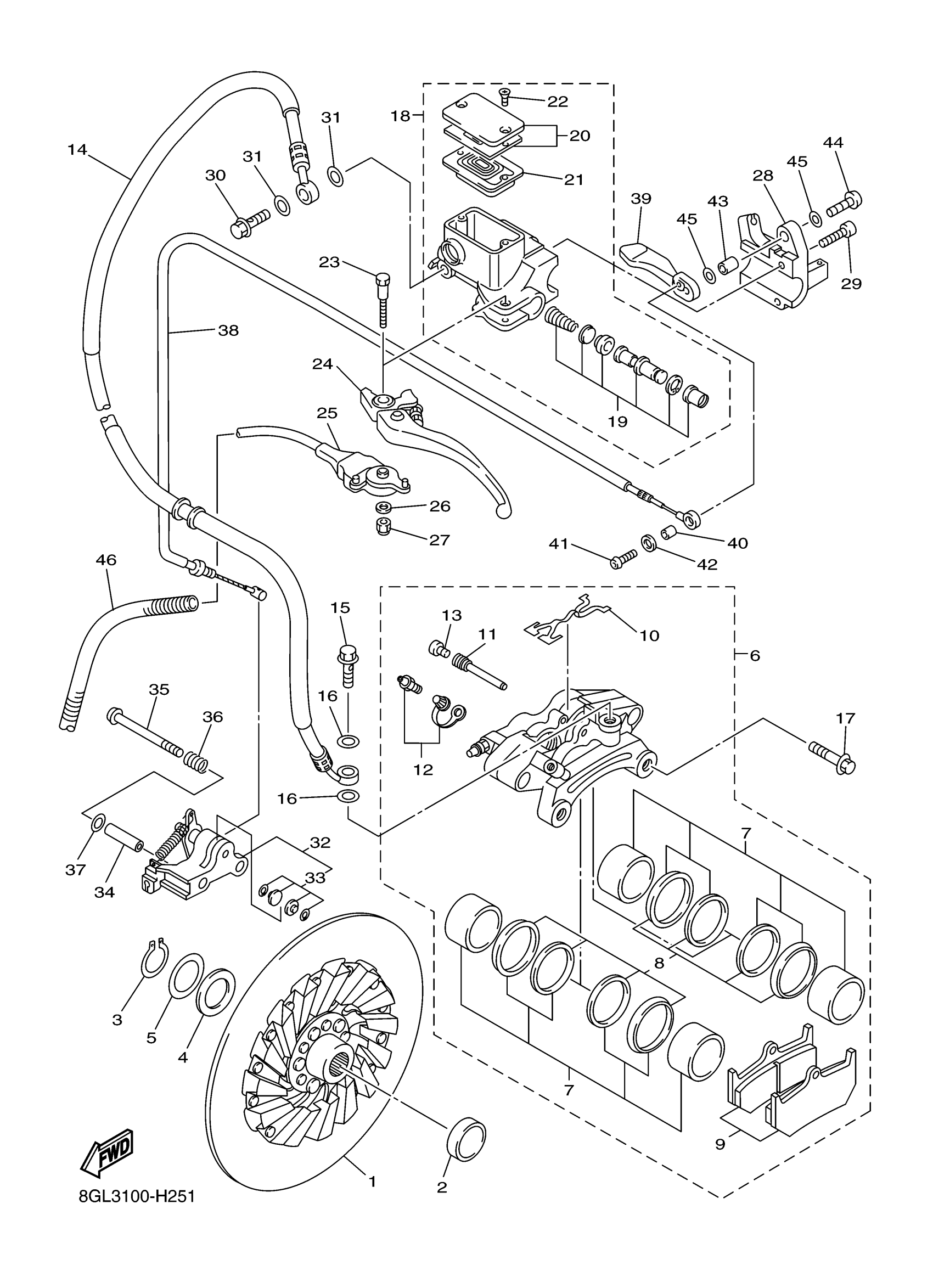

Find the part on the Brake diagram for your 2012 Yamaha FX Nytro (FX10BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FX Nytro (FX10BL) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSY

8GL-2581T-00-00

—

$223.94

In stock

2

COLLAR

90387-25021-00

1

$30.60

In stock

3

CIRCLIP(1EY)

99009-22400-00

1

$6.17

In stock

4

WASHER, PLATE (8L8)

90201-225A4-00

1
Out of stock

5

WASHER, PLATE (T=0.5)

90201-222F0-00

1

$5.89

In stock

6

CALIPER ASSY (LEFT)

8GL-2580T-00-00

—

$469.86

In stock

7

PISTON ASSY, CALIPER

8FU-W0057-00-00

—

$104.54

In stock

8

CALIPER SEAL KIT

3JD-W0047-10-00

—

$51.83

In stock

9

BRAKE PAD KIT 2

8FU-W0046-01-00

1

$60.58

In stock

10

SUPPORT, PAD

8FU-25919-00-00

—

$16.02

In stock

11

PIN, PAD

8FU-25924-00-00

—

$10.88

In stock

12

BLEED SCREW KIT

8CR-W0048-00-00

1
Out of stock

13

BOLT

8CR-25926-00-00

—
Out of stock

14

HOSE, BRAKE 1

8GL-25872-00-00

—

$84.48

In stock

15

BOLT, UNION(3GM)

90401-10159-00

1

$8.85

In stock

16

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

17

BOLT, FLANGE

90105-10096-00

—

$8.86

In stock

18

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

—

$255.42

In stock

19

CYLINDER KIT, MASTER

8CR-W0041-00-00

—

$47.42

In stock

20

RESERVOIR CAP SET

8CR-W2585-00-00

—

$35.75

In stock

21

DIAPHRAGM, RESERVOIR

55U-25854-00-00

—

$21.68

In stock

22

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

23

BOLT, LEVER

8CR-2589F-00-00

—

$6.06

In stock

24

LEVER 1

8DN-83912-00-00

—

$51.94

In stock

25

STOP SWITCH ASSY

8FP-82530-00-00

—

$44.88

In stock

26

WASHER, PLAIN

8CR-8398X-00-00

—

$8.77

In stock

27

NUT, NYLON

95707-05300-00

—

$2.74

In stock

28

BRACKET, MASTER CYLINDER

8FA-25867-00-00

—

$28.51

In stock

29

BOLT

5YU-26332-00-00

—
Out of stock

30

BOLT, UNION

90401-10015-00

—

$9.89

In stock

31

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

32

PARKING BRAKE COMP.

8FU-25970-01-00

—

$196.72

In stock

33

PARKING BRAKE PAD KIT

8FA-W0045-00-00

—

$48.30

In stock

34

COLLAR

90387-06058-00

—

$5.89

In stock

35

BOLT

90111-06042-00

—

$2.00

In stock

36

SPRING, COMPRESSION

90501-120A0-00

—

$6.32

In stock

37

WASHER 6474553400

90201-12161-00

—

$4.67

In stock

38

CABLE, BRAKE

8GL-26351-10-00

—

$52.71

In stock

39

LEVER 2

8FA-83922-00-00

—

$29.97

In stock

40

COLLAR

90387-06043-00

—

$6.68

In stock

41

BOLT, BUTTON HEAD

92012-06014-00

—
Out of stock

42

WASHER, PLATE

90201-06089-00

—

$2.69

In stock

43

COLLAR

90387-081M9-00

1

$1.89

In stock

44

BOLT,HEX. SOCKET BUTTON

90111-08054-00

—

$1.54

In stock

45

WASHER PLATE 141181390000

90201-08085-00

—

$6.38

In stock

46

TUBE, CORD

8FP-82351-00-00

—

$9.66

In stock
