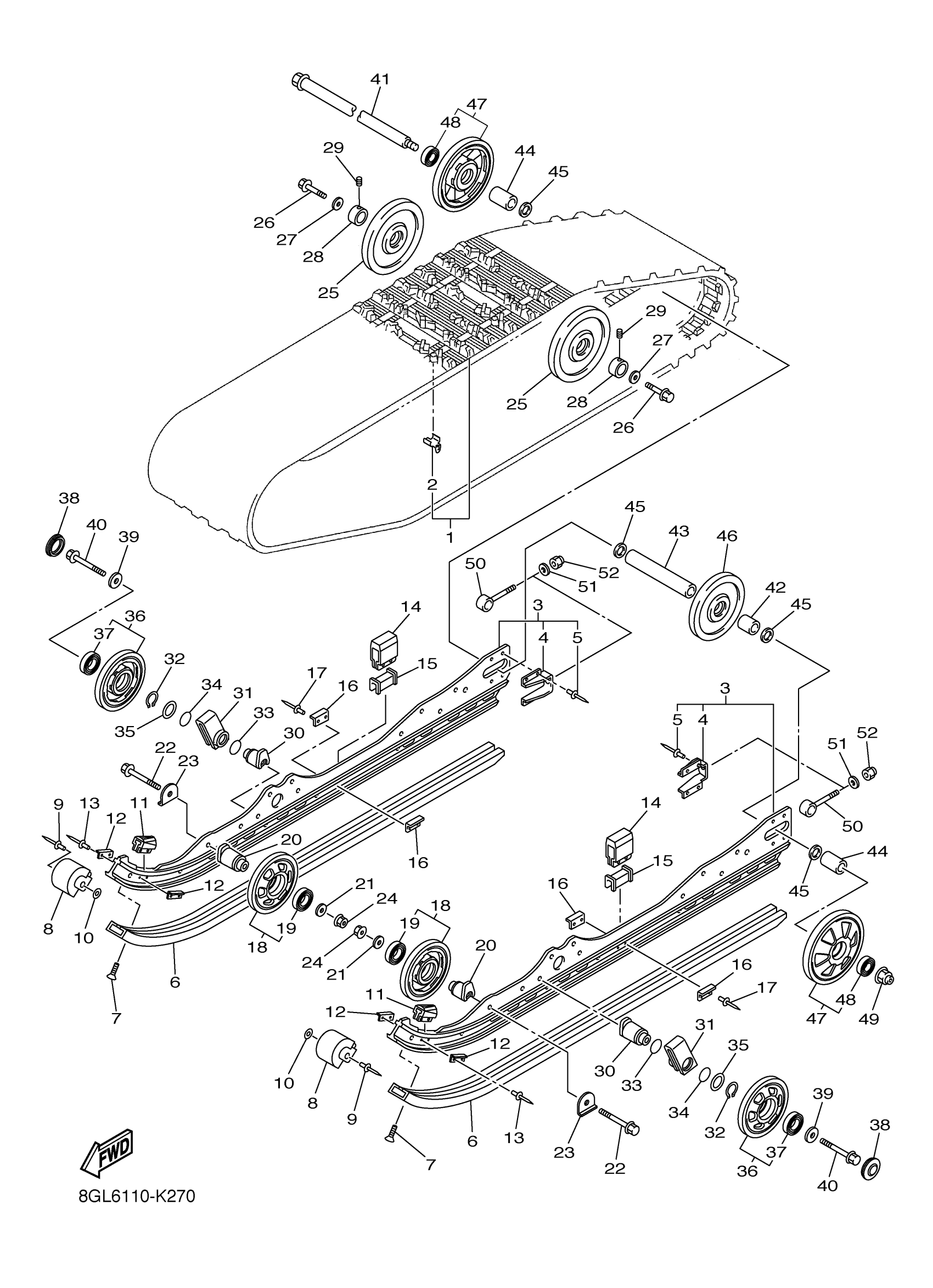

Yamaha FX10AW (FX NYTRO) 8GL6 2011 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8FA-47110-10-00

Unavailable

2

METAL, SLIDE

8FA-47115-09-00

Unavailable

3

FRAME, SLIDING

8GL-W4741-00-00

Unavailable

4

BRACKET

8DM-4741B-00-00

$45.99

5

RIVET

8V0-47468-00-00

$10.49

6

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

Unavailable

7

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

8

RUNNER, SLIDING 2

8GL-47422-00-00

$30.99

9

RIVET BLIND

90267-48194-00

$3.28

10

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

11

DAMPER 1

8ES-47456-00-00

$6.99

12

PLATE, DAMPER

8K2-47458-01-00

$4.77

13

RIVET, BLIND

90267-48199-00

$3.76

14

DAMPER 2

8GL-47457-00-00

Unavailable

15

SPACER

8GL-47573-00-00

Unavailable

16

PLATE, DAMPER

8AX-47458-00-00

Unavailable

17

RIVET, BLIND

90267-48199-00

$3.76

18

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

19

BRG,R-B 6005 47MM 85G KY

93306-00507-00

Unavailable

20

BRACKET 7

8ES-47419-00-00

Unavailable

21

WASHER, PLATE

90201-101U2-00

Unavailable

22

BOLT, FLANGE

90105-10233-00

Unavailable

23

WASHER, CLAW

90214-10003-00

Unavailable

24

NUT, S/L FLANGE

95602-10200-00

Unavailable

25

GUIDE WHEEL ASSY

8CR-47550-00-00

Unavailable

26

BOLT

90109-10032-00

Unavailable

27

WASHER, PLATE

90201-10064-00

Unavailable

28

COLLAR 1

8FS-47365-00-00

Unavailable

29

BOLT, SET (8K2)

90113-06039-00

Unavailable

30

BRACKET 7

8ES-47419-10-00

Unavailable

31

HOOK 1

8ES-47446-00-00

Unavailable

32

CIRCLIP(6U2)

93410-35M10-00

Unavailable

33

O-RING (16G)

93210-35537-00

Unavailable

34

O-RING (21A)

93210-34633-00

Unavailable

35

WASHER, PLATE

90201-35013-00

Unavailable

36

WHEEL BLK 130MM

SMA-8FP38-01-BK

Unavailable

37

BRG,R-B 6005 47MM 85G KY

93306-00507-00

Unavailable

38

CAP, WHEEL

8HF-47317-00-00

Unavailable

39

WASHER, PLATE

90201-101U2-00

Unavailable

40

BOLT, FLANGE

90105-10233-00

Unavailable

41

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

42

COLLAR

90387-20015-00

Unavailable

43

COLLAR

90387-20016-00

Unavailable

44

COLLAR

90387-20019-00

Unavailable

45

WASHER, PLATE

90201-20022-00

Unavailable

46

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

47

REAR WHEEL BLK 178MM

SMA-8FP38-02-BK

Unavailable

48

BEARING(8AB)

93306-00444-00

Unavailable

49

NUT, U FLANGE

95602-14200-00

Unavailable

50

COLLAR 3

8DM-47479-00-00

Unavailable

51

WASHER, PLATE

92990-10600-00

Unavailable

52

NUT, NYLON

95707-10300-00

Unavailable
