- FX10AW (FX NYTRO) 8GL6 2011
SECONDARY SHEAVE

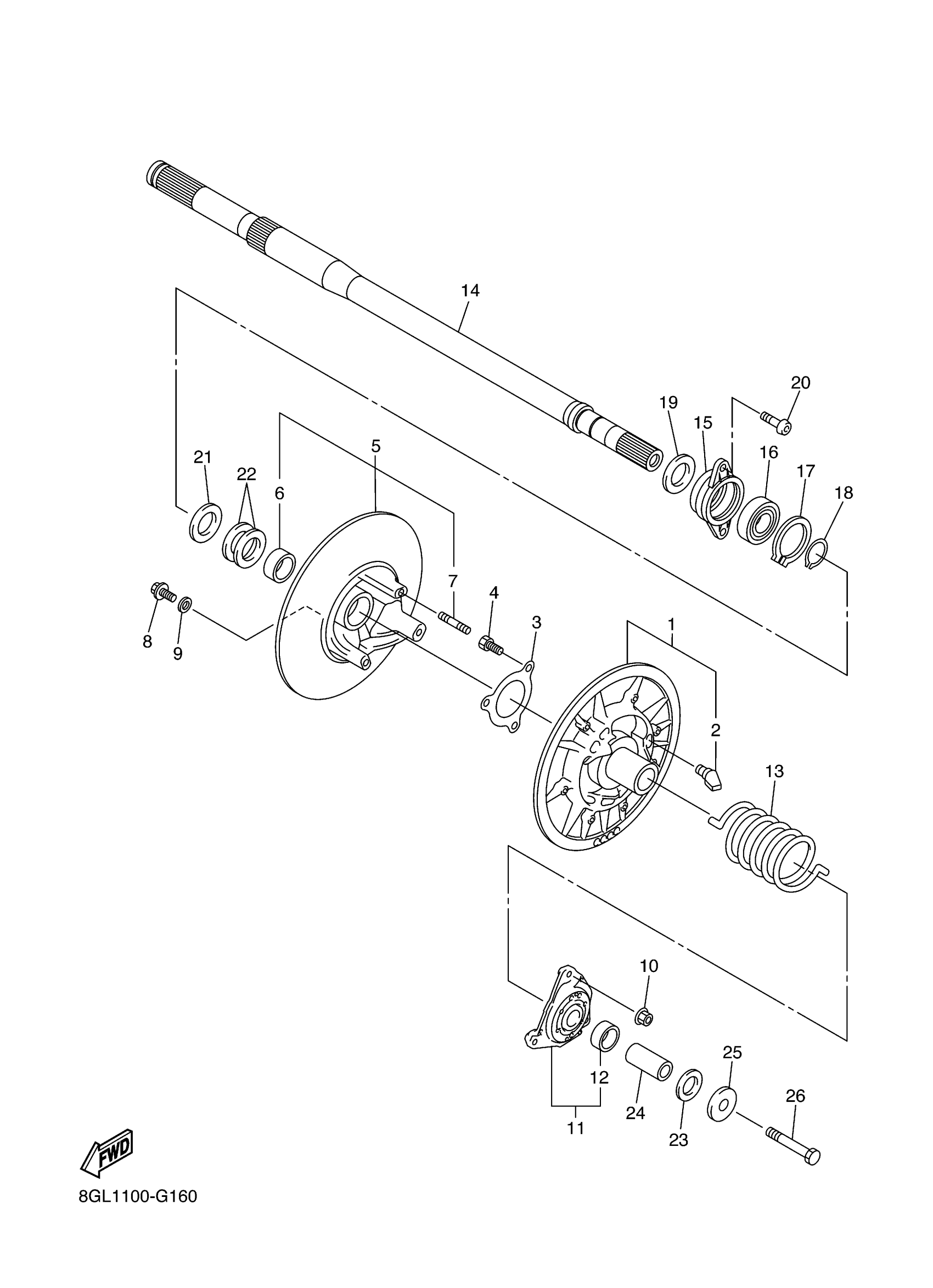

Yamaha FX10AW (FX NYTRO) 8GL6 2011 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
8GL-17660-30-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
STOPPER, HOLDER
8BV-17656-00-00
$22.99
4
SCREW, BINDING
98907-06016-00
$9.49
5
SECONDARY SLIDING SHEAVE
8BU-17670-30-00
$239.99
6
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
7
BOLT, STUD 3
95617-08630-00
$4.99
8
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
9
WASHER, PLATE (371)
90201-06431-00
$5.60
9
WASHER, PLATE (22K)
90201-061H1-00
$4.72
10
NUT(8BN)
90179-08655-00
$10.49
11
SEAT SPRING SET
8BV-17604-31-00
$159.99
12
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
13
SPRING, TORSION
90508-60018-00
$57.99
14
SHAFT, SECONDARY
8GL-17681-00-00
$363.99
15
HOUSING, BEARING
8GL-47631-00-00
Unavailable
16
BEARING
93306-20656-00
Unavailable
17
CIRCLIP(MF1)
99009-62500-00
Unavailable
18
CIRCLIP
99009-28400-00
Unavailable
19
WASHER, PLATE(89A)
90201-284P7-00
Unavailable
20
SCREW
90149-08034-00
Unavailable
21
WASHER, PLATE(89A)
90201-284P7-00
Unavailable
22
WASHER, PLATE(1YW)
90201-286K9-00
Unavailable
23
WASHER, PLATE (8R6)
90201-252F1-00
Unavailable
23
WASHER, PLATE (888)
90201-25527-00
Unavailable
24
COLLAR
90387-18014-00
Unavailable
25
WASHER, PLATE
90201-18020-00
Unavailable
26
BOLT, SECONDARY
8GL-17698-00-00
Unavailable
