Description

Price

1

JOINT

8GL-13595-00-00

$18.99

2

HOSE CLAMP ASSY

90450-60004-00

$16.99

3

SILENCER, INTAKE 1

8GL-14431-00-00

Unavailable

4

SILENCER, INTAKE 2

8GL-W1444-10-00

Unavailable

5

PLATE, ELEMENT

8GL-14472-00-00

Unavailable

6

ELEMENT, AIR CLEANER

8GL-14451-00-00

$9.99

7

HOOK

8GL-14436-00-00

$2.87

8

DAMPER 1

8GL-14425-00-00

$2.39

9

SEAL

8GL-14452-00-00

Unavailable

10

PIPE

8GL-14419-00-00

Unavailable

11

JOINT, AIR CLEANER 1

8GL-14453-00-00

$30.99

12

GROMMET

90480-14198-00

$9.49

13

HOSE CLAMP ASSY

90450-56007-00

$13.99

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

15

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

16

COLLER (6F5)

90387-08M45-00

Unavailable

17

CLIP(34X)

90467-22097-00

Unavailable

18

PIPE, OIL TANK BREATHER

8GL-21745-00-00

Unavailable

19

HOLDER, GUIDE

8GL-14459-00-00

Unavailable

20

JOINT, AIR CLEANER 2

8GL-14463-00-00

Unavailable

21

JOINT

8GL-14454-00-00

Unavailable

22

BOLT, WITH WASHER

90119-06231-00

Unavailable

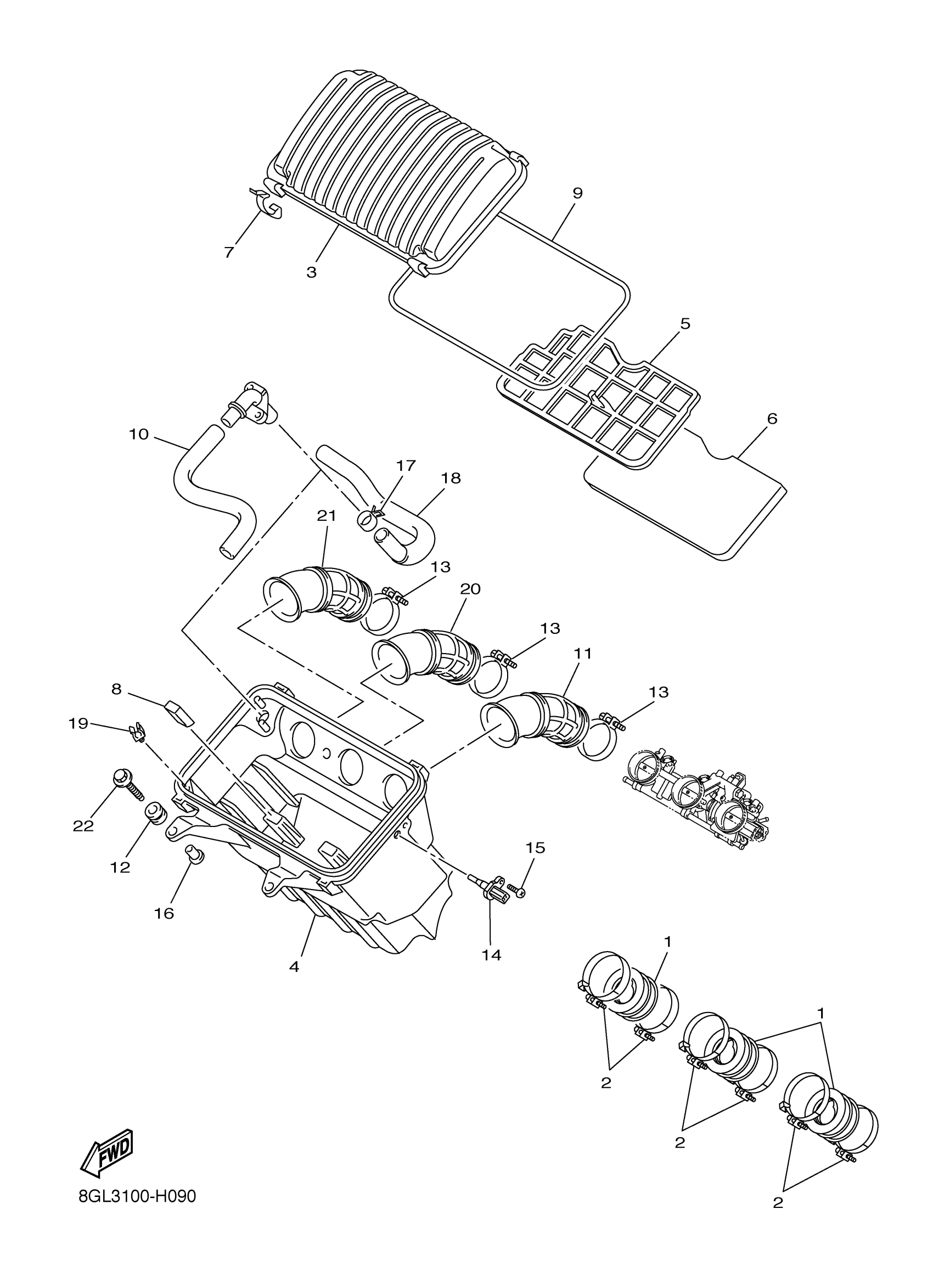

Yamaha FX10AW (FX NYTRO) 8GL6 2011 INTAKE Diagram

JOINT

HOSE CLAMP ASSY

SILENCER, INTAKE 1

SILENCER, INTAKE 2

PLATE, ELEMENT

ELEMENT, AIR CLEANER

HOOK

DAMPER 1

SEAL

PIPE

JOINT, AIR CLEANER 1

GROMMET

HOSE CLAMP ASSY

SENSOR, AIR TEMPERATURE

SCREW, PANHEAD TAPPING

COLLER (6F5)

CLIP(34X)

PIPE, OIL TANK BREATHER

HOLDER, GUIDE

JOINT, AIR CLEANER 2

JOINT

BOLT, WITH WASHER
