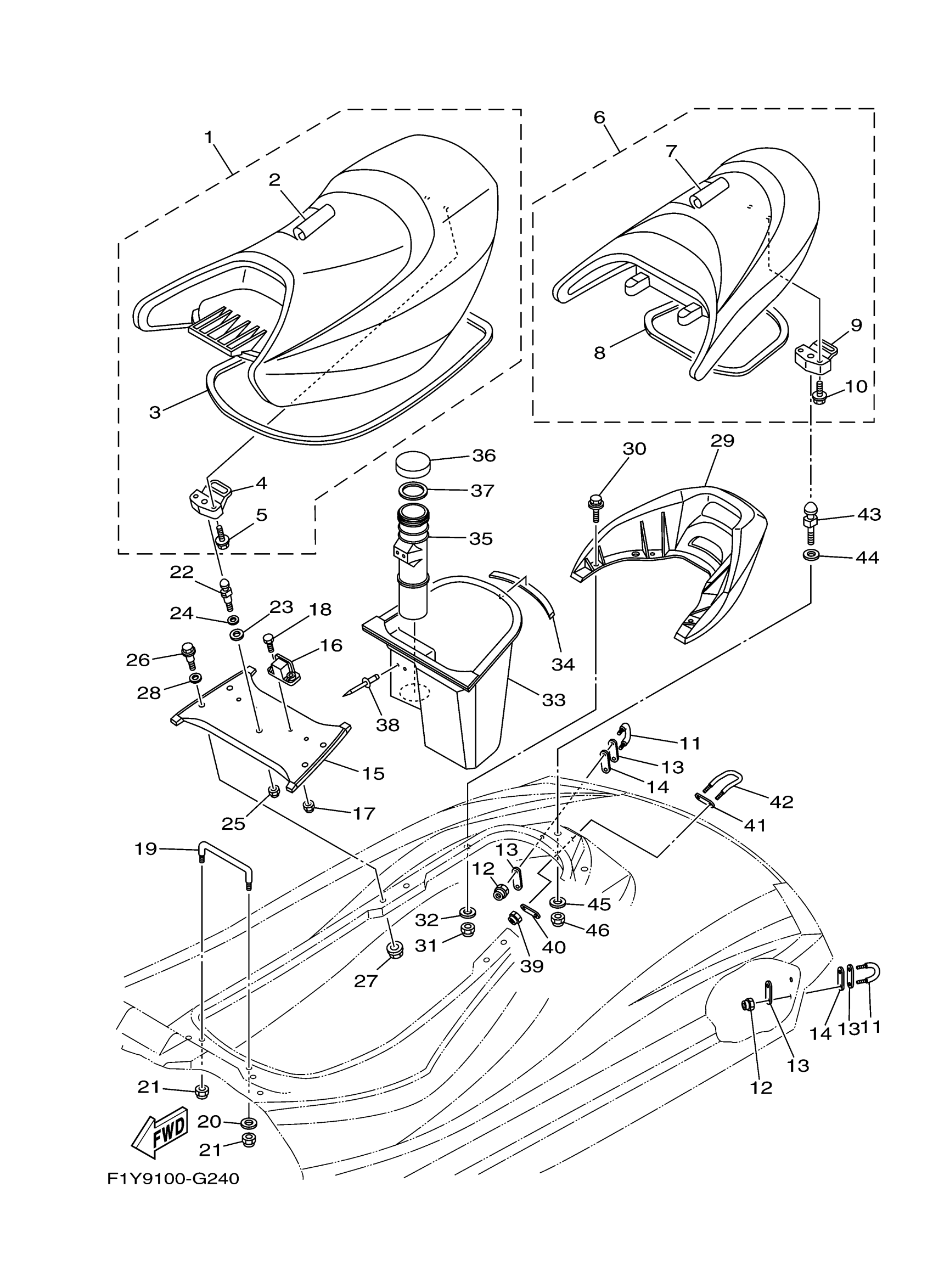

Yamaha FX1000G (WaveRunner FX) F1YA 2008 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F1S-U371A-30-00

Unavailable

2

.. COVER, SEAT 1

F1S-U371B-30-00

Unavailable

3

. PACKING

F1B-U2664-00-00

Unavailable

4

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F1B-U372A-B0-00

Unavailable

7

. COVER, SEAT

F1B-U372B-B0-00

Unavailable

8

. PACKING 5

F1B-U266D-00-00

Unavailable

9

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STERN EYE (BLACK)

F1K-61628-00-00

$38.79

12

NUT, NYLON (6J8)

95780-08300-00

$11.48

13

PLATE A

GP7-U4953-10-00

$3.65

14

PACKING

F1B-U1653-03-00

$2.00

15

BEAM, DECK 1

F1B-U8952-01-00

$225.36

16

STAY,SEAT 2

GU2-6378D-02-00

$19.39

17

NUT, NYLON

9572R-06300-00

$2.93

18

BOLT

90101-069U0-00

$1.34

19

STAY, SEAT 1

F0X-6378C-00-00

$50.73

20

WASHER, PLATE

90201-099U3-00

$2.30

21

NUT, NYLON (6J8)

95780-08300-00

$11.48

22

PIN

F1B-U3774-00-00

$22.37

23

PACKING 1

F0X-6375E-00-00

$3.58

24

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

25

NUT, NYLON

9572R-10300-00

$3.52

26

BOLT

F1B-U2624-00-00

Unavailable

27

NUT, SELF-LOCKING

90185-08011-00

Unavailable

28

WASHER

9299R-10200-00

$1.72

29

GRIP, HAND (YAMAHA BLACK)

F1B-U271B-00-00

$362.67

30

BOLT, WITH WASHER

90119-08907-00

$5.17

31

NUT, NYLON (6J8)

95780-08300-00

$11.48

32

WASHER

9299R-08200-00

Unavailable

33

LOCKER, UNDER 2

F1B-U4742-01-00

Unavailable

34

.. PACKING,6

F0X-U266E-01-00

$15.66

35

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

36

. CAP, CASE

EW2-U5912-01-00

Unavailable

37

PACKING, CASE

EW2-U5913-01-00

Unavailable

38

RIVET, 1

F3J-U516R-00-00

$2.52

39

NUT, NYLON (6J8)

95780-08300-00

$11.48

40

PLATE A

GP7-U4953-10-00

$3.65

41

PLATE A

GP7-U4953-10-00

$3.65

42

SKI TOWS

F1B-U1629-00-00

$26.54

43

PIN

GH1-U3774-00-00

$20.81

44

WASHER, PLATE

90201-109U6-00

$3.43

45

WASHER

9299R-10200-00

$1.72

46

NUT, NYLON

9572R-10300-00

$3.52
