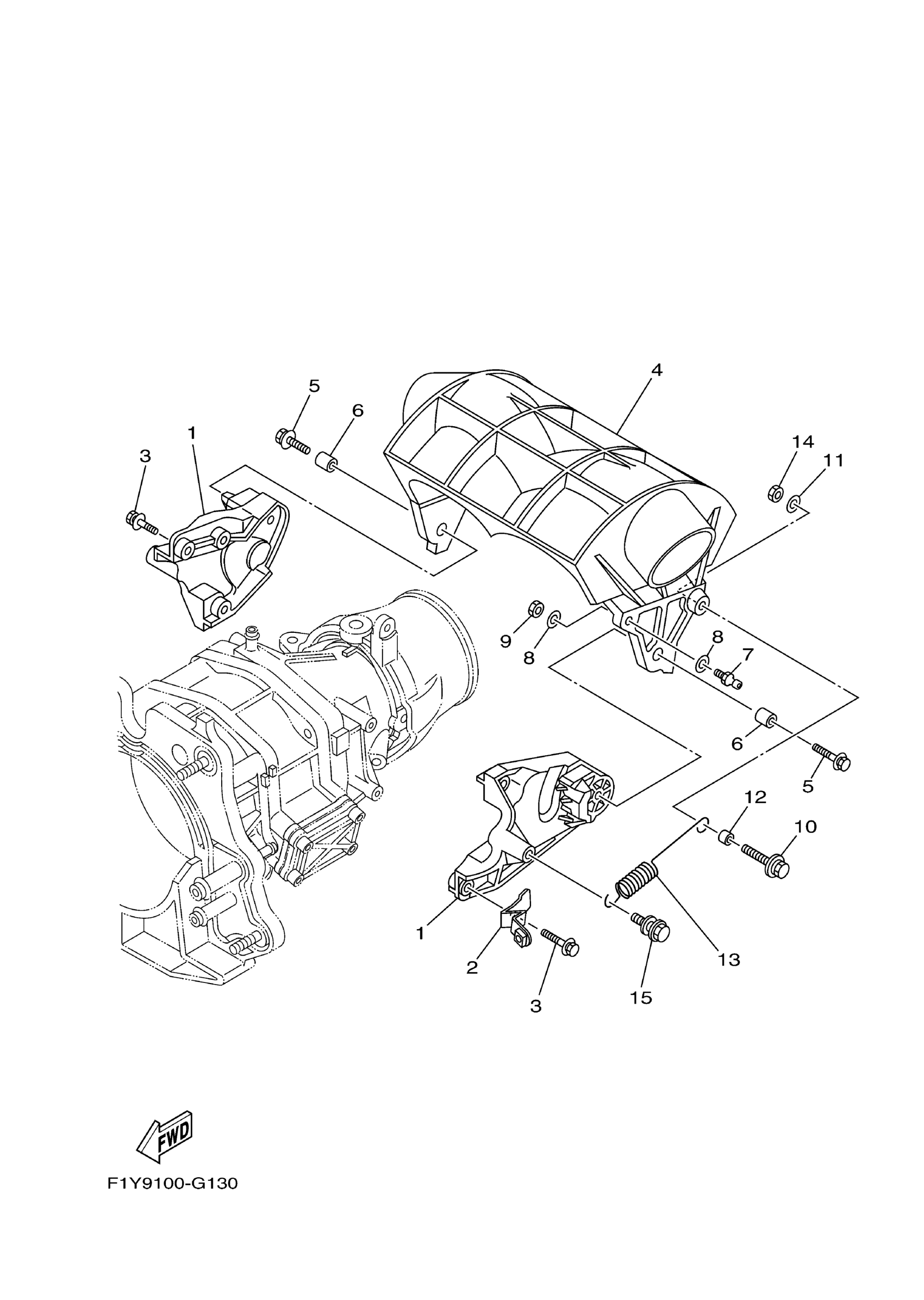

Yamaha FX1000G (WaveRunner FX) F1YA 2008 JET UNIT 3 Diagram

#

Description

Price

1

BRACKET 1

6S5-51341-00-94

Unavailable

2

BRACKET 2

6B6-51342-00-00

Unavailable

3

BOLT, WITH WASHER

90119-06892-00

Unavailable

4

GATE, REVERSE

6S5-R1314-02-00

Unavailable

5

BOLT, WITH WASHER

90119-08841-00

Unavailable

6

COLLAR

90387-08M30-00

Unavailable

7

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

8

WASHER, PLATE

90201-06020-00

$9.49

9

NUT

9538R-06600-00

Unavailable

10

BOLT, WITH WASHER

90119-069UX-00

Unavailable

11

WASHER, PLATE

90201-06020-00

$9.49

12

COLLAR(6R8)

90387-06M30-00

Unavailable

13

SPRING, RETAINER

6S5-R2358-00-00

Unavailable

14

NUT

9538R-06600-00

Unavailable

15

BOLT, FLANGE W/WASHER

6S5-45241-A0-00

Unavailable
