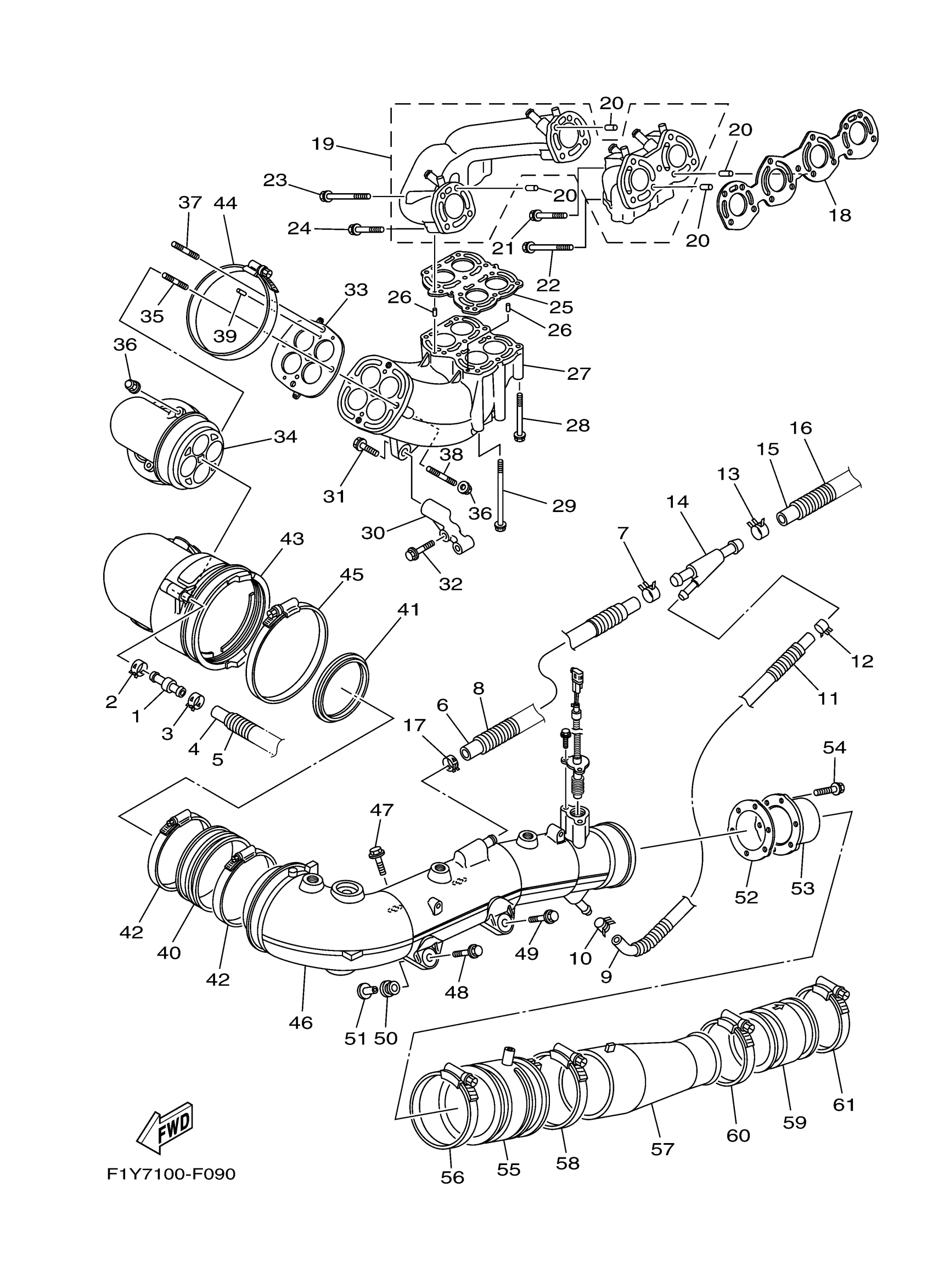

Yamaha FX1000G (WaveRunner FX) F1YA 2008 EXHAUST 1 Diagram

#

Description
Price

1

JOINT, HOSE 4

60E-12594-00-00

$4.09

2

CLIP

90467-120A0-00

$4.55

3

CLIP

90467-130A0-00

$2.73

4

HOSE

90445-14M03-00

Unavailable

5

HOSE(GK5)

90446-20M65-00

$6.02

6

HOSE (L430)

90445-20003-00

Unavailable

7

CLIP

90467-200A0-00

$7.40

8

HOSE, WITH SPRING (L380)

90447-22008-00

$5.91

9

HOSE, 4

60E-1244G-00-00

$16.99

10

CLIP

90467-130A0-00

$2.73

11

HOSE, WITH SPRING (L205)

90447-15001-00

$3.64

12

CLIP

90467-150A0-00

$3.33

13

CLIP

90467-200A0-00

$7.40

14

JOINT, HOSE 1

60E-12581-00-00

$15.49

15

HOSE (L720)

90445-20004-00

Unavailable

16

HOSE, WITH SPRING (L610)

90447-22012-00

$7.27

17

CLIP

90467-200A0-00

$7.40

18

GASKET, EXHAUST PIPE

60E-14613-01-00

$56.87

19

EXHAUST PIPE ASSY 1

60E-14610-00-94

Unavailable

20

PIN, DOWEL

93608-16M16-00

$2.41

21

BOLT, WITH WASHER

90119-08029-00

$3.70

22

BOLT, WITH WASHER

90119-08034-00

$3.33

23

BOLT, WITH WASHER

90119-08029-00

$3.70

24

BOLT, WITH WASHER

90119-08M66-00

$3.36

25

GASKET, MUFFLER DAMPER 1

60E-14739-02-00

$56.87

26

PIN, DOWEL (614)

93606-12019-00

Unavailable

27

PIPE, EXHAUST 3

60E-14631-00-94

$778.77

28

BOLT, WITH WASHER

90119-08036-00

$4.09

29

BOLT, WITH WASHER

90119-08031-00

$5.00

30

STAY, MUFFLER 1

60E-14771-00-94

$63.62

31

BOLT, WITH WASHER

90119-10013-00

$4.81

32

BOLT, WITH WASHER

90119-08043-00

$4.55

33

GASKET, MUFFLER DAMPER 2

60E-14749-02-00

$56.05

34

RING, JOINT

60E-14712-02-94

$424.23

35

BOLT, STUD

90116-10016-00

$10.99

36

NUT

90179-10M35-00

Unavailable

37

BOLT, STUD

90116-10017-00

$11.35

38

BOLT, STUD

90116-10018-00

$15.49

39

PIN, DOWEL (614)

93606-12019-00

Unavailable

40

JOINT, EXHAUST 2

60E-14625-00-00

$43.92

41

. SEAL, EXHAUST

60E-14642-00-00

$40.22

42

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

43

JOINT, EXHAUST 1

60E-14615-00-00

$118.17

44

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

45

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

46

MUFFLER 2

60E-14721-10-94

$887.86

47

BOLT, WITH WASHER

90119-10013-00

$4.81

48

BOLT, WITH WASHER

90119-10011-00

$5.91

49

BOLT, WITH WASHER

90119-10017-00

$6.36

50

GROMMET(62L)

90480-21M63-00

Unavailable

51

COLLAR

90387-11008-00

$19.68

52

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

53

PIPE, TAIL

60E-14784-10-94

Unavailable

54

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

55

PIPE 2

60E-1475E-00-00

$93.92

56

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

57

PIPE, OUTLET

60E-14752-10-94

$199.98

58

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

59

PIPE 3

6B6-1475F-00-00

$55.99

60

CLAMP, HOSE

90460-90M11-00

$42.60

61

CLAMP, HOSE

90460-90M11-00

$42.60
