- FX1000G (WaveRunner FX) F1YA 2008
ENGINE HATCH 2

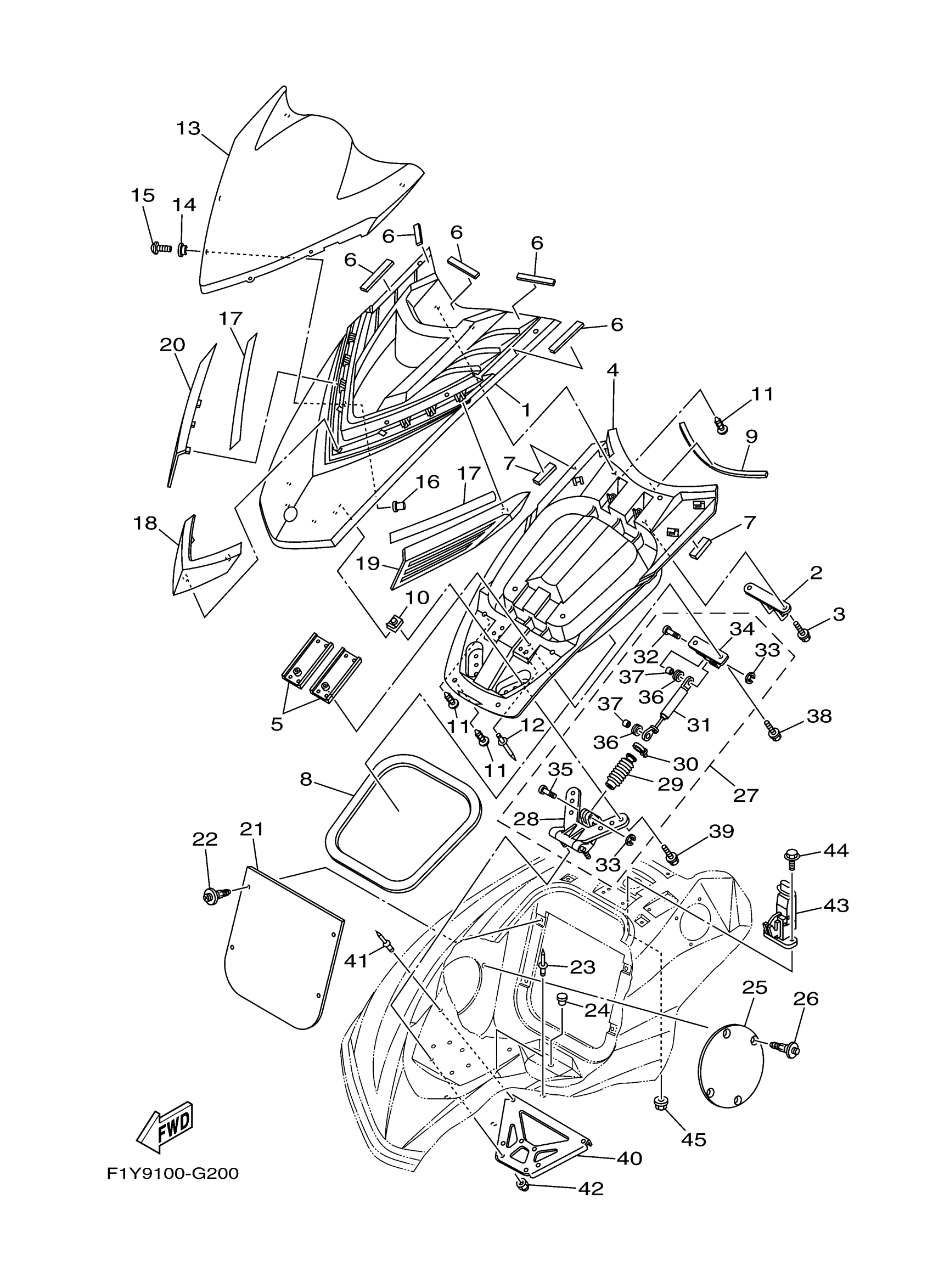

Yamaha FX1000G (WaveRunner FX) F1YA 2008 ENGINE HATCH 2 Diagram
#
1
LID, ENGINE ROOM
F1X-U517B-40-P0
Unavailable
2
HOOK, LID LOCK
F0X-6517F-01-00
Unavailable
3
BOLT, WITH WASHER
90119-06830-00
Unavailable
4
VENTILATOR COVER COMP, 2
F1X-U2103-01-00
Unavailable
5
PLATE, HATCH
F1B-65148-00-00
Unavailable
6
DAMPER 2
F0X-U515E-02-00
$1.99
7
PACKING 3
F1X-U266B-00-00
Unavailable
8
PACKING 1
F1B-U2663-00-00
Unavailable
9
PACKING 3
F1B-U266B-00-00
Unavailable
10
NUT, SPRING(GJ3)
90183-06902-00
$11.49
11
SCREW(GH1)
90149-05903-00
$3.28
12
RIVET, BLIND(EU0,USA)
90267-489U9-00
$5.60
13
VISOR
F1X-U515N-01-00
Unavailable
14
BUSH, SOLID (16G)
90381-05041-00
$9.49
15
BOLT, HEXAGON SOCKET BUTTON
90111-05017-00
Unavailable
16
NUT
90179-05800-00
Unavailable
17
TAPE, FITTING
F1X-U3635-10-00
Unavailable
18
ORNAMENT, CENTER
F1X-U517V-00-00
Unavailable
19
ORNAMENT, LH
F1X-U517W-01-00
Unavailable
20
ORNAMENT, RH
F1X-U517X-01-00
Unavailable
21
PLATE, LOCKER BOW
F1S-U475F-00-00
Unavailable
22
RIVET
90269-08801-00
Unavailable
23
RIVET, 1
F3J-U516R-00-00
Unavailable
24
. PLUG, BLIND
90605-502U1-00
Unavailable
25
COVER, INSPECTION 2
F1S-U7228-00-00
Unavailable
26
RIVET
90269-08801-00
Unavailable
27
HINGE ASSY.
F1B-6515A-01-00
Unavailable
28
. HINGE, LID
F1B-6517D-00-00
Unavailable
29
. COVER , SPRING
F1B-6518F-00-00
Unavailable
30
. CLAMP
90464-44001-00
Unavailable
31
DAMPER 1
F1B-6515D-01-00
Unavailable
32
. SHAFT B
F1B-6515J-00-00
Unavailable
33
CIRCLIP (701)
93430-06024-00
Unavailable
34
. STAY, DAMPER
F1B-6514U-00-00
Unavailable
35
. SHAFT A
F1B-6515H-00-00
Unavailable
36
. GROMMET
90480-10006-00
Unavailable
37
. COLLAR
90387-07008-00
Unavailable
38
BOLT, WITH WASHER
90119-06830-00
Unavailable
39
BOLT, WITH WASHER
90119-06896-00
Unavailable
40
PLATE, HINGE LID
F1B-6518E-00-00
Unavailable
41
RIVET, BLIND
90267-48020-00
Unavailable
42
NUT, NYLON
9572R-06300-00
Unavailable
43
LOCK, LID
F1X-6517C-00-00
Unavailable
44
BOLT, WITH WASHER
90119-06837-00
Unavailable
45
NUT, SELF-LOCKING
90185-06014-00
Unavailable
