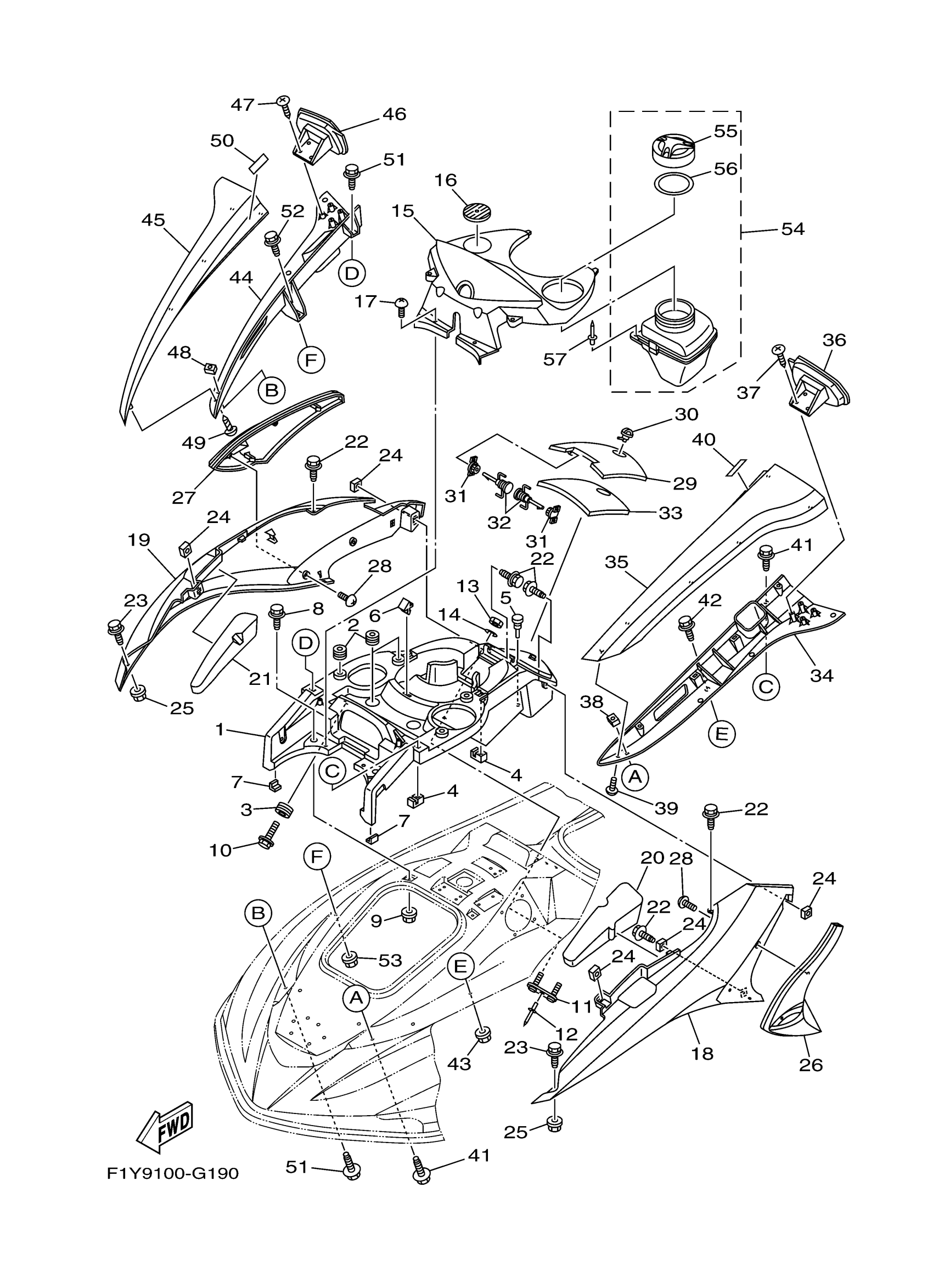

Yamaha FX1000G (WaveRunner FX) F1YA 2008 ENGINE HATCH 1 Diagram

#

Description
Price

1

CENTER COVER COMP.

F1X-U550A-00-00

Unavailable

2

. DAMPER 1

F1X-U828E-01-00

$2.27

3

. GROMMET

90480-19800-00

$11.48

4

NUT

F1X-U517E-01-00

$7.11

5

. PLUG

90605-502U2-00

$2.42

6

PACKING 4

F1K-U266C-10-00

$2.27

7

TRIM, HATCH 1

F1B-U5115-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06803-00

$3.52

9

NUT, SELF-LOCKING

90185-06014-00

$5.91

10

BOLT, WITH WASHER

90119-05803-00

$4.01

11

BRACKET

F1X-U5372-00-00

Unavailable

12

RIVET (EU0)

90267-48938-00

$5.00

13

NUT, NYLON

9572R-06300-00

$2.80

14

WASHER

9299R-06200-00

$0.43

15

COVER METER (LIGHT GRAY METALLIC P)

F1X-U8262-20-P1

Unavailable

16

MAT

F1X-U3844-01-00

$1.97

17

SCREW(GH1)

90149-05903-00

Unavailable

18

COVER,SIDE 1

F1X-U377B-40-P0

Unavailable

19

COVER,SIDE 2

F1X-U377C-40-P0

Unavailable

20

INNER, COVER SIDE 1

F1X-U377H-01-00

Unavailable

21

INNER, COVER SIDE 2

F1X-U377J-01-00

Unavailable

22

BOLT, WITH WASHER

90119-06803-00

$3.52

23

BOLT, WITH WASHER

90119-06803-00

$3.52

24

NUT

F1X-U517E-01-00

$7.11

25

NUT, SELF-LOCKING

90185-06014-00

$5.91

26

ORNAMENT, SIDE LH

F1X-U377F-00-00

$192.41

27

ORNAMENT, SIDE RH

F1X-U377G-00-00

Unavailable

28

SCREW(GH1)

90149-05903-00

Unavailable

29

LID HATCH

F1X-U517H-00-00

Unavailable

30

LOCK

F1X-62875-01-00

Unavailable

31

GEAR ASSY

F1B-60210-00-00

$10.99

32

PIN, HINGE

F1B-6517R-00-00

$5.55

33

PACKING CASE

F1X-U519D-01-00

Unavailable

34

COVER, MIRROR LOWER (LIGHT GRAY METALLIC P)

F1X-U596K-20-P0

Unavailable

35

COVER, MIRROR UPPE

F1X-U596H-29-P0

Unavailable

36

MIRROR LH (LIGHT GRAY METALLIC P)

F1X-U596B-10-00

Unavailable

37

SCREW(GH1)

90149-05903-00

Unavailable

38

NUT

F1X-U517E-01-00

$7.11

39

SCREW(GH1)

90149-05903-00

Unavailable

40

. PACKING 3

F1K-U266B-00-00

$1.15

41

BOLT, WITH WASHER

90119-06803-00

$3.52

42

BOLT, WITH WASHER

90119-06803-00

$3.52

43

NUT, SELF-LOCKING

90185-06014-00

$5.91

44

COVER, MIRROR LOWER (LIGHT GRAY METALLIC P)

F1X-U596L-20-P0

Unavailable

45

COVER, MIRROR UPPE

F1X-U596J-29-P0

Unavailable

46

MIRROR RH (LIGHT GRAY METALLIC P)

F1X-U596C-10-00

Unavailable

47

SCREW(GH1)

90149-05903-00

Unavailable

48

NUT

F1X-U517E-01-00

$7.11

49

SCREW(GH1)

90149-05903-00

Unavailable

50

. PACKING 3

F1K-U266B-00-00

$1.15

51

BOLT, WITH WASHER

90119-06803-00

$3.52

52

BOLT, WITH WASHER

90119-06803-00

$3.52

53

NUT, SELF-LOCKING

90185-06014-00

$5.91

54

CASE ASSY 1

F1X-U591A-02-00

Unavailable

55

. CAP, CASE

F1X-U591C-01-00

$34.08

56

PACKING,CASE

F1X-U591D-02-00

Unavailable

57

RIVET, 1

F3J-U516R-00-00

$2.36
