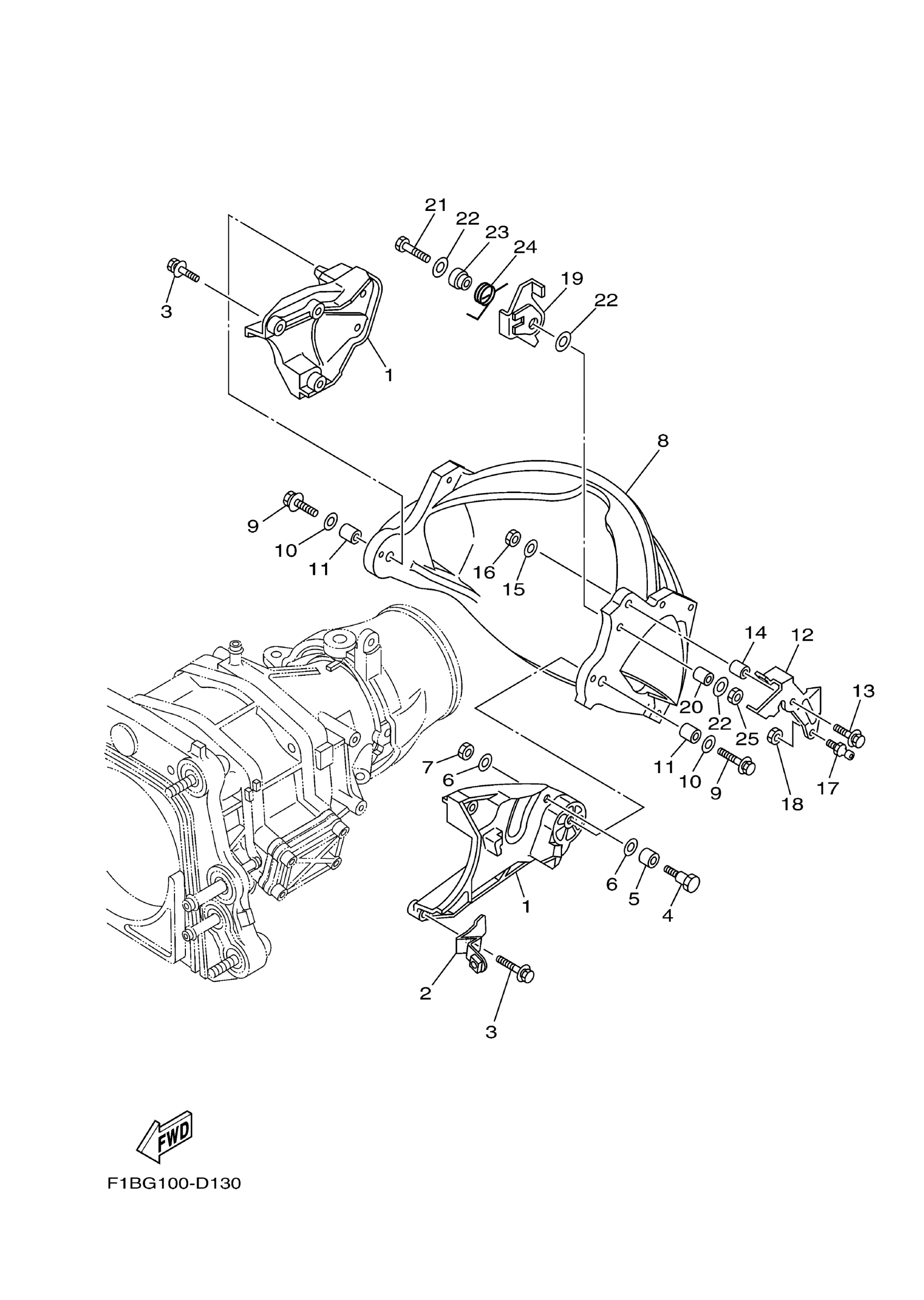

Yamaha FX1000F (WaveRunner FX) F1Y8 2007 JET UNIT 3 Diagram

#

Description
Price

1

BRACKET 1

66V-51341-00-94

$83.57

2

BRACKET 2

6B6-51342-00-00

Unavailable

3

BOLT, WITH WASHER

90119-06892-00

$4.01

4

BOLT

90109-08851-00

$4.24

5

COLLAR

90387-10M09-00

$14.06

6

WASHER

9299R-08600-00

$2.16

7

NUT

9538R-08600-00

$1.34

8

GATE, REVERSE

66V-51314-01-00

$291.03

9

BOLT, WITH WASHER

90119-08841-00

$1.07

10

WASHER, FENDER MOLD

90201-088T2-00

$1.15

11

COLLAR

90387-08M30-00

$7.59

12

LEVER, SHIFT ROD

66V-44121-00-00

Unavailable

13

BOLT,WITH WASHER

90119-06890-00

$1.15

14

COLLAR

90387-06M74-00

Unavailable

15

WASHER, PLATE

90201-068T1-00

$1.87

16

NUT

9538R-06600-00

$0.79

17

STUD, JOINT BALL

66V-U146E-00-00

$10.07

18

NUT

9538R-06600-00

$0.79

19

LEVER, SHIFT ROD

66V-44125-00-00

$40.28

20

COLLAR

90387-06M74-00

Unavailable

21

BOLT

90101-06833-00

$2.46

22

WASHER, PLATE

90201-068T1-00

$1.87

23

COLLAR

90387-06M84-00

Unavailable

24

SPRING, TORSION

90508-14M43-00

$1.79

25

NUT

9538R-06600-00

$0.79
