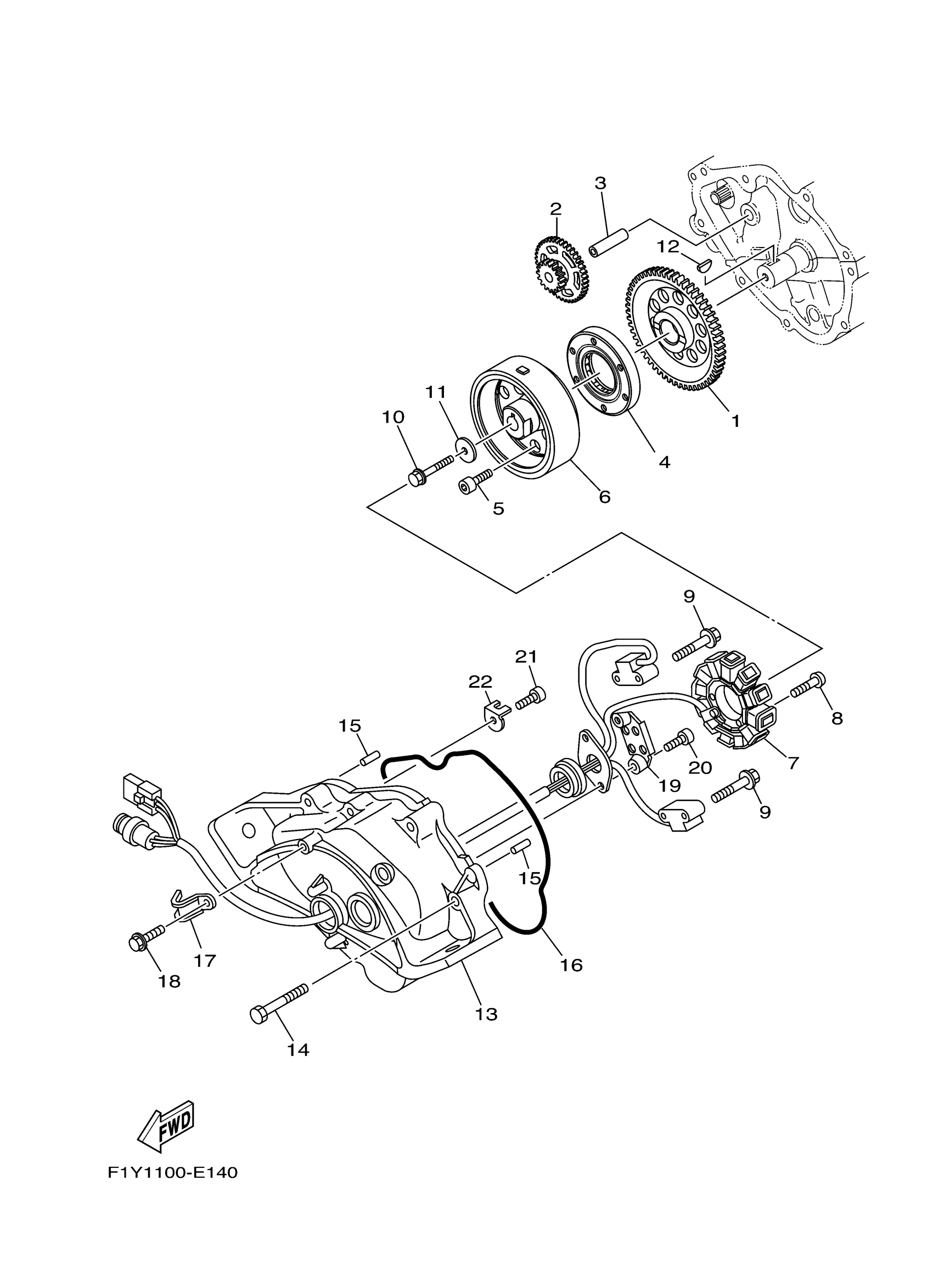

Yamaha FX1000F (WaveRunner FX) F1Y8 2007 GENERATOR Diagram

#

Description

Price

1

GEAR 3

6D3-15515-00-00

Unavailable

2

GEAR, IDLER 2

60E-15517-00-00

Unavailable

3

SHAFT 1

60E-15521-00-00

Unavailable

4

STARTER ONE-WAY ASSY

4WM-15590-00-00

$305.99

5

BOLT, SOCKET

91317-08020-00

$8.49

6

ROTOR ASSY

60E-81450-00-00

Unavailable

7

STATOR ASSY

60E-81410-01-00

Unavailable

8

SCREW

90149-06013-00

Unavailable

9

BOLT, WITH WASHER

97513-05514-00

Unavailable

10

BOLT, WASHER BASED

90105-105A6-00

Unavailable

11

WASHER, PLATE

90201-103U7-00

Unavailable

12

KEY, WOODRUFF(1WG)

90280-03047-00

$5.60

13

COVER, FLYWHEEL

60E-81337-00-94

Unavailable

14

BOLT, WITH WASHER

90119-10016-00

Unavailable

15

PIN, DOWEL

93608-16M16-00

Unavailable

16

O-RING

93212-04001-00

Unavailable

17

CLAMP

90462-10016-00

Unavailable

18

BOLT,SOCKET

91380-05010-00

Unavailable

19

CLAMP

60E-81328-00-00

Unavailable

20

BOLT,SOCKET

91317-06014-00

Unavailable

21

BOLT, SOCKET

91317-05010-00

Unavailable

22

PLATE

6D3-81845-00-00

Unavailable
