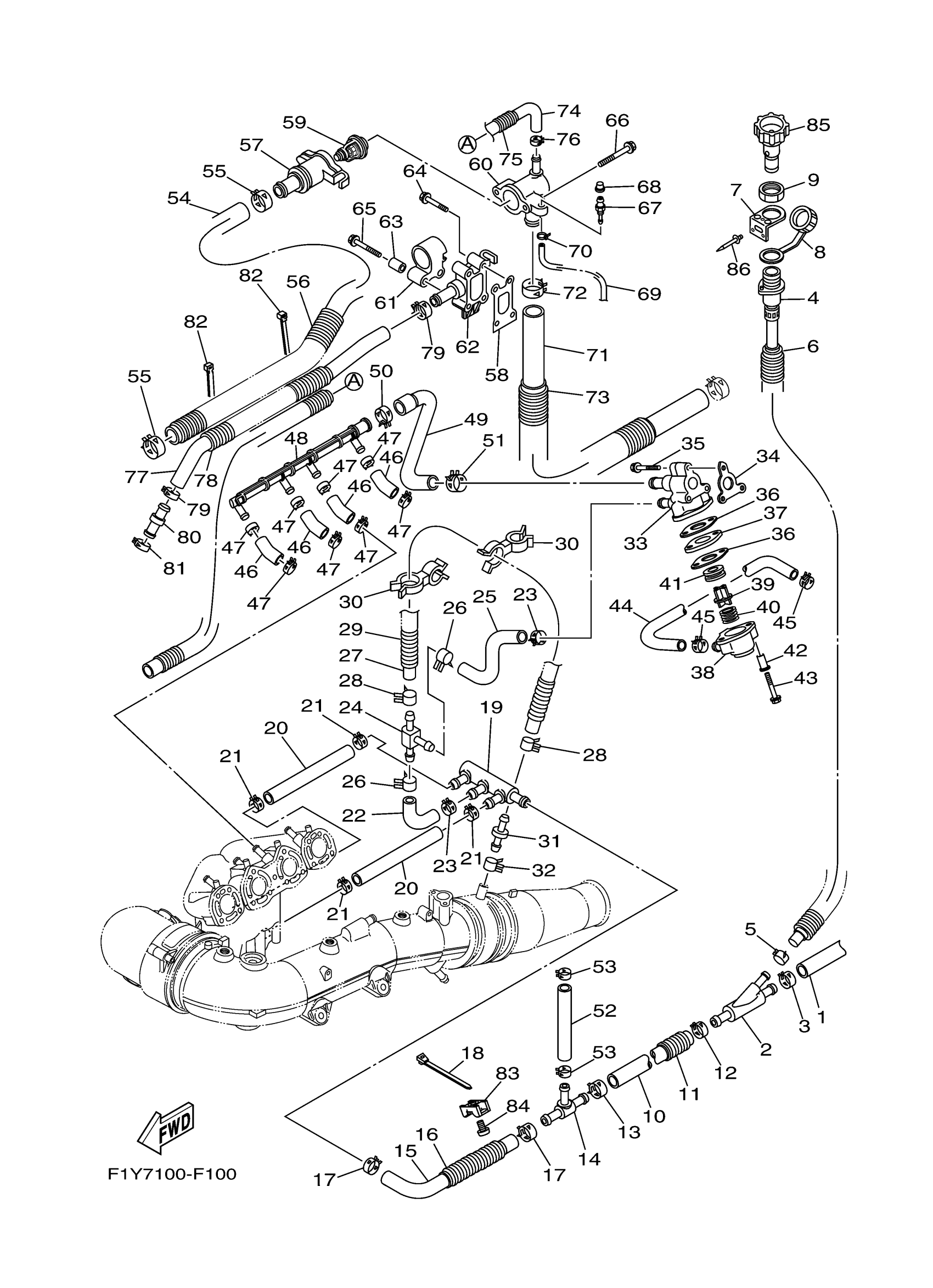

Yamaha FX1000F (WaveRunner FX) F1Y8 2007 EXHAUST 2 Diagram
#
1
HOSE 1
60E-E243A-00-00
Unavailable
2
JOINT, HOSE 1
60E-12581-00-00
Unavailable
3
CLIP
90467-200A0-00
Unavailable
4
JOINT ASSY
60E-12580-00-00
Unavailable
5
CLIP
90467-150A0-00
Unavailable
6
HOSE
90446-24M83-00
Unavailable
7
STAY
60E-12443-00-00
Unavailable
8
CAP,1
682-84385-01-00
Unavailable
9
NUT
EU0-61652-00-00
Unavailable
10
HOSE (L370)
90445-21804-00
Unavailable
11
HOSE, WITH SPRING (L300)
90447-22003-00
Unavailable
12
CLIP
90467-200A0-00
Unavailable
13
CLIP
90467-200A0-00
Unavailable
14
JOINT, HOSE 3
60E-12584-00-00
Unavailable
15
HOSE 2
60E-1243E-00-00
Unavailable
16
HOSE, WITH SPRING (L100)
90447-22001-00
Unavailable
17
CLIP
90467-200A0-00
Unavailable
18
CLAMP
90464-55001-00
Unavailable
19
JOINT, HOSE 2
60E-12582-00-00
Unavailable
20
HOSE (L150)
90445-18003-00
Unavailable
21
CLIP
90467-160A0-00
Unavailable
22
HOSE, 3
60E-1243F-10-00
Unavailable
23
CLIP
90467-160A0-00
Unavailable
24
JOINT, HOSE 5
60E-12598-00-00
Unavailable
25
HOSE (L108)
90445-18M03-00
Unavailable
26
CLIP
90467-160A0-00
Unavailable
27
HOSE (L1300)
90445-14M22-00
Unavailable
28
CLIP
90467-130A0-00
Unavailable
29
HOSE(65R)
90446-20M70-00
Unavailable
30
CLAMP
90464-21001-00
Unavailable
31
JOINT 2
60E-1247A-00-00
Unavailable
32
CLIP
90467-160A0-00
Unavailable
33
JOINT
60E-12479-00-94
Unavailable
34
GASKET
60E-12434-00-00
Unavailable
35
BOLT, HEXAGON W/W DEEP RECESS
97E95-06545-00
Unavailable
36
GASKET, COVER
60E-12414-00-00
Unavailable
37
PLATE
60E-12535-00-00
Unavailable
38
COVER, HOUSING
60E-12422-00-00
Unavailable
39
VALVE, PRESSURE CONTROL
6G5-12416-00-00
Unavailable
40
SPRING, COMPRESSION
90501-16M11-00
Unavailable
41
GROMMET
90480-20M05-00
Unavailable
42
COLLAR
90387-06M65-00
Unavailable
43
BOLT, HEXAGON W/W DEEP RECESS
97E95-06540-00
Unavailable
44
HOSE (L350)
90445-18M13-00
Unavailable
45
CLIP
90467-160A0-00
Unavailable
46
HOSE 1
60E-12576-00-00
Unavailable
47
. CLIP
90467-150A1-00
Unavailable
48
JOINT 1
60E-12469-00-00
Unavailable
49
HOSE 2
60E-12577-00-00
Unavailable
50
CLIP
90467-220A2-00
Unavailable
51
CLIP
90467-200A0-00
Unavailable
52
HOSE (L130)
90445-18004-00
Unavailable
53
CLIP
90467-160A0-00
Unavailable
54
HOSE (L365)
90445-26003-00
Unavailable
55
CLIP
90467-240A0-00
Unavailable
56
HOSE (L280)
90447-28006-00
Unavailable
57
HOUSING, THERMOSTAT
60E-12417-10-94
Unavailable
58
GASKET
60E-12435-00-00
Unavailable
59
THERMOSTAT
60E-12411-01-00
Unavailable
60
COVER, THERMOSTAT
60E-12413-10-94
Unavailable
61
JOINT
6B6-12499-00-00
Unavailable
62
JOINT
6D3-12446-00-00
Unavailable
63
COLLAR
90387-06083-00
Unavailable
64
BOLT, FLANGE
90105-06035-00
Unavailable
65
BOLT, FLANGE
90105-06054-00
Unavailable
66
BOLT, FLANGE
90105-06035-00
Unavailable
67
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
68
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
69
HOSE, DELIVERY
6AP-5110K-00-00
Unavailable
70
CLAMP
90465-10098-00
Unavailable
71
HOSE (L900)
90445-25003-00
Unavailable
72
CLIP
90467-240A0-00
Unavailable
73
TUBE (L800)
90447-28002-00
Unavailable
74
HOSE 8
6P6-12552-00-00
Unavailable
75
TUBE (L1150)
90447-22002-00
Unavailable
76
CLIP
90467-120A0-00
Unavailable
77
HOSE (L530)
90445-21004-00
Unavailable
78
HOSE(63M)
90446-27M55-00
Unavailable
79
CLIP
90467-200A0-00
Unavailable
80
CONNECTION
60E-51142-00-00
Unavailable
81
CLIP
90467-200A0-00
Unavailable
82
CLAMP
90465-14M66-00
Unavailable
83
BRACKET 1
60E-1244E-00-00
Unavailable
84
SCREW, WITH WASHER(6L2)
97985-05210-00
Unavailable
85
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
86
RIVET, BLIND
90267-48802-00
Unavailable
