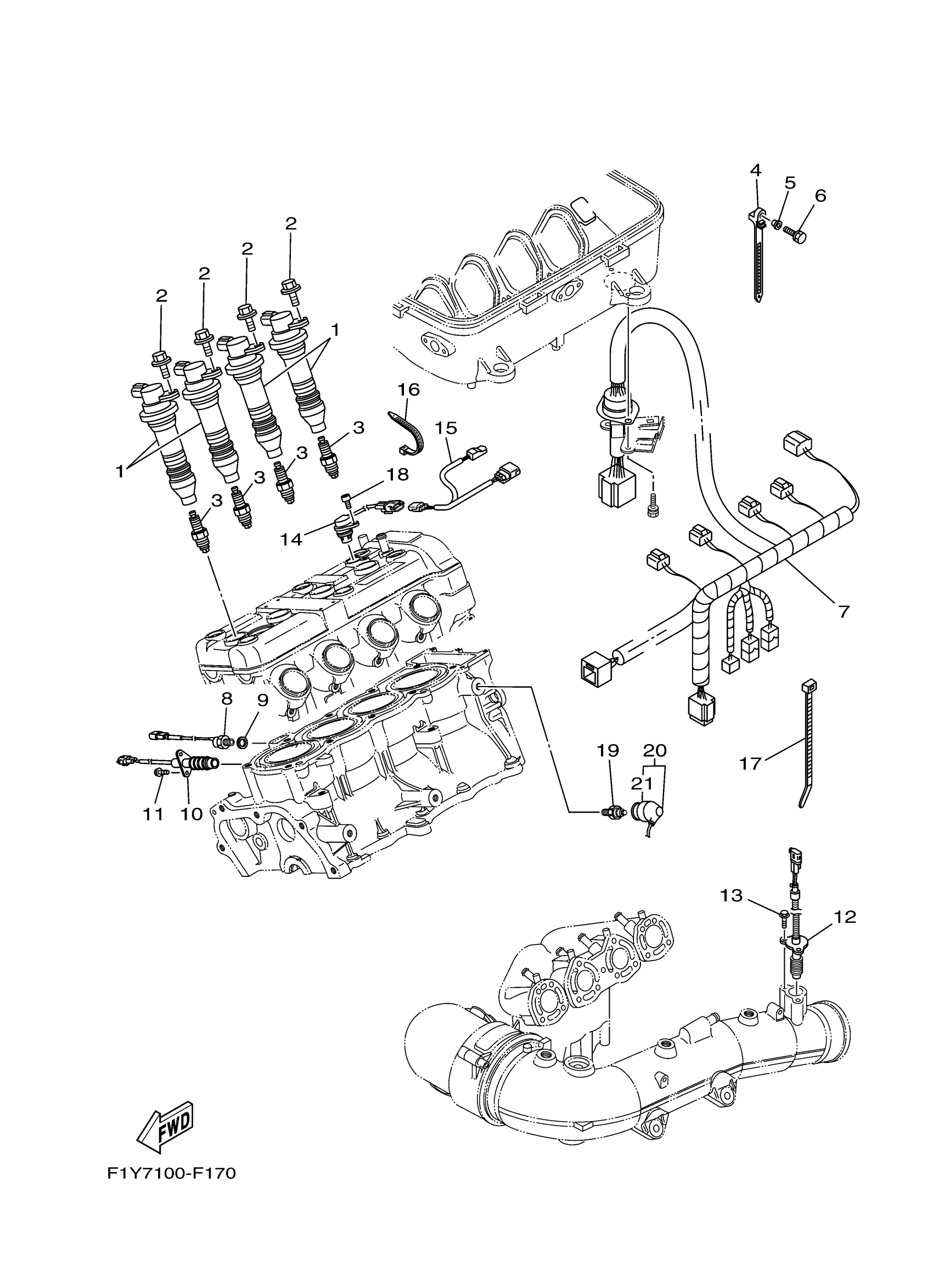

Yamaha FX1000F (WaveRunner FX) F1Y8 2007 ELECTRICAL 2 Diagram

#

Description
Price

1

IGNITION COIL ASSY

6D3-82310-01-00

Unavailable

2

BOLT, FLANGE

95814-06016-00

Unavailable

3

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

4

CLAMP

90465-12M53-00

Unavailable

5

COLLAR

90387-06M05-00

Unavailable

6

BOLT, FLANGE

95814-06016-00

Unavailable

7

WIRE HARNESS ASSY 2

60E-8259M-30-00

Unavailable

8

THERMOSENSOR ASSY

60E-85790-02-00

Unavailable

9

WASHER, PLATE

92990-10600-00

Unavailable

10

THERMO SWITCH ASSY

60E-82560-A1-00

Unavailable

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

12

THERMO SWITCH ASSY

60E-82560-01-00

Unavailable

13

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

14

SENSOR, CAM POSITION

60E-85896-02-00

Unavailable

15

CONDENSER 1

60E-81325-10-00

Unavailable

16

CLAMP (6E5)

90465-13M11-00

Unavailable

17

CLAMP

90465-13M18-00

Unavailable

18

BOLT,SOCKET

91380-06016-00

Unavailable

19

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

20

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

21

CAP

60E-82532-01-00

Unavailable
