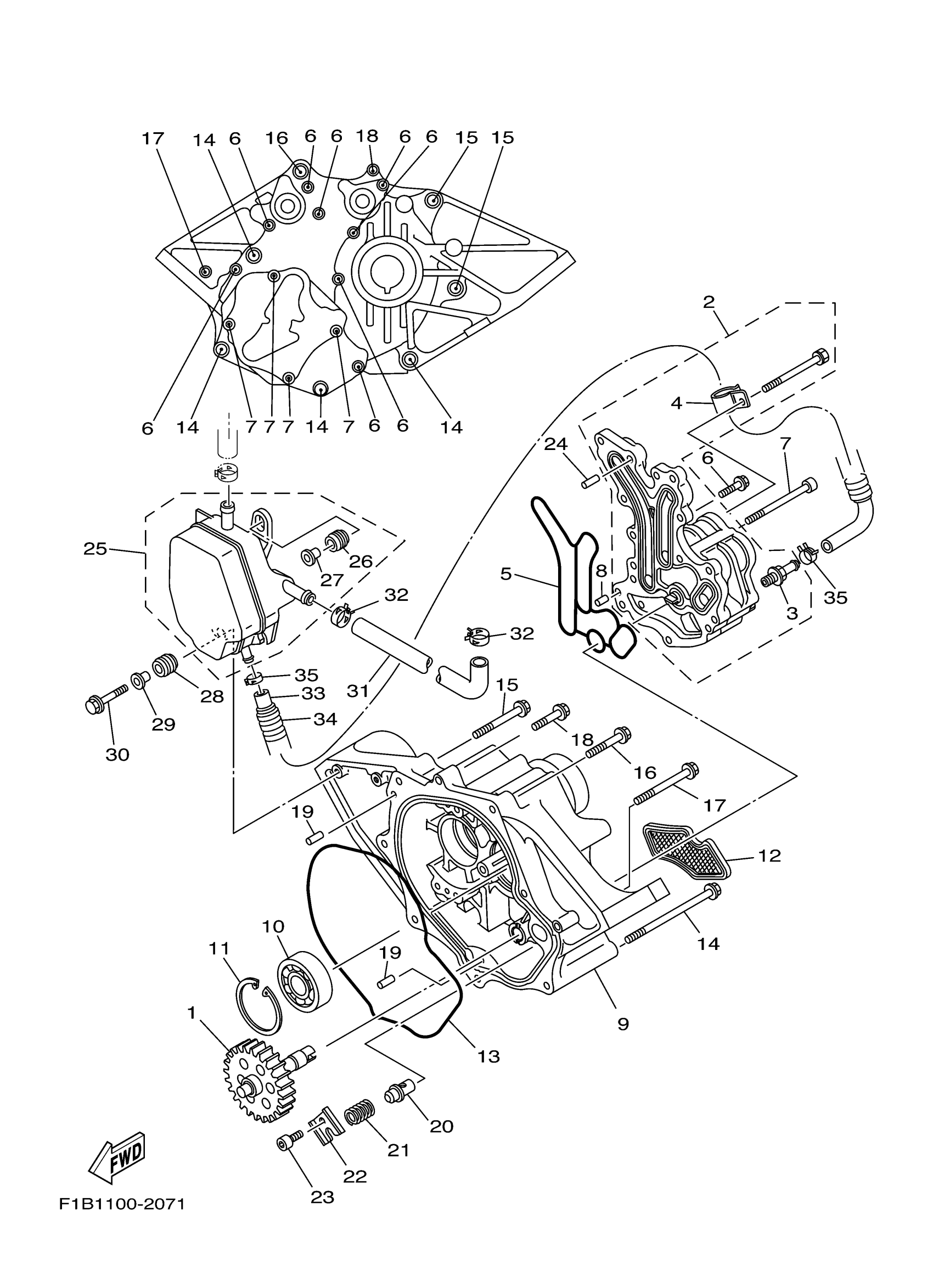

Yamaha FX1000E (WaveRunner FX) F1Y4 2006 OIL PUMP Diagram

#

Description
Price

1

DRIVEN GEAR ASSY

60E-13360-00-00

$178.77

2

OIL PUMP ASSY

60E-13300-01-00

Unavailable

3

. BOLT, BREATHER

60E-13185-00-00

Unavailable

4

. CLAMP

90462-08019-00

$11.99

5

GASKET

60E-13563-00-00

$23.99

6

BOLT, WITH WASHER(61B)

97513-06525-00

$1.75

7

BOLT, WITH WASHER

90119-08067-00

Unavailable

8

PIN, DOWEL (614)

93606-12019-00

$3.05

9

COVER, PUMP GEAR

60E-13327-10-00

Unavailable

10

BEARING

93306-30441-00

$57.39

11

CIRCLIP(26H)

99009-52500-00

$10.02

12

STRAINER, OIL

60E-13411-01-00

Unavailable

13

. O-RING

93211-95001-00

$18.49

14

BOLT, WITH WASHER

90119-08045-00

$4.09

15

BOLT, WITH WASHER

90119-08034-00

$3.33

16

BOLT, WITH WASHER

90119-08043-00

$4.55

17

BOLT, WITH WASHER

97513-06555-00

$2.80

18

BOLT, WITH WASHER (62X)

97513-06535-00

Unavailable

19

PIN, DOWEL

93608-16M16-00

$2.41

20

PLUNGER, RELIEF

60E-13483-00-00

$29.99

21

SPRING, RELIEF

4WM-13484-00-00

$2.73

22

WASHER, CLAW

90214-06029-00

Unavailable

23

BOLT,SOCKET

91317-06016-00

Unavailable

24

PIN, DOWEL

93606-25M00-00

$1.82

25

SEPERATOR, OIL

60E-11164-00-00

Unavailable

26

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

27

. COLLAR

90387-06119-00

$4.37

28

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

29

. COLLAR

90387-06119-00

$4.37

30

BOLT, WITH WASHER

90119-06294-00

Unavailable

31

PIPE, BREATHER 3

60E-11126-01-00

$22.71

32

CLIP

90467-170A0-00

$2.80

33

PIPE, BREATHER 4

60E-11125-02-00

$15.49

34

HOSE

90446-17M75-00

Unavailable

35

CLIP

90467-110A1-00

$4.07
