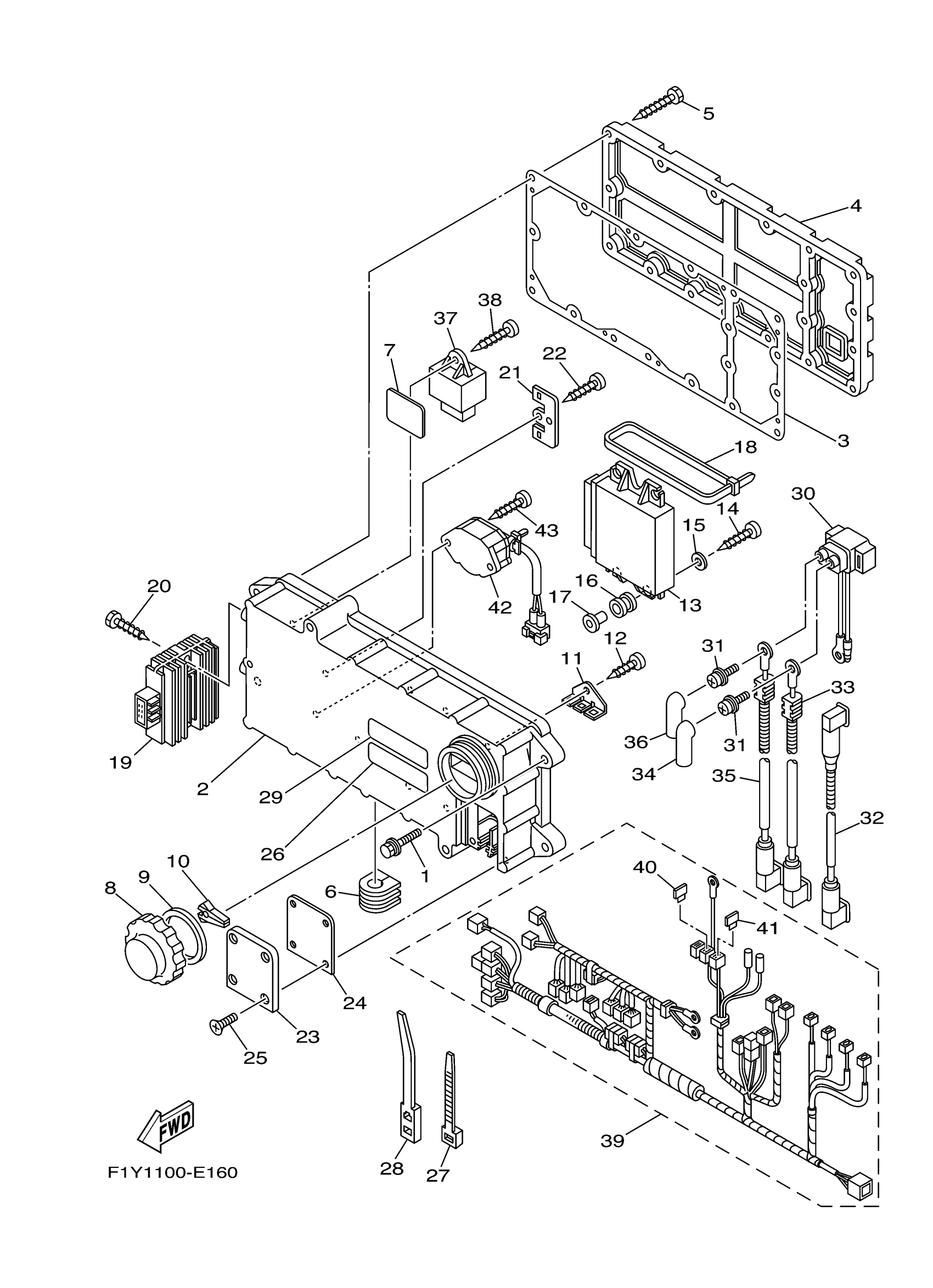

Yamaha FX1000E (WaveRunner FX) F1Y4 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

HOUSING

6B6-8552A-00-00

$153.02

3

GASKET, TERMINAL

60E-81921-00-00

$56.32

4

COVER, CASE

60E-8552E-00-00

Unavailable

5

SCREW, TAPPING

97780-60430-00

$3.61

6

GROMMET

90480-01012-00

$7.27

7

SEAT, BASE

60E-84742-00-00

$7.27

8

. CAP

66V-8132W-00-00

$11.85

9

. GASKET

66V-81844-00-00

Unavailable

10

. PULLER, FUSE

67F-2812A-00-00

$4.11

11

STAY, FUSE HOLDER

60E-82153-00-00

$8.32

12

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

13

ENGINE CONTROL UNIT ASSY

60E-8591A-30-00

$1,765.14

14

SCREW, TAPPING

97780-60530-00

$5.45

15

WASHER, PLATE

90201-06M05-00

Unavailable

16

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

17

. COLLAR

90387-06119-00

$4.37

18

CLAMP

90464-99003-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

6S8-81960-00-00

$163.22

20

SCREW, TAPPING

97780-60430-00

$3.61

21

PLATE, COUPLER

60E-87179-00-00

$7.27

22

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

23

COVER, TERMINAL

60E-81916-00-00

Unavailable

24

GASKET

60E-82533-00-00

$5.00

25

SCREW, FLAT HEAD

98780-05020-00

$2.27

26

MARK 3

6B6-83623-00-00

$5.91

27

CLAMP

90465-13M97-00

$3.21

28

CLAMP

90464-50002-00

Unavailable

29

LABEL, CAUTION 7

60E-83627-00-00

$4.55

30

. STARTER RELAY ASSY

6B6-81940-00-00

$97.06

31

SCREW, WITH WASHER

90159-06008-00

Unavailable

32

WIRE, MINUS LEAD

6D3-82116-00-00

Unavailable

33

WIRE, LEAD

60E-82117-10-00

Unavailable

34

COVER, LEAD WIRE

66V-82119-00-00

$2.27

35

WIRE, LEAD

60E-82117-20-00

$101.50

36

COVER, LEAD WIRE

66V-82119-00-00

$2.27

37

RELAY ASSY

60E-81950-00-00

$137.93

38

SCREW, TAPPING

97780-60520-00

$4.09

39

WIRE HARNESS ASSY

99999-03768-00

Unavailable

40

. FUSE (3A)

67F-82151-30-00

$4.69

41

FUSE

5JJ-82151-20-00

Unavailable

42

SWITCH ASSY

60E-8259E-00-00

$142.53

43

SCREW, TAPPING

97780-60520-00

$4.09
