CRANKSHAFT PISTON

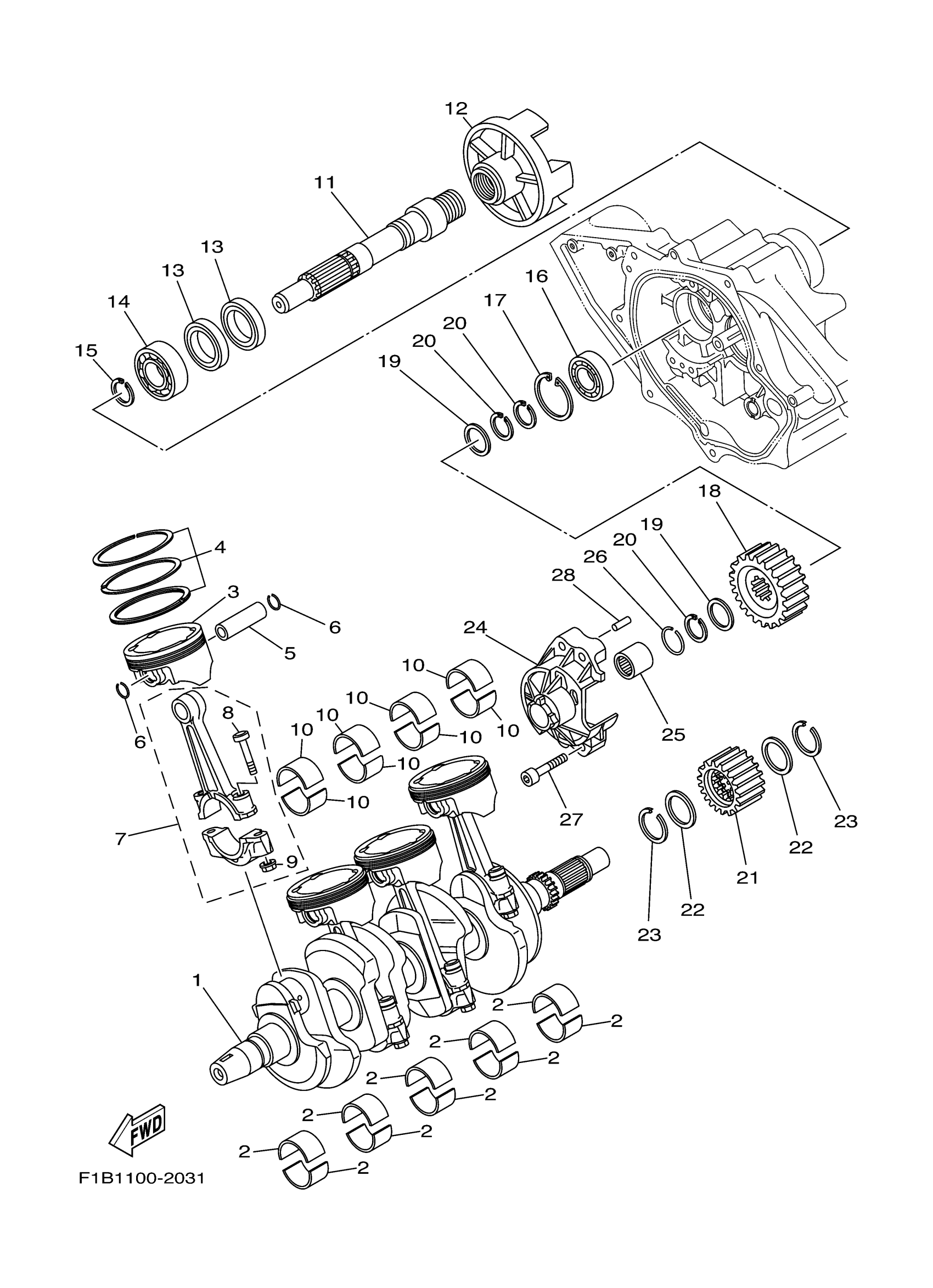

Yamaha FX1000E (WaveRunner FX) F1Y4 2006 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT
60E-11411-11-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
60E-11416-00-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
60E-11416-10-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
60E-11416-20-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
60E-11416-30-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
60E-11416-40-00
Unavailable
3
PISTON (STD)
60E-11631-00-B0
Unavailable
3
PISTON (0.50MM O/S)
60E-11636-00-00
Unavailable
4
PISTON RING SET (S
4XV-11603-01-00
$42.99
4
PISTON RING SET (0.5MM OS)
60E-11605-00-00
Unavailable
5
PIN, PISTON
4XV-11633-00-00
$28.99
6
CLIP (1J7)
90468-12069-00
$9.49
7
CONNECTING ROD ASSY
5PW-11650-00-00
Unavailable
8
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
9
NUT (11H)
90179-08327-00
$9.49
10
PLANE BEARING, CONNECTING ROD
60E-11656-00-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
60E-11656-10-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
60E-11656-20-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
60E-11656-30-00
Unavailable
11
SHAFT, TRANSFER
60E-17572-01-00
Unavailable
12
FLANGE, COUPLING
66E-45813-10-94
Unavailable
13
OIL SEAL
93101-35004-00
Unavailable
14
BEARING
93306-20532-00
Unavailable
15
CIRCLIP (4L0)
93440-25084-00
Unavailable
16
BEARING(1FF)
93306-00519-00
Unavailable
17
CIRCLIP(48Y)
99009-47500-00
Unavailable
18
GEAR, TRANSFER DRIVEN
60E-17588-00-00
Unavailable
19
WASHER
90209-21011-00
Unavailable
20
CIRCLIP (4L0)
93440-25084-00
Unavailable
21
GEAR, TRANSFER DRIVE
60E-17586-00-00
Unavailable
22
WASHER
90209-25008-00
Unavailable
23
CIRCLIP (2H7)
93440-28062-00
Unavailable
24
HOUSING, BEARING
60E-17521-00-00
Unavailable
25
BEARING
93311-32079-00
Unavailable
26
CIRCLIP
93450-30150-00
Unavailable
27
BOLT,SOCKET
91317-08040-00
Unavailable
28
PIN, DOWEL (614)
93606-12019-00
Unavailable
