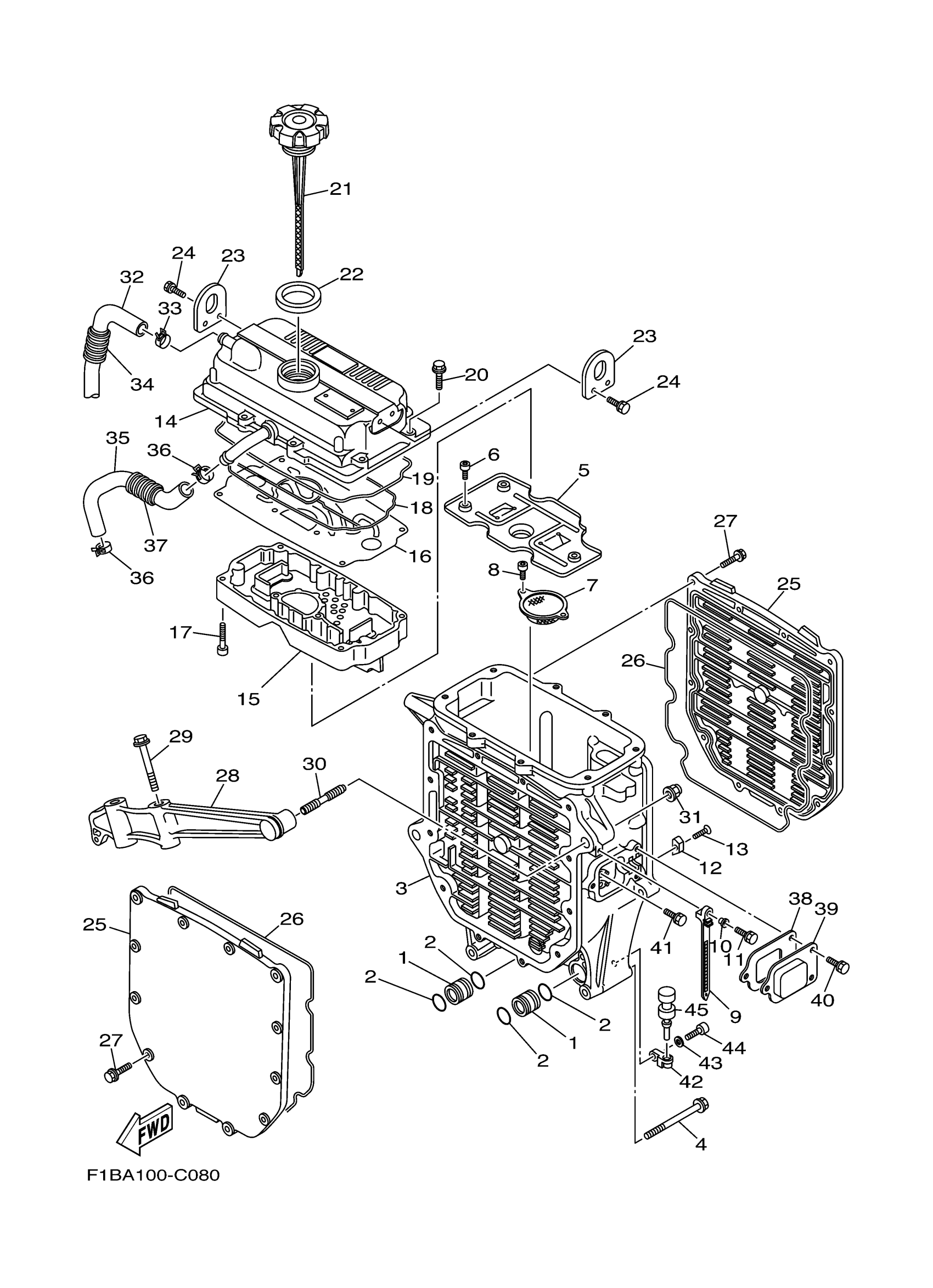

Yamaha FX1000D (WaveRunner FX) F1BG 2005 OIL COOLER Diagram

#

Description
Price

1

CONNECTOR

60E-13446-00-00

$14.44

2

O-RING (1L9)

93210-18322-00

$4.24

3

CASE, OIL COOLER

60E-13462-00-94

Unavailable

4

BOLT, WITH WASHER

90119-08M99-00

$3.62

5

PLATE, BAFFLE

60E-13317-00-00

$31.80

6

BOLT,SOCKET

91317-05014-00

$6.23

7

STRAINER 2

60E-13421-00-00

$23.99

8

BOLT,SOCKET

91317-06014-00

$6.57

9

CLAMP

90465-12M53-00

$5.00

10

COLLAR

90387-06M05-00

$6.45

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

12

ANODE

6E5-11325-00-00

$4.08

13

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

14

COVER, OIL COOLER

60E-13463-10-94

$442.41

15

PLATE, BREATHER

60E-11165-10-00

Unavailable

16

PLATE, BREATHER 2

60E-11145-10-00

Unavailable

17

BOLT,SOCKET

91317-05035-00

Unavailable

18

GASKET

60E-13477-00-00

$24.23

19

GASKET

60E-13475-00-00

$18.89

20

BOLT, FLANGE

90105-06036-00

$2.27

21

PLUG, OIL LEVEL

6BU-15362-A0-00

$37.91

22

O-RING

60E-13473-00-00

$8.32

23

HANGER, ENGINE

6B6-11119-00-00

$10.99

24

BOLT, WITH WASHER

90119-06023-00

$3.07

25

COVER, OIL COOLER

6D3-13443-00-94

$106.05

26

GASKET

60E-13476-10-00

$22.11

27

BOLT (689)

90105-06M07-00

Unavailable

28

STAY

60E-13151-00-94

$192.41

29

BOLT, WITH WASHER

90119-10M23-00

$10.24

30

BOLT, STUD

90116-10016-00

$10.99

31

NUT, CAP

90176-10001-00

$3.33

32

PIPE, BREATHER 1

60E-11166-01-00

$23.99

33

CLIP

90467-170A0-00

$2.80

34

TUBE (L260)

90447-19005-00

$3.64

35

PIPE, BREATHER 2

60E-11167-01-00

$33.99

36

CLIP

90467-170A0-00

$2.80

37

HOSE, WITH SPRING

90447-19004-00

Unavailable

38

GASKET

60E-13567-00-00

$1.82

39

COVER 2

60E-13882-00-00

$11.35

40

BOLT, WITH WASHER

97580-06516-00

Unavailable

41

BOLT, WITH WASHER

97507-06512-00

$5.45

42

BRACKET 1

60E-51341-00-94

$19.68

43

WASHER, PLAIN (646)

92990-06600-00

Unavailable

44

. BOLT

91380-06020-00

$1.86

45

GROMMET(6R7)

90480-06M46-00

Unavailable
