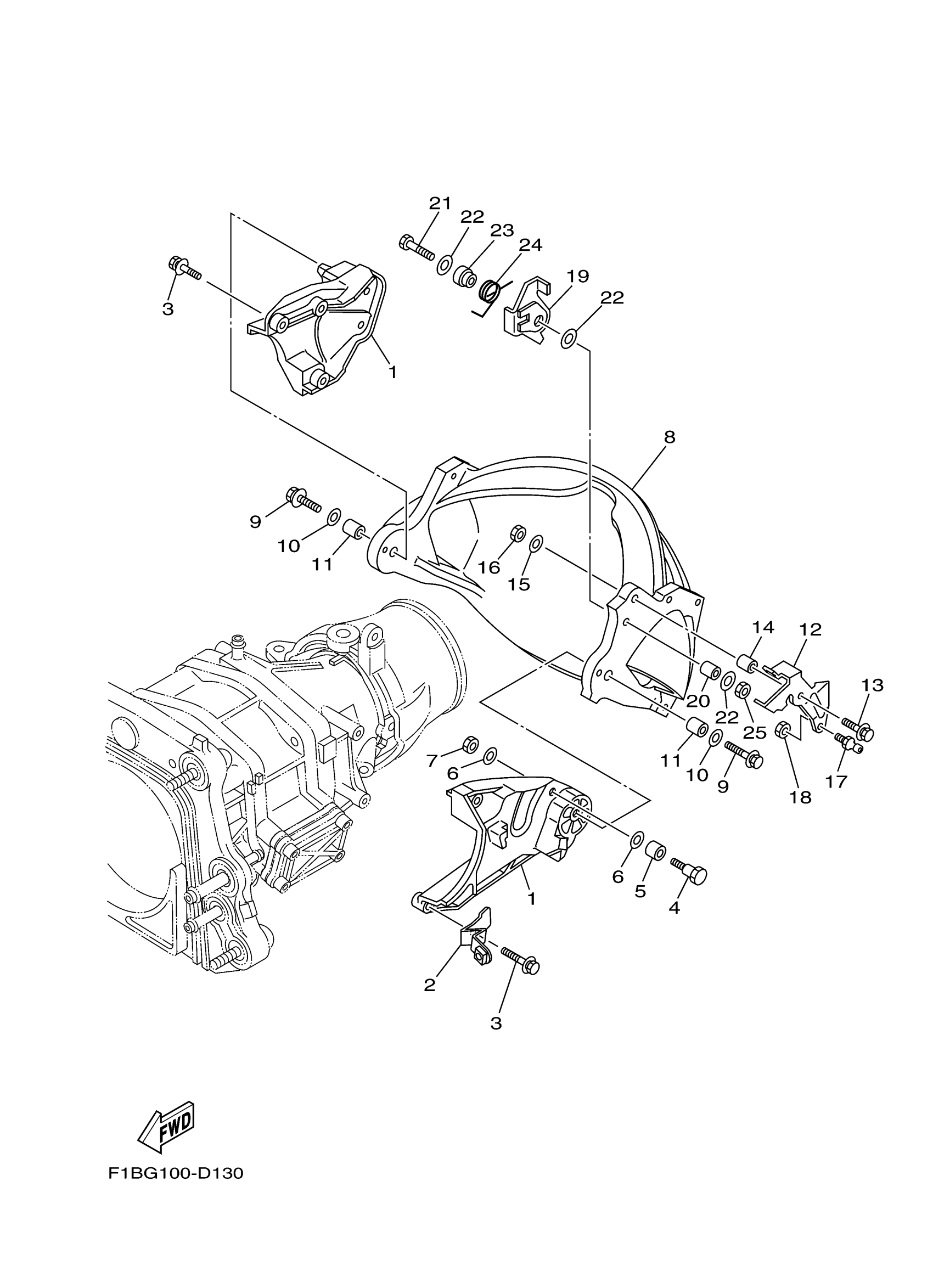

Yamaha FX1000D (WaveRunner FX) F1BG 2005 JET UNIT 3 Diagram
#
Description
Price
1
BRACKET 1
66V-51341-00-94
Unavailable
2
BRACKET 2
6B6-51342-00-00
Unavailable
3
BOLT, WITH WASHER
90119-06892-00
Unavailable
4
BOLT
90109-08851-00
Unavailable
6
WASHER
9299R-08600-00
Unavailable
7
NUT
9538R-08600-00
Unavailable
8
GATE, REVERSE
66V-51314-01-00
Unavailable
9
BOLT, WITH WASHER
90119-08841-00
Unavailable
10
WASHER, FENDER MOLD
90201-088T2-00
Unavailable
11
COLLAR
90387-08M30-00
Unavailable
12
LEVER, SHIFT ROD
66V-44121-00-00
Unavailable
13
BOLT,WITH WASHER
90119-06890-00
Unavailable
14
COLLAR
90387-06M74-00
Unavailable
15
WASHER, PLATE
90201-068T1-00
Unavailable
16
NUT
9538R-06600-00
Unavailable
17
STUD, JOINT BALL
66V-U146E-00-00
Unavailable
18
NUT
9538R-06600-00
Unavailable
19
LEVER, SHIFT ROD
66V-44125-00-00
Unavailable
20
COLLAR
90387-06M74-00
Unavailable
21
BOLT
90101-06833-00
Unavailable
22
WASHER, PLATE
90201-068T1-00
Unavailable
23
COLLAR
90387-06M84-00
Unavailable
24
SPRING, TORSION
90508-14M43-00
Unavailable
25
NUT
9538R-06600-00
Unavailable
