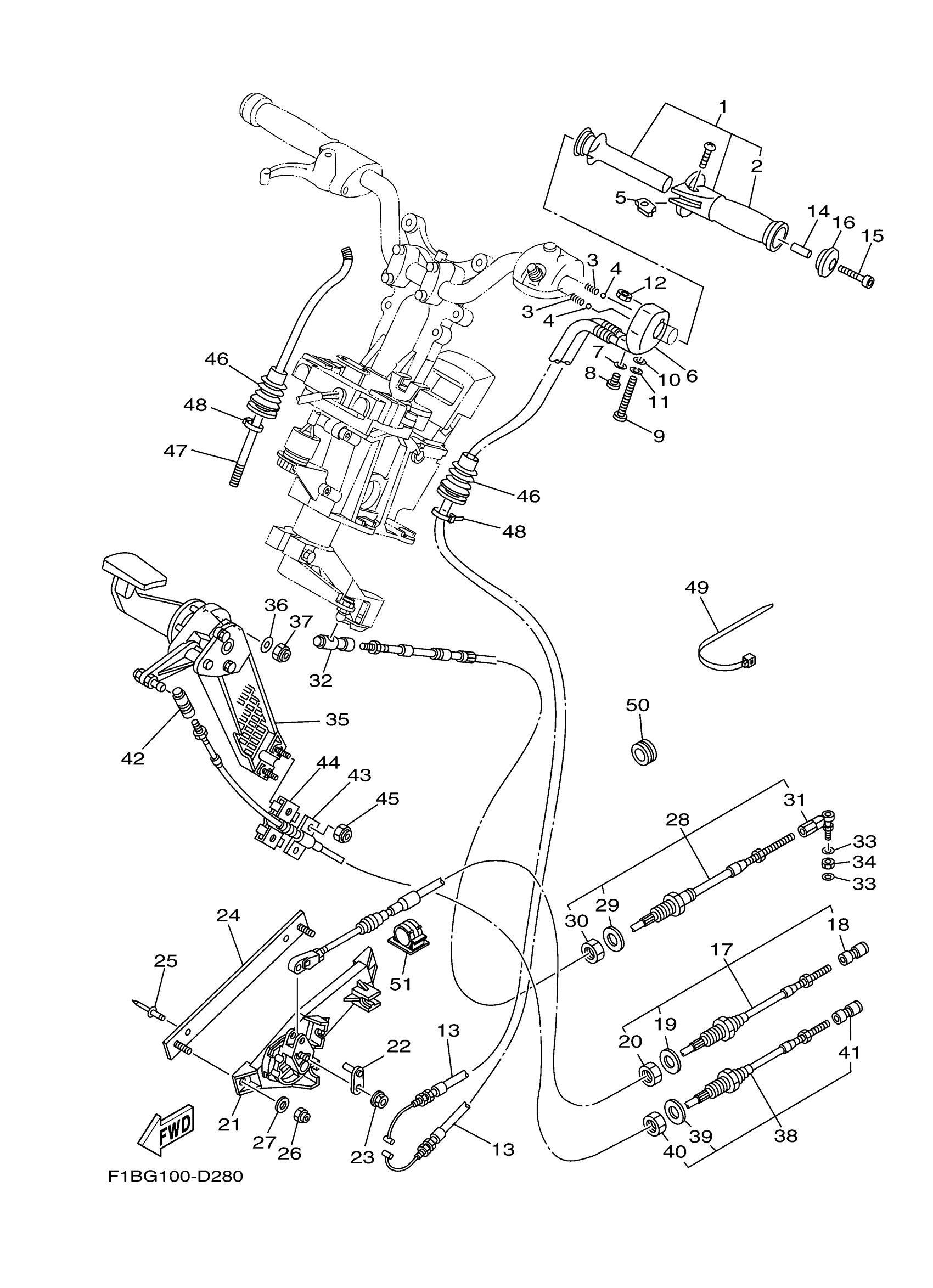

Yamaha FX1000D (WaveRunner FX) F1BG 2005 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE ASSY.

GP7-U157A-00-00

Unavailable

2

. GRIP, HANDLE

GP7-U155C-00-00

Unavailable

3

SPRING

GP7-U152P-00-00

Unavailable

4

BALL

GP7-U152R-00-00

Unavailable

5

LEVER ASSY

GP7-U151M-00-00

Unavailable

6

HOUSING ASSY

GP7-U152M-00-00

Unavailable

7

WASHER, PLAIN (646)

92990-04600-00

$5.99

8

SCREW, BINDING (M01)

98980-04010-00

$6.99

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

WASHER

9299R-06100-00

Unavailable

12

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

13

CABLE, NOZZLE CONTROL 2

F1B-U153D-01-00

Unavailable

14

COLLAR

90387-05800-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

Unavailable

16

GRIP, END

F1S-U155F-00-00

Unavailable

16

GRIP, END

GP7-U155F-00-00

Unavailable

17

CABLE,NOZZLE CONTR

F1S-6153E-01-00

Unavailable

18

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

19

. PACKING C

F1B-61438-00-00

Unavailable

20

NUT

F1B-6151S-01-00

Unavailable

21

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

22

PIN

F0D-U152C-10-00

Unavailable

23

NUT, NYLON

9572R-06300-00

Unavailable

24

BASE, REMOCON.

F0X-U4958-00-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

Unavailable

26

NUT, NYLON

9572R-06300-00

Unavailable

27

WASHER

9299R-06200-00

Unavailable

28

CABLE, STEERING

F1S-61481-02-00

Unavailable

29

. PACKING C

F1B-61438-00-00

Unavailable

30

NUT

F1B-6151S-01-00

Unavailable

31

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

32

SHAFT,JOINT BALL

GK5-6146F-00-00

Unavailable

33

WASHER, PLATE

90201-06906-00

Unavailable

34

NUT

9538R-06700-00

Unavailable

35

REMOCON. LEVER ASSY.

F1S-6134A-00-00

Unavailable

36

WASHER

9299R-06200-00

Unavailable

37

NUT, NYLON

9572R-06300-00

Unavailable

38

CABLE,REVERSE

F1B-6149C-03-00

Unavailable

39

. PACKING C

F1B-61438-00-00

Unavailable

40

NUT

F1B-6151S-01-00

Unavailable

41

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

42

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

43

STOPPER, CABLE

GH1-61468-01-00

Unavailable

44

HOLDER, STOPPER

GU5-6146K-10-00

Unavailable

45

NUT, NYLON

9572R-06300-00

Unavailable

46

GROMMET

F0D-6822E-00-00

Unavailable

47

TUBE, 2

F0D-6773E-00-00

Unavailable

48

BAND

90601-200U1-00

Unavailable

49

CLAMP

90464-32801-00

Unavailable

50

GROMMET

90480-279U1-00

Unavailable

51

CLAMP

90600-925U9-00

Unavailable
