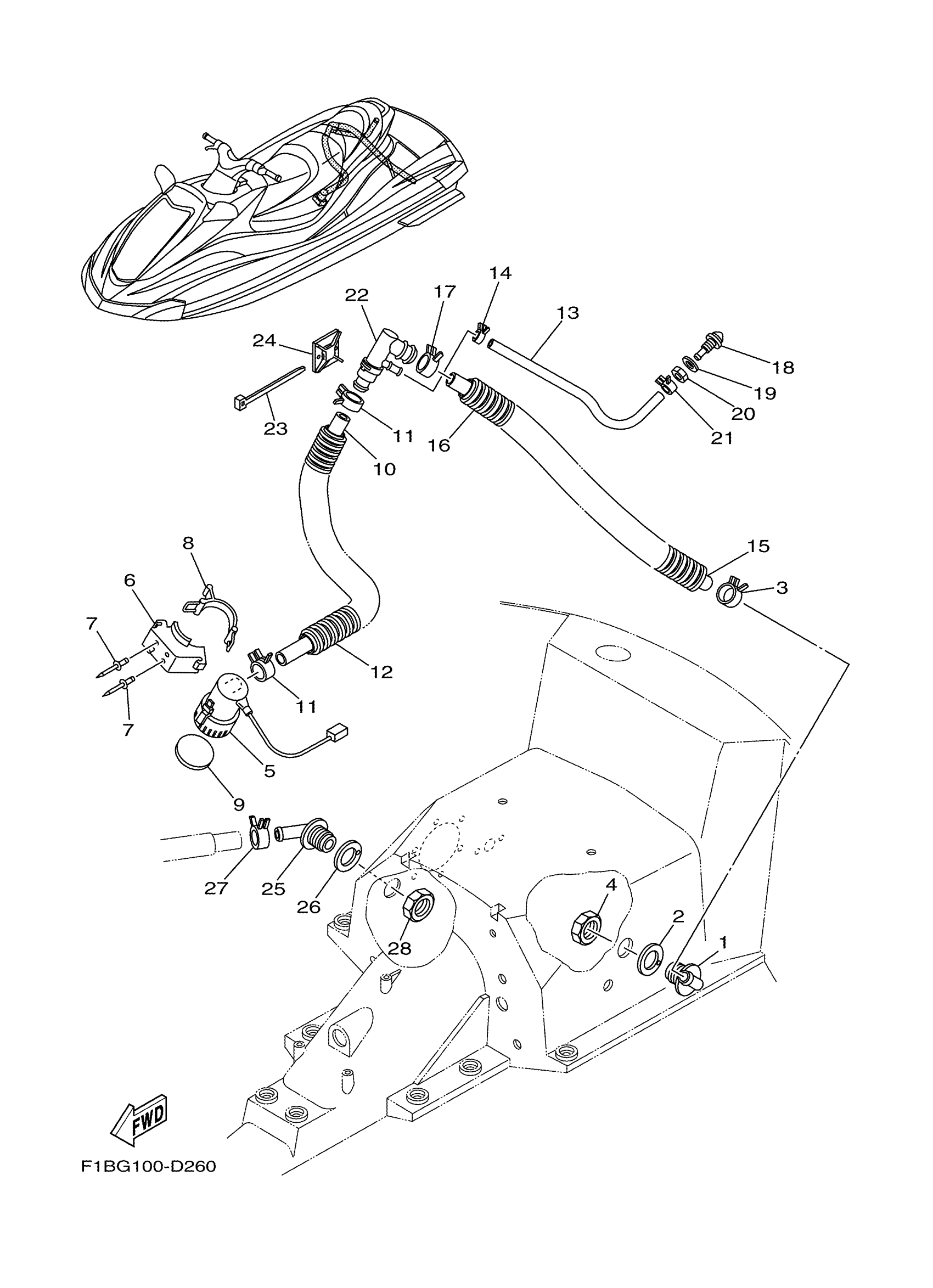

Yamaha FX1000D (WaveRunner FX) F1BG 2005 BILGE PUMP Diagram

#

Description
Price

1

BODY, DRAIN 3

F1B-6224E-00-00

$18.49

2

PACKING

F1B-67525-00-00

Unavailable

3

CLIP

90467-250A0-00

$6.36

4

DRAIN, COCKPIT

F1B-62241-00-00

$13.99

5

BILGE PUMP ASSY

F1B-U8360-02-00

$120.63

6

BRACKET

F1B-U7698-01-00

Unavailable

7

RIVET, 1

F3J-U516R-00-00

$2.36

8

BAND, BATTERY

GA7-68218-00-00

$41.99

9

PACKING, BILGE

F1B-U7656-00-00

$1.17

10

HOSE 1

F1B-U7626-00-00

$18.17

11

CLIP

90467-210A0-00

$5.45

12

TUBE

F2T-U773D-10-00

$5.68

13

HOSE, DRAIN 2

F1B-U7629-00-00

Unavailable

14

CLIP

90467-140A1-00

$5.91

15

HOSE, DRAIN 3

F1B-U7628-00-00

$21.20

16

TUBE

F2T-U773D-10-00

$5.68

17

CLIP

90467-250A0-00

$6.36

18

PILOT,WATER

GH7-6753B-00-00

$30.99

19

GASKET(GJ1)

90430-16910-00

Unavailable

20

NUT

GP7-61652-00-00

$10.24

21

CLIP

90467-140A1-00

$5.91

22

HOSE JOINT

F1S-67620-00-00

$66.65

23

CLAMP(JN6)

90464-40825-00

Unavailable

24

BASE, CLAMP

F1B-U828M-00-00

Unavailable

25

BODY, DRAIN 3

F1B-6224E-00-00

$18.49

26

PACKING

F1B-67525-00-00

Unavailable

27

CLIP

90467-250A0-00

$6.36

28

DRAIN, COCKPIT

F1B-62241-00-00

$13.99
