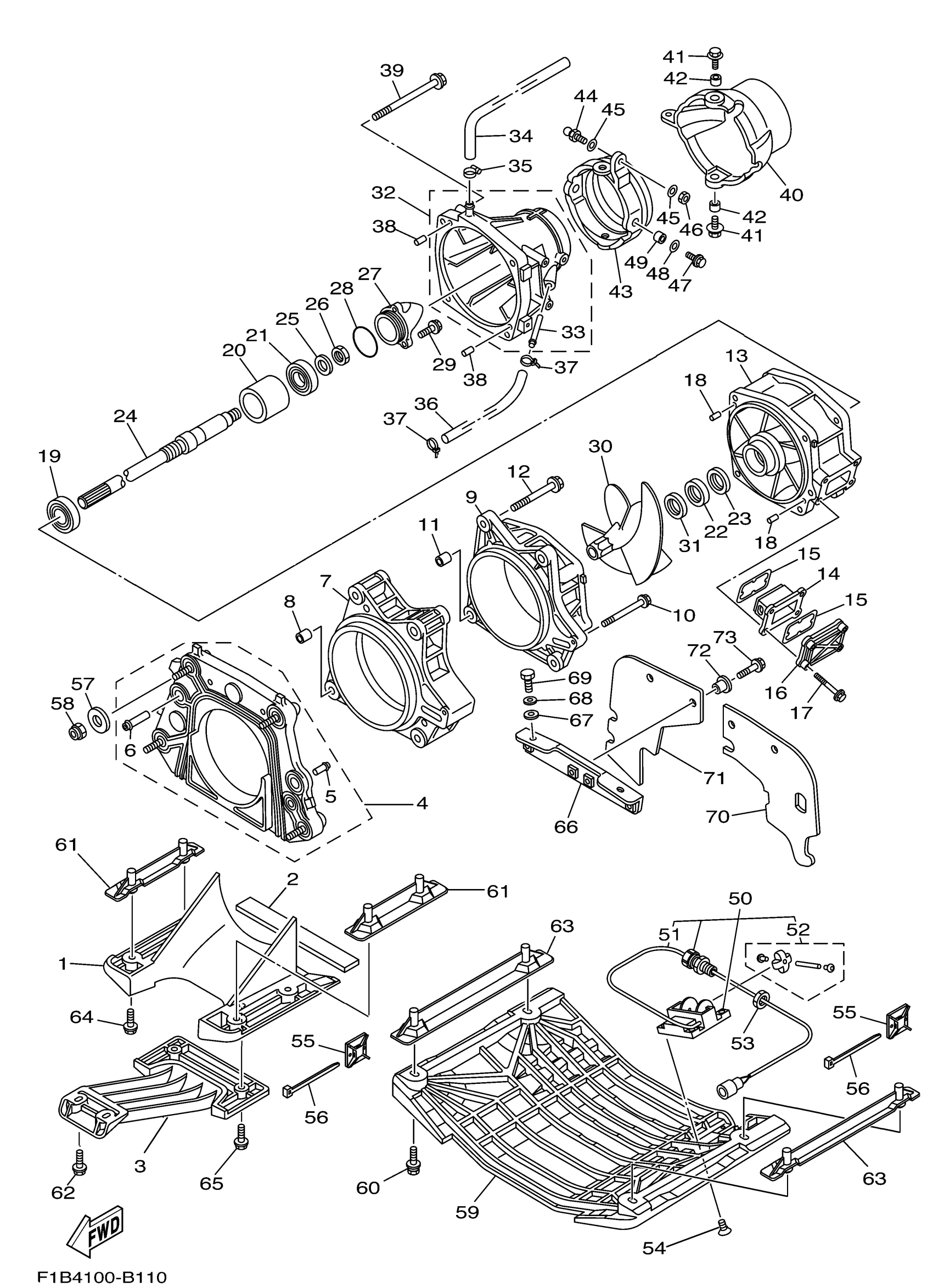

Yamaha FX1000CC (FX140 (Cali.)) F1BA1 2004 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

60E-R1311-00-00

Unavailable

2

FELT, PACKING

66V-R1367-00-00

Unavailable

3

SCREEN, INTAKE

60E-R1333-00-00

Unavailable

4

PLATE, TRANSOM

60E-G5831-01-00

Unavailable

5

. NIPPLE

65A-R1129-00-00

Unavailable

6

. NIPPLE

66V-51129-10-00

$15.89

7

HOUSING, IMPELLER 2

60E-51317-00-00

Unavailable

8

PIN, DOWEL(4JT)

99590-14016-00

$3.41

9

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

10

BOLT, WITH WASHER

90119-06859-00

Unavailable

11

PIN, DOWEL(4JT)

99590-14016-00

$3.41

12

BOLT, WITH WASHER

90119-10813-00

Unavailable

13

DUCT, IMPELLER

66V-51315-01-00

$173.57

14

FILTER

66V-46882-00-00

$5.91

15

. O-RING

66V-42414-00-00

$5.18

16

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

17

BOLT,WITH WASHER

90119-06898-00

$3.43

18

PIN, DOWEL (614)

93606-12019-00

Unavailable

19

BEARING (6K8)

93306-205U1-00

Unavailable

20

SPACER 1

65V-45538-00-00

$29.88

21

BEARING

93306-304XB-00

$17.22

22

OIL SEAL

93101-28M66-00

Unavailable

23

OIL SEAL

93101-28002-00

$13.40

24

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

25

WASHER

9299R-16600-00

Unavailable

26

NUT

95317-16700-00

$4.55

27

CAP KIT

65A-R1326-10-KT

Unavailable

28

. O-RING

93210-46M16-00

$7.15

29

BOLT,WITH WASHER

90119-06890-00

$1.07

30

IMPELLER

68N-R1321-00-00

$757.56

31

SPACER

66V-R1348-10-00

$12.91

32

NOZZLE

60E-51318-00-94

Unavailable

33

. NIPPLE,HOSE

63M-51334-00-00

$21.95

34

HOSE (L310)

90445-16M09-00

Unavailable

35

BAND, HOSE 18

90601-118UF-00

$2.07

36

HOSE (L330)

90445-14804-00

$1.52

37

CLAMP

90465-10098-00

$1.68

38

PIN, DOWEL (614)

93606-12019-00

Unavailable

39

BOLT, WITH WASHER

90119-10807-00

$5.44

40

NOZZLE, DEFLECTOR

60E-51313-00-00

$199.98

41

BOLT, WITH WASHER

90119-08852-00

$3.79

42

COLLAR(6R7)

90387-08M06-00

Unavailable

43

RING,TRIM

60E-51190-00-94

Unavailable

44

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

45

WASHER,PLATE

90201-068M4-00

Unavailable

46

NUT

9538R-06700-00

$1.01

47

BOLT, FLANGE

90105-08837-00

Unavailable

48

WASHER, PLATE

90202-10M56-00

$3.29

49

COLLAR(6U1)

90387-08M19-00

Unavailable

50

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

51

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

52

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63

53

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

54

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

55

BASE, CLAMP

90600-900U6-00

Unavailable

56

CLAMP(JN6)

90464-40825-00

Unavailable

57

WASHER

F1S-U725E-01-00

$7.89

58

NUT, NYLON

9572R-10300-00

$3.37

59

PLATE 2

F1B-U273B-02-00

Unavailable

60

BOLT, WITH WASHER

90119-08829-00

$3.88

61

BRACKET 1

F1G-U8571-02-00

$15.07

62

BOLT, WITH WASHER

90119-06896-00

$5.03

63

BRACKET 2

F1B-U8572-01-00

$15.14

64

BOLT, WITH WASHER

90119-08829-00

$3.88

65

BOLT,WITH WASHER

90119-06890-00

$1.07

66

BRACKET

F1B-67557-00-00

Unavailable

67

GASKET

90430-12002-00

$1.81

68

WASHER, PLATE

90201-12017-00

Unavailable

69

BOLT

90109-08043-00

$4.09

70

PLATE, RUBBER 1

F1B-6757E-10-00

Unavailable

71

PLATE, RUBBER 2

F1B-6757F-10-00

Unavailable

72

COLLAR

90387-06080-00

$7.27

73

BOLT, WITH WASHER

90119-06827-00

Unavailable
