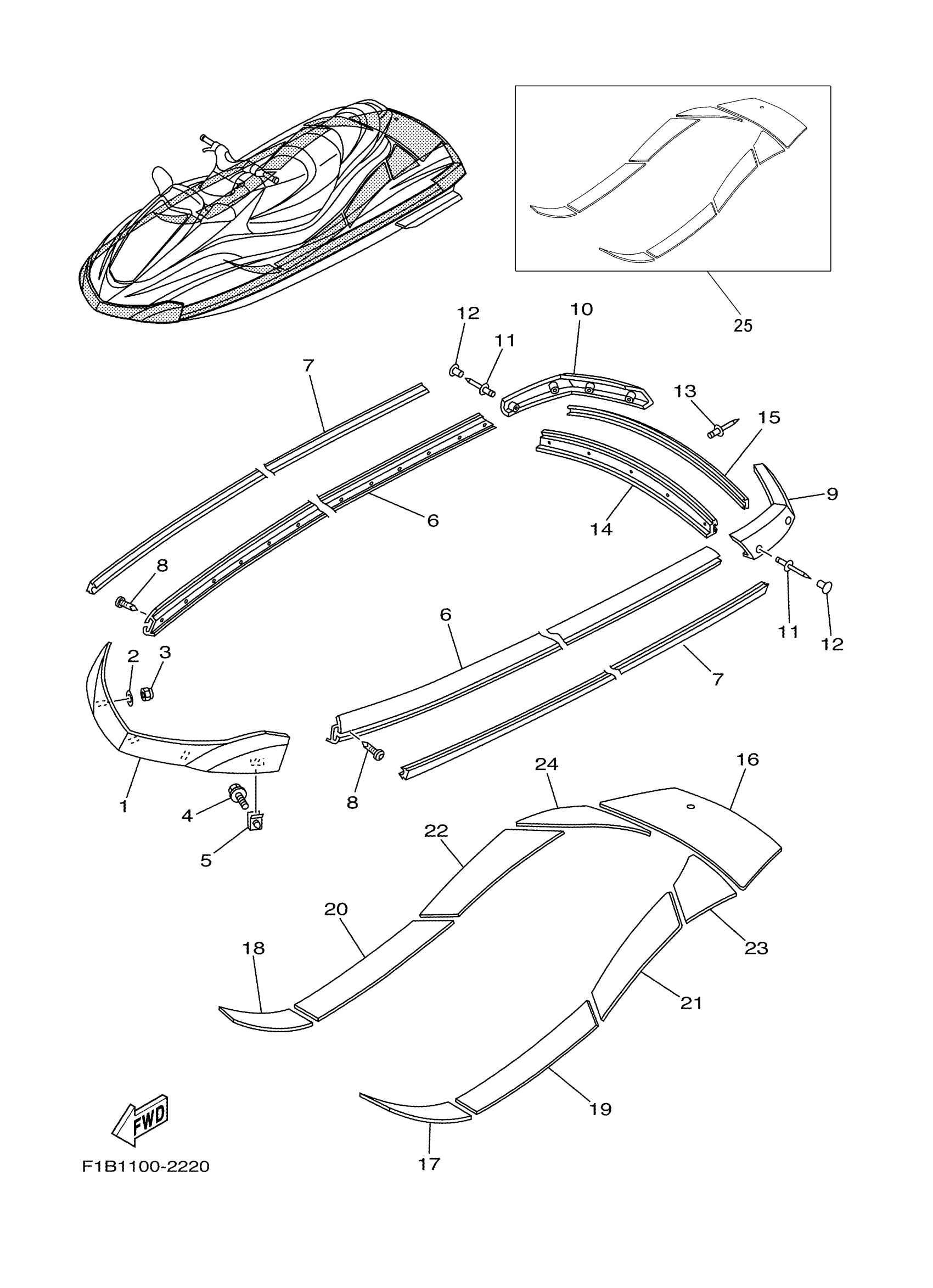

Yamaha FX1000CC (FX140 (Cali.)) F1BA1 2004 GUNWALE MAT Diagram
#
1
BOW GUNWALE KIT (BLACK)
F1S-WU250-00-00
Unavailable
1
BOW GUNWALE KIT (GRAY)
F1S-WU250-10-00
Unavailable
2
WASHER
9299R-06200-00
Unavailable
3
NUT, NYLON
9572R-06300-00
Unavailable
4
BOLT, WITH WASHER
90119-06892-00
Unavailable
5
NUT, SPRING(GJ3)
90183-06902-00
$11.49
6
GUNWALE, SIDE
F1B-U2512-00-00
Unavailable
6
GUNWALE, SIDE
F1B-U2512-10-00
Unavailable
7
INNER,GUNWALE
F1B-U2519-00-00
Unavailable
7
INNER,GUNWALE
F1B-U2519-10-00
Unavailable
8
SCREW,TAPPING
90169-059U1-00
Unavailable
9
GUNWALE, STERN 1
F1B-U251D-02-00
Unavailable
9
GUNWALE, STERN 1
F1B-U251D-10-00
Unavailable
10
GUNWALE, STERN 2
F1B-U251E-02-00
Unavailable
10
GUNWALE, STERN 2
F1B-U251E-10-00
Unavailable
11
RIVET, BLIND
90267-489UT-00
Unavailable
12
PLUG, MUSHROOM
F0D-U352E-10-00
Unavailable
13
RIVET, BLIND
90267-489US-00
Unavailable
14
COVER, GUNWALE 1
F1B-U252C-00-00
Unavailable
14
COVER, GUNWALE 1
F1B-U252C-10-00
Unavailable
15
COVER, GUNWALE 2
F1B-U252D-01-00
Unavailable
15
COVER, GUNWALE 2
F1B-U252D-10-00
Unavailable
16
MAT, UPPER
F1B-U3581-01-00
Unavailable
17
MAT, STEP 1
F1B-U351H-01-00
Unavailable
18
MAT, STEP 2
F1B-U351J-01-00
Unavailable
19
MAT, STEP 3
F1B-U351K-01-00
Unavailable
20
MAT, STEP 4
F1B-U351M-01-00
Unavailable
21
MAT, STEP 5
F1B-U351N-02-00
Unavailable
22
MAT, STEP 6
F1B-U351P-02-00
Unavailable
23
MAT, STEP 7
F1B-U351R-01-00
Unavailable
24
MAT, STEP 8
F1B-U351S-01-00
Unavailable
25
MAT KIT BLACK
F1S-MATKT-00-BK
Unavailable
