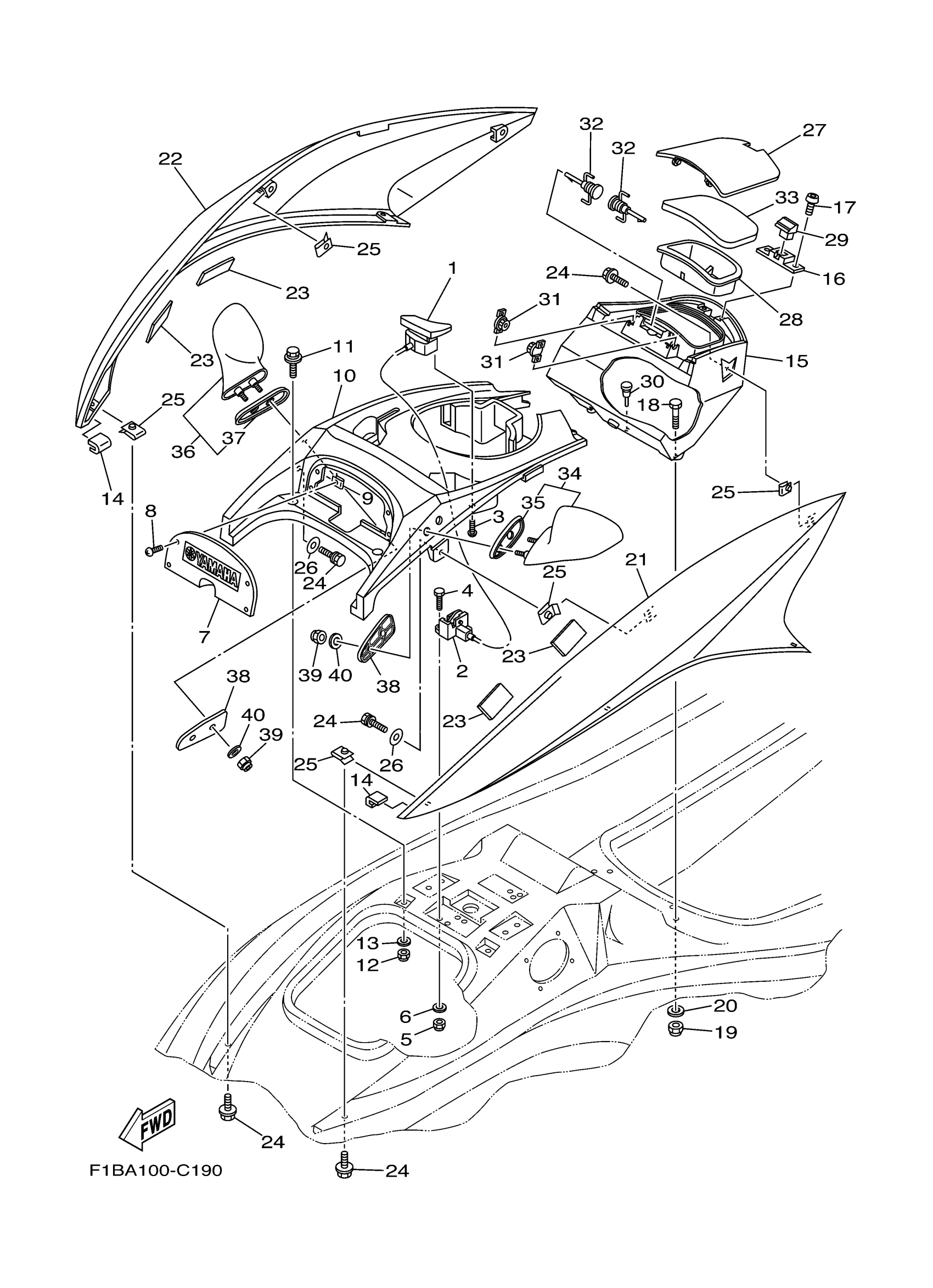

Yamaha FX1000CC (FX140 (Cali.)) F1BA1 2004 ENGINE HATCH 1 Diagram

#

Description
Price

1

LEVER, LID LOCK

F1B-651A1-00-00

Unavailable

2

LOCK, LID

F1B-6517C-01-00

Unavailable

3

SCREW

90149-05946-00

Unavailable

4

BOLT, WITH WASHER

90119-06824-00

Unavailable

5

NUT, NYLON

9572R-06300-00

Unavailable

6

WASHER

9299R-06200-00

Unavailable

7

SEAL, COVER CENTER

F1B-U555B-00-00

Unavailable

8

SCREW,TRASS HEAD (FJ0)

90149-05959-00

$7.49

9

NUT

FJ0-61432-00-00

Unavailable

10

COVER, CENTER

F1B-U5554-13-00

Unavailable

11

BOLT, WITH WASHER(GH1)

90119-06934-00

Unavailable

12

NUT, NYLON

9572R-06300-00

Unavailable

13

WASHER

9299R-06200-00

Unavailable

14

TRIM, HATCH 1

F1B-U5115-00-00

Unavailable

15

BOX GLOVE (YAMAHA BLACK)

F1B-U516P-00-00

Unavailable

16

PLATE

F1B-65193-00-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06033-00

Unavailable

18

BOLT, HEXAGON (FJ1)

97080-08030-00

Unavailable

19

NUT, NYLON (6J8)

95780-08300-00

Unavailable

20

WASHER

9299R-08200-00

Unavailable

21

COVER, SIDE 1

F1B-U377B-30-P0

Unavailable

21

COVER, SIDE 1

F1B-U377B-40-P0

Unavailable

22

COVER, SIDE 2

F1B-U377C-30-P0

Unavailable

22

COVER, SIDE 2

F1B-U377C-40-P0

Unavailable

23

MAT 2

GJ1-U759C-00-00

Unavailable

24

BOLT,WITH WASHER

90119-068B8-00

Unavailable

25

NUT, SPRING(GJ3)

90183-06902-00

Unavailable

26

. WASHER, PLATE

90201-068G7-00

Unavailable

27

LID HATCH

F1B-U517H-00-00

Unavailable

28

HOLDER, DRINK

F1B-U5633-01-00

Unavailable

29

LOCK

F0D-62875-00-00

Unavailable

30

. PLUG

90605-502U2-00

Unavailable

31

GEAR ASSY

F1B-60210-00-00

Unavailable

32

PIN, HINGE

F1B-6517R-00-00

Unavailable

33

PACKING CASE

F1B-U519D-00-00

Unavailable

34

MIRROR LH (BLACK)

F0V-U596B-04-00

Unavailable

35

. SPACER 1

F0V-U471E-00-00

Unavailable

36

MIRROR RH (BLACK)

F0V-U596C-04-00

Unavailable

37

. SPACER 2

F0V-U471F-00-00

Unavailable

38

PLATE

F1B-U5646-00-00

Unavailable

39

NUT, NYLON (6J8)

95780-08300-00

Unavailable

40

WASHER

9299R-08200-00

Unavailable
