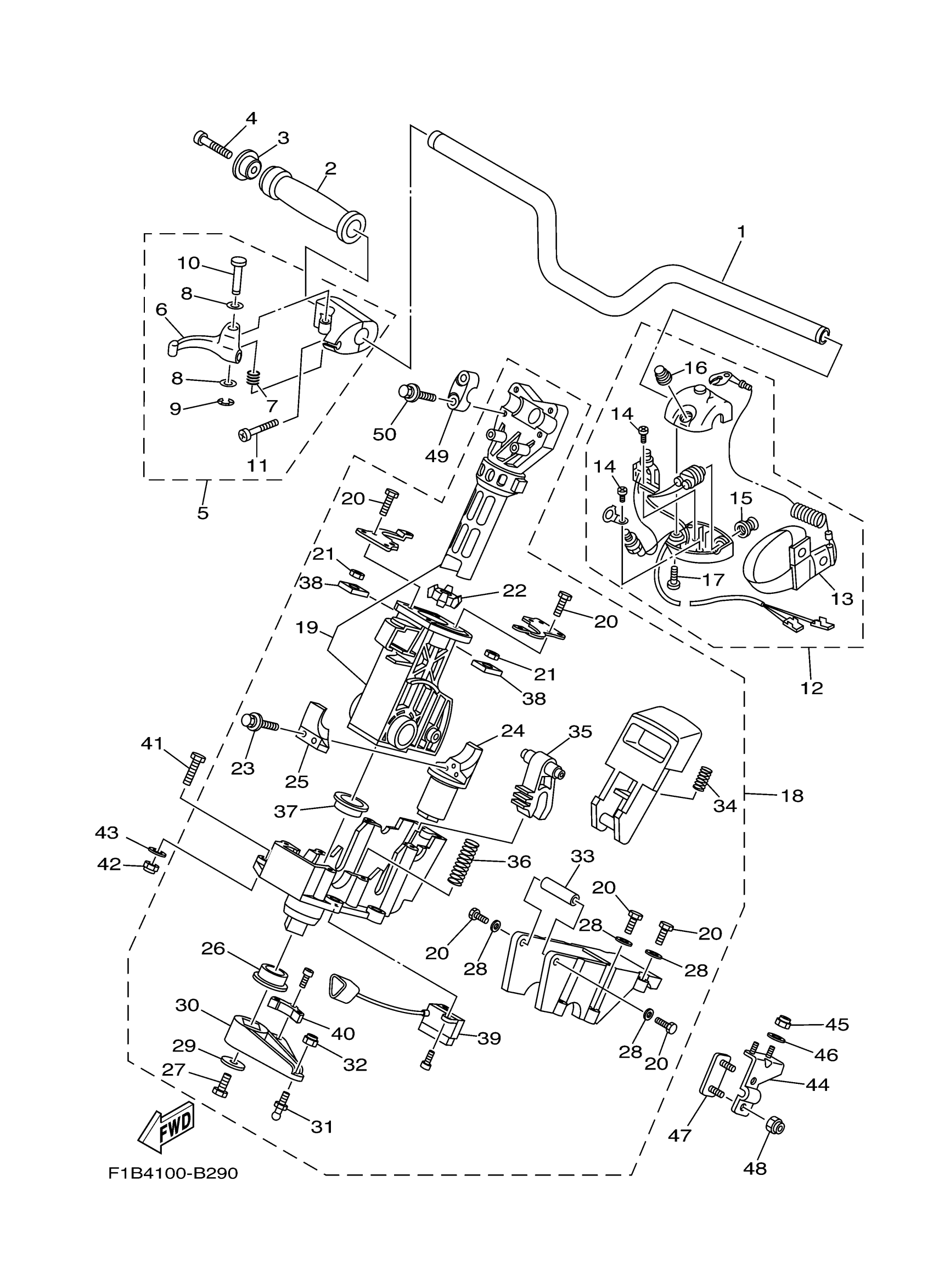

Yamaha FX1000CB (FX140) F1B4 2003 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F1B-61552-00-00

$168.17

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05015-00

Unavailable

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

12

SWITCH BOX ASSY

FK7-68310-07-00

$159.77

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

18

STEERING MASTER ASSY (WITH BUZ

F1B-61400-22-00

Unavailable

19

SHAFT ASSY

F0D-67410-01-00

$204.53

20

. BOLT

F0D-61355-00-00

$5.45

21

. NUT

F0D-6151S-00-00

Unavailable

22

. BALL

F0D-6152R-00-00

Unavailable

23

. BOLT

F0D-62624-00-00

$5.45

24

. SHAFT

F0D-6152D-00-00

$54.49

25

. JOINT, UNIVERSAL

F0D-52543-00-00

$38.49

26

. BUSH

F0D-6134M-00-00

$17.99

27

. BOLT, SPECIAL

F0D-6491K-00-00

$7.27

28

. WASHER

F0D-6134E-00-00

$5.45

29

WASHER, PLAIN

92990-08200-00

$2.36

30

. ARM, STEERING

F1B-6151B-10-00

Unavailable

31

STUD, JOINT BALL

EU0-61461-02-00

$14.38

32

NUT, SELF-LOCKING

95720-06300-00

$1.82

33

. CONNECTOR

F0D-61574-00-00

$16.99

34

. SPRING

F0D-61349-00-00

$16.99

35

. LOCK 1

F0D-61782-00-00

$47.99

36

. SPRING

F0D-6134K-00-00

$17.99

37

. BUSH

F0D-62814-00-00

$1.09

38

. HOLDER

F0D-6724H-00-00

$9.08

39

. SENSOR MAGNET

F1B-6838B-00-00

Unavailable

40

. MAGNET

F1B-6838C-00-00

$22.71

41

BOLT (62K)

97095-08035-00

Unavailable

42

NUT, NYLON (6J8)

95780-08300-00

$10.55

43

WASHER, PLATE

90201-099U3-00

$2.16

44

BRACKET, STOPPER CABLE

F1B-61467-00-00

Unavailable

45

NUT, NYLON

9572R-06300-00

$2.80

46

WASHER

9299R-06200-00

$0.43

47

STOPPER, CABLE

F1B-61468-00-00

Unavailable

48

NUT, NYLON

9572R-06300-00

$2.80

49

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

50

BOLT, WITH WASHER

90119-089U1-00

$3.23
