CONTROL CABLE

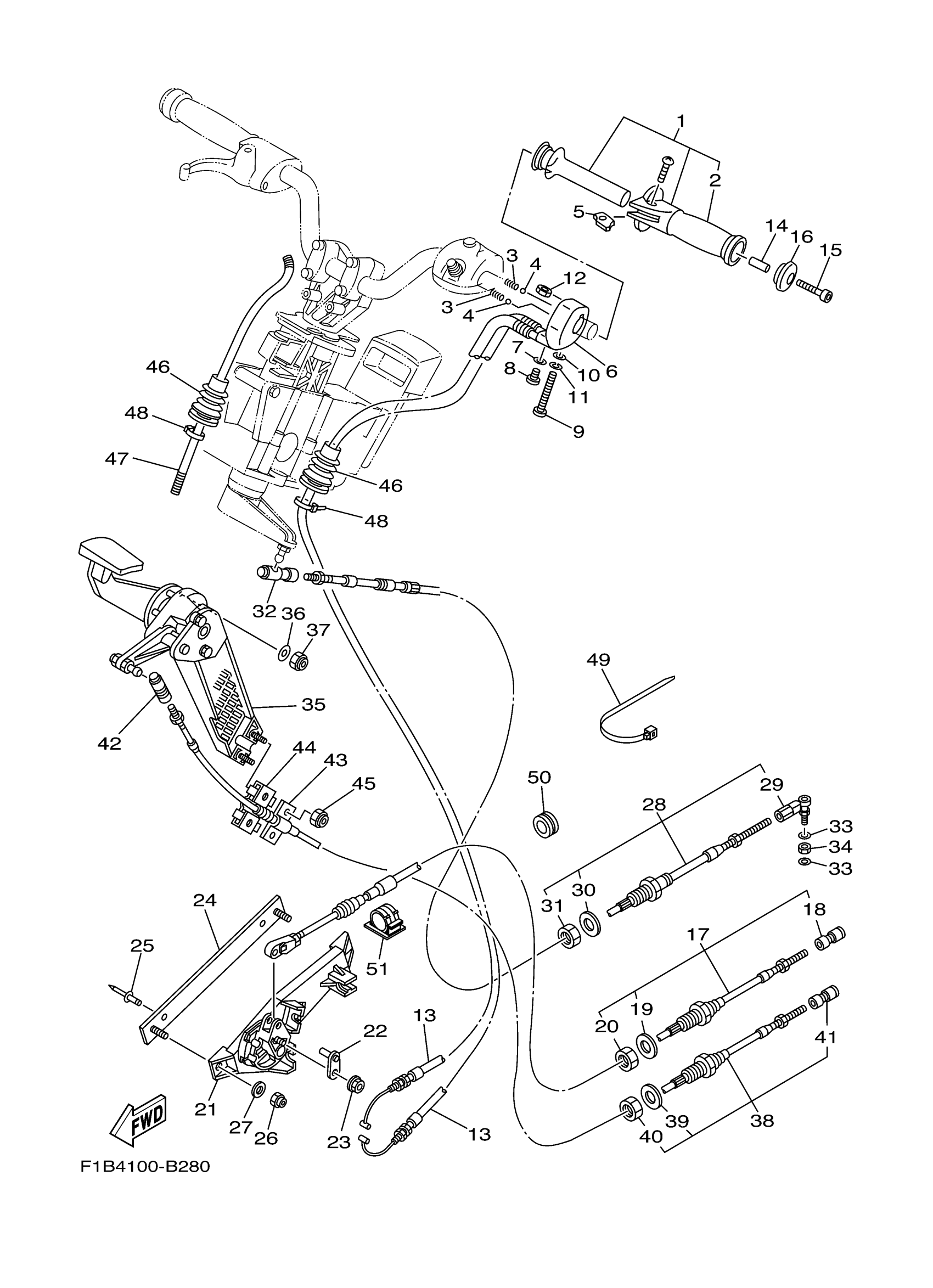

2003 Yamaha FX140 (FX1000CB) Control Cable Diagram
Find the part on the Control Cable diagram for your 2003 Yamaha FX140 (FX1000CB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
4
BALL
GP7-U152R-00-00
5
LEVER ASSY
GP7-U151M-00-00
6
HOUSING ASSY
GP7-U152M-00-00
9
SCREW PAN HEAD
98580-06565-00
11
WASHER
9299R-06100-00
12
NUT, SPECIAL
GH1-U143B-00-00
13
CABLE, NOZZLE CONTROL 2
F1B-U153D-01-00
15
BOLT, HEXAGON SOCKET HEAD
90110-05015-00
17
CABLE,NOZZLE CONTR
F1S-6153E-01-00
21
REMOCON,NOZZLE 2
F0D-U153J-10-00
22
PIN
F0D-U152C-10-00
24
BASE, REMOCON.
F0X-U4958-00-00
28
CABLE, STEERING
F1B-61481-04-00
34
NUT
9538R-06700-00
38
CABLE,REVERSE
F1B-6149C-03-00
51
CLAMP
90600-925U9-00
