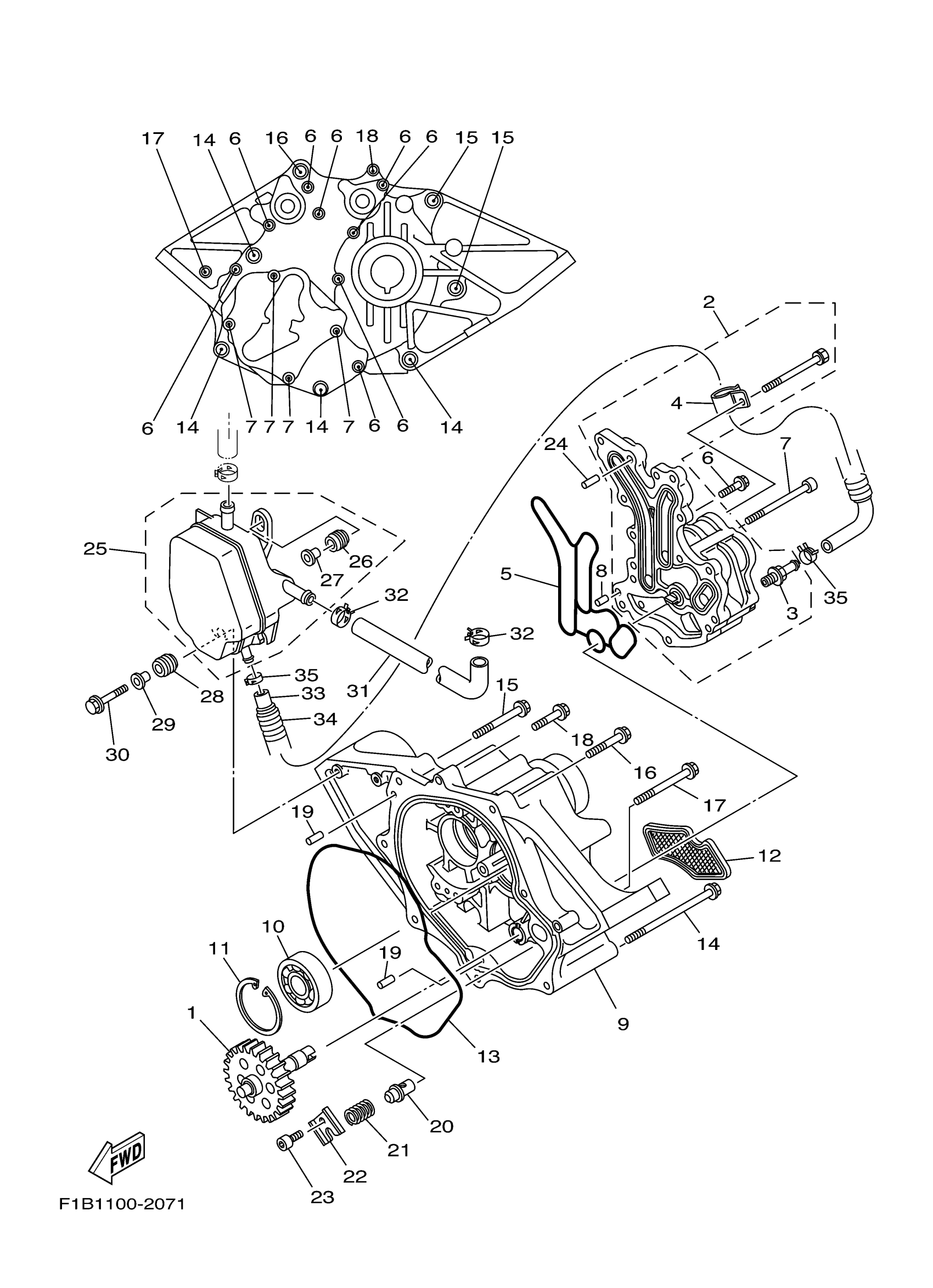

Yamaha FX1000CB (FX140) F1B4 2003 OIL PUMP Diagram
#
1
DRIVEN GEAR ASSY
60E-13360-00-00
Unavailable
2
OIL PUMP ASSY
60E-13300-01-00
Unavailable
3
. BOLT, BREATHER
60E-13185-00-00
Unavailable
4
. CLAMP
90462-08019-00
Unavailable
5
GASKET
60E-13563-00-00
Unavailable
6
BOLT, WITH WASHER(61B)
97513-06525-00
$1.49
7
BOLT, WITH WASHER
90119-08067-00
Unavailable
8
PIN, DOWEL (614)
93606-12019-00
$4.24
9
COVER, PUMP GEAR
60E-13327-10-00
Unavailable
10
BEARING
93306-30441-00
$63.99
11
CIRCLIP(26H)
99009-52500-00
$12.49
12
STRAINER, OIL
60E-13411-01-00
Unavailable
13
. O-RING
93211-95001-00
Unavailable
14
BOLT, WITH WASHER
90119-08045-00
Unavailable
15
BOLT, WITH WASHER
90119-08034-00
Unavailable
16
BOLT, WITH WASHER
90119-08043-00
Unavailable
17
BOLT, WITH WASHER
97513-06555-00
Unavailable
18
BOLT, WITH WASHER (62X)
97513-06535-00
Unavailable
19
PIN, DOWEL
93608-16M16-00
Unavailable
20
PLUNGER, RELIEF
60E-13483-00-00
Unavailable
21
SPRING, RELIEF
4WM-13484-00-00
Unavailable
22
WASHER, CLAW
90214-06029-00
Unavailable
23
BOLT,SOCKET
91317-06016-00
Unavailable
24
PIN, DOWEL
93606-25M00-00
Unavailable
25
SEPERATOR, OIL
60E-11164-00-00
Unavailable
26
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
27
. COLLAR
90387-06119-00
Unavailable
28
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
29
. COLLAR
90387-06119-00
Unavailable
30
BOLT, WITH WASHER
90119-06294-00
Unavailable
31
PIPE, BREATHER 3
60E-11126-01-00
Unavailable
32
CLIP
90467-170A0-00
Unavailable
33
PIPE, BREATHER 4
60E-11125-02-00
Unavailable
34
HOSE
90446-17M75-00
Unavailable
35
CLIP
90467-110A1-00
Unavailable
