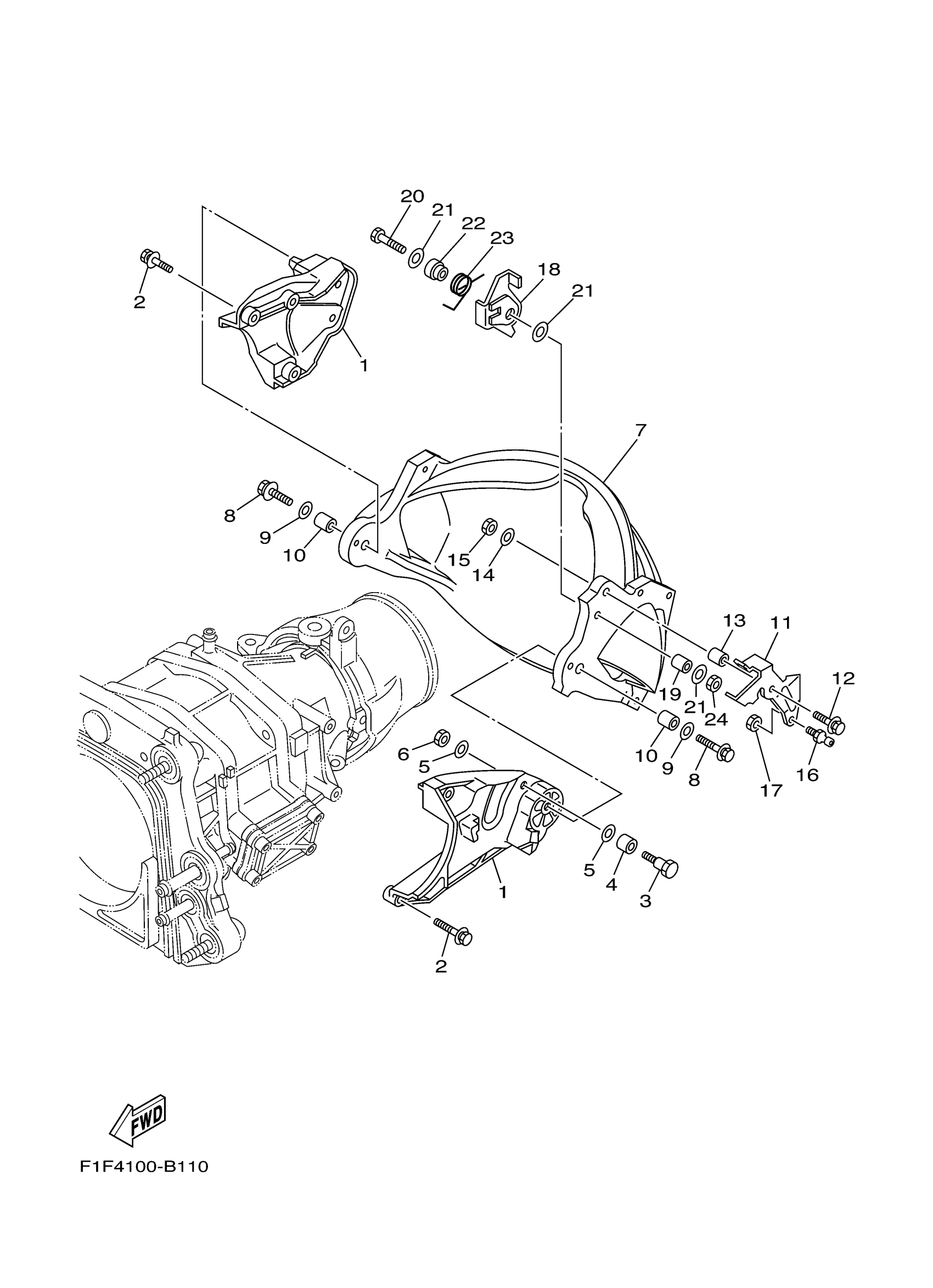

Yamaha FX1000CB (FX140) F1B4 2003 JET UNIT 3 Diagram

#

Description

Price

1

BRACKET 1

66V-51341-00-94

Unavailable

2

BOLT, WITH WASHER

90119-06892-00

Unavailable

3

BOLT

90109-08851-00

Unavailable

4

COLLAR

90387-10M09-00

$16.99

5

WASHER

9299R-08600-00

Unavailable

6

NUT

9538R-08600-00

Unavailable

7

GATE, REVERSE

99999-03375-00

Unavailable

8

BOLT, WITH WASHER

90119-08841-00

Unavailable

9

WASHER, FENDER MOLD

90201-088T2-00

Unavailable

10

COLLAR

90387-08M30-00

Unavailable

11

LEVER, SHIFT ROD

66V-44121-00-00

Unavailable

12

BOLT,WITH WASHER

90119-06890-00

Unavailable

13

COLLAR

90387-06M74-00

Unavailable

14

WASHER, PLATE

90201-068T1-00

Unavailable

15

NUT

9538R-06600-00

Unavailable

16

STUD, JOINT BALL

66V-U146E-00-00

Unavailable

17

NUT

9538R-06600-00

Unavailable

18

LEVER, SHIFT ROD

66V-44125-00-00

Unavailable

19

COLLAR

90387-06M74-00

Unavailable

20

BOLT

90101-06833-00

Unavailable

21

WASHER, PLATE

90201-068T1-00

Unavailable

22

COLLAR

90387-06M84-00

Unavailable

23

SPRING, TORSION

90508-14M43-00

Unavailable

24

NUT

9538R-06600-00

Unavailable
