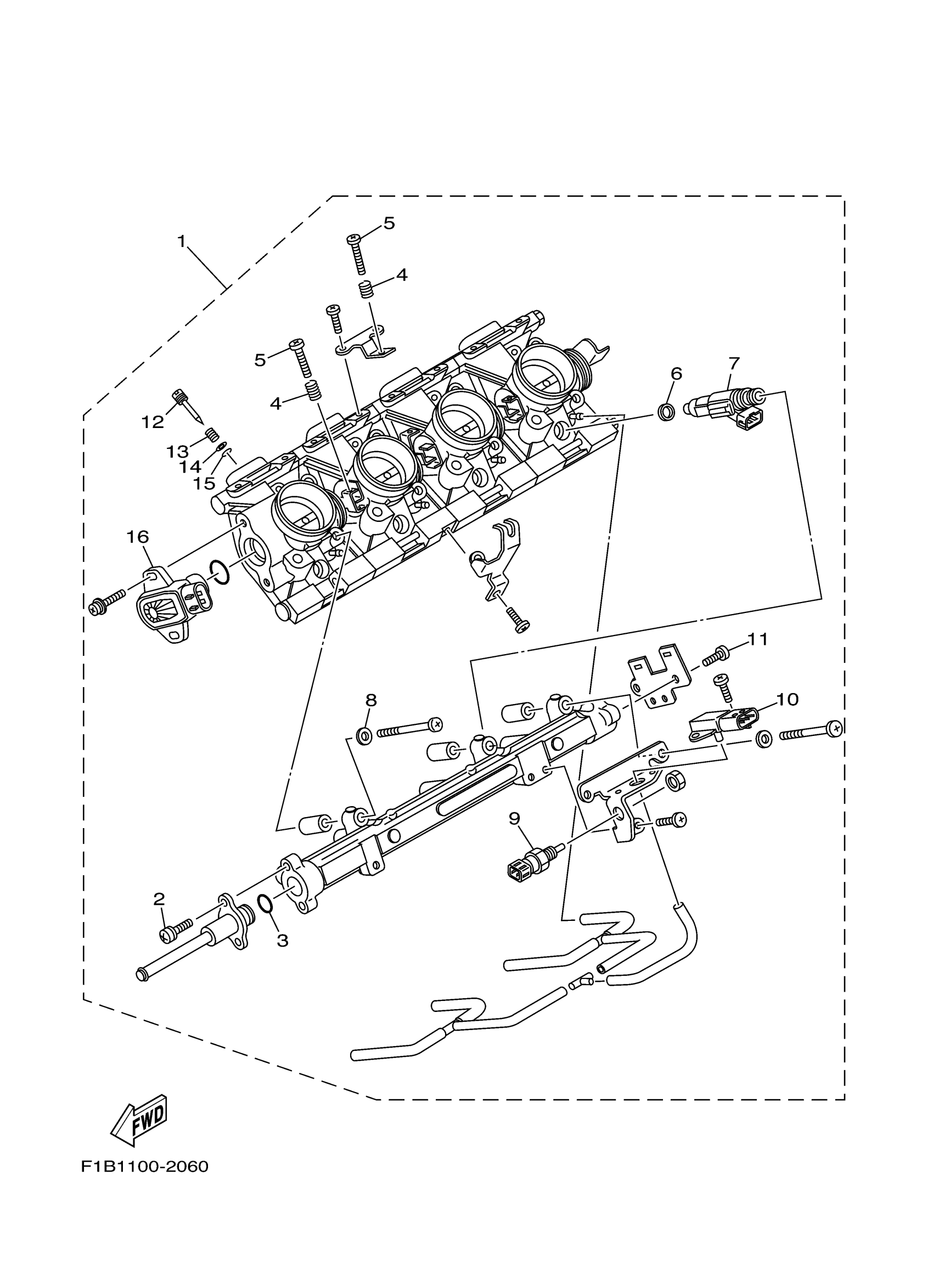

Yamaha FX1000CB (FX140) F1B4 2003 INJECTION PUMP Diagram

#

Description
Price

1

THROTTLE BODY ASSY

60E-13750-11-00

Unavailable

2

. SCREW 3

68V-81147-00-00

Unavailable

3

. O-RING

68V-14397-00-00

Unavailable

4

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

5

. SCREW, THROTTLE

69J-14321-00-00

Unavailable

6

GASKET

90430-09002-00

$11.49

7

. INJECTOR ASSY

60E-13761-00-00

Unavailable

8

. WASHER

4XY-14951-00-00

Unavailable

9

THERMOSENSOR

65L-85886-00-00

Unavailable

10

SENSOR, PRESSURE

60E-82380-00-00

Unavailable

11

. SCREW, PAN HEAD

97890-05008-00

Unavailable

12

. SCREW, PILOT

4BH-14923-00-00

Unavailable

13

. SPRING, AIR ADJUSTING

4BH-14134-00-00

Unavailable

14

WASHER

3L5-14962-00-00

$8.99

15

O-RING, PILOT SCREW

3H1-14147-00-00

$8.99

16

. THROTTLE SENSOR ASSY

60E-85885-10-00

Unavailable
