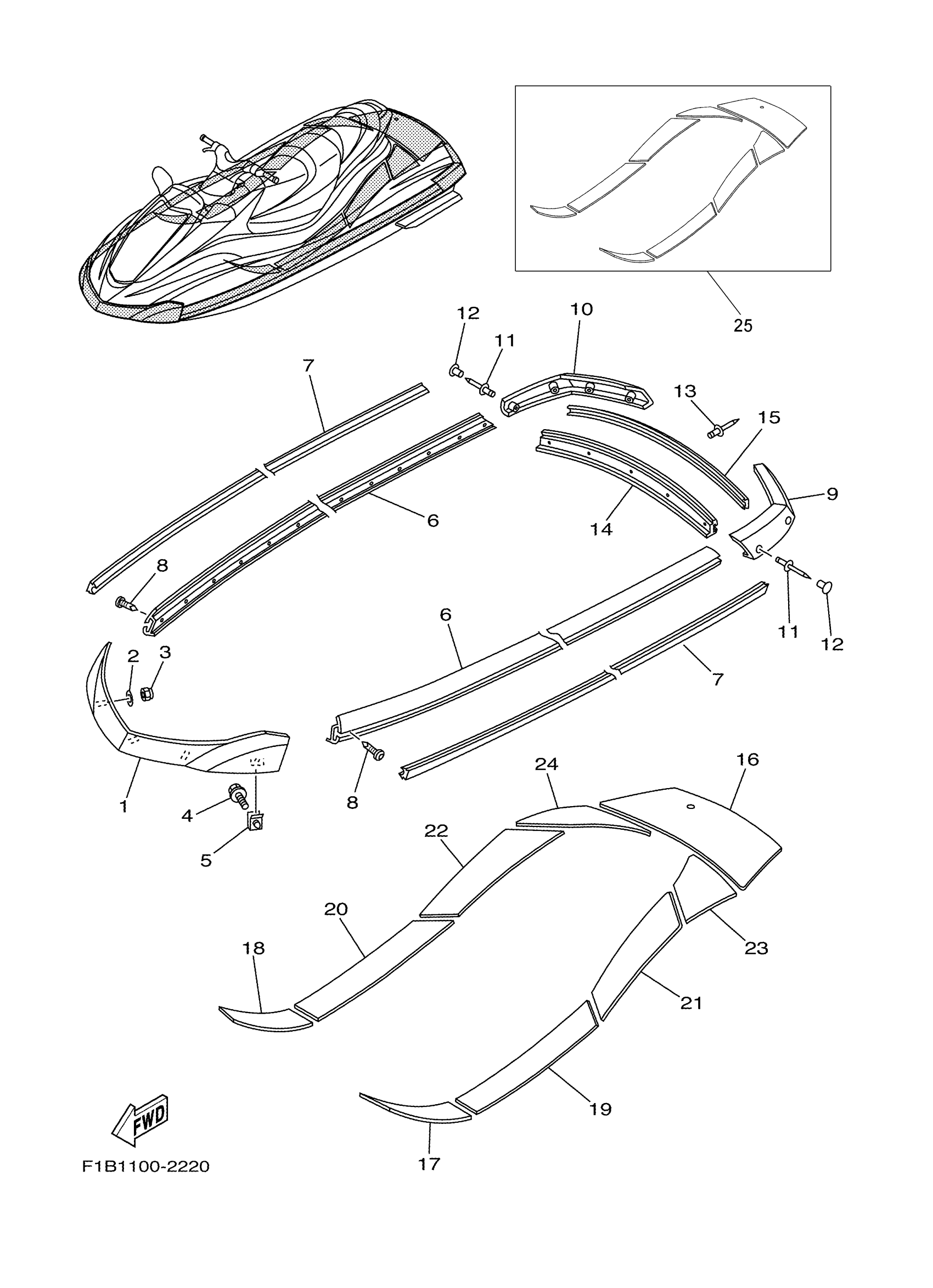

Yamaha FX1000CB (FX140) F1B4 2003 GUNWALE MAT Diagram

#

Description

Price

1

BOW GUNWALE KIT (BLACK)

F1S-WU250-00-00

Unavailable

2

WASHER

9299R-06200-00

Unavailable

3

NUT, NYLON

9572R-06300-00

Unavailable

4

BOLT, WITH WASHER

90119-06892-00

Unavailable

5

NUT, SPRING(GJ3)

90183-06902-00

$11.49

6

GUNWALE, SIDE

F1B-U2512-10-00

Unavailable

7

INNER,GUNWALE

F1B-U2519-10-00

Unavailable

8

SCREW,TAPPING

90169-059U1-00

Unavailable

9

GUNWALE, STERN 1

F1B-U251D-10-00

Unavailable

10

GUNWALE, STERN 2

F1B-U251E-10-00

Unavailable

11

RIVET, BLIND

90267-489UT-00

Unavailable

12

PLUG, MUSHROOM

F0D-U352E-00-00

Unavailable

13

RIVET, BLIND

90267-489US-00

Unavailable

14

COVER, GUNWALE 1

F1B-U252C-10-00

Unavailable

15

COVER, GUNWALE 2

F1B-U252D-10-00

Unavailable

16

MAT, UPPER

F1B-U3581-01-00

Unavailable

17

MAT, STEP 1

F1B-U351H-01-00

Unavailable

18

MAT, STEP 2

F1B-U351J-01-00

Unavailable

19

MAT, STEP 3

F1B-U351K-01-00

Unavailable

20

MAT, STEP 4

F1B-U351M-01-00

Unavailable

21

MAT, STEP 5

F1B-U351N-02-00

Unavailable

22

MAT, STEP 6

F1B-U351P-02-00

Unavailable

23

MAT, STEP 7

F1B-U351R-01-00

Unavailable

24

MAT, STEP 8

F1B-U351S-01-00

Unavailable

25

MAT KIT BLACK

F1S-MATKT-00-BK

Unavailable
