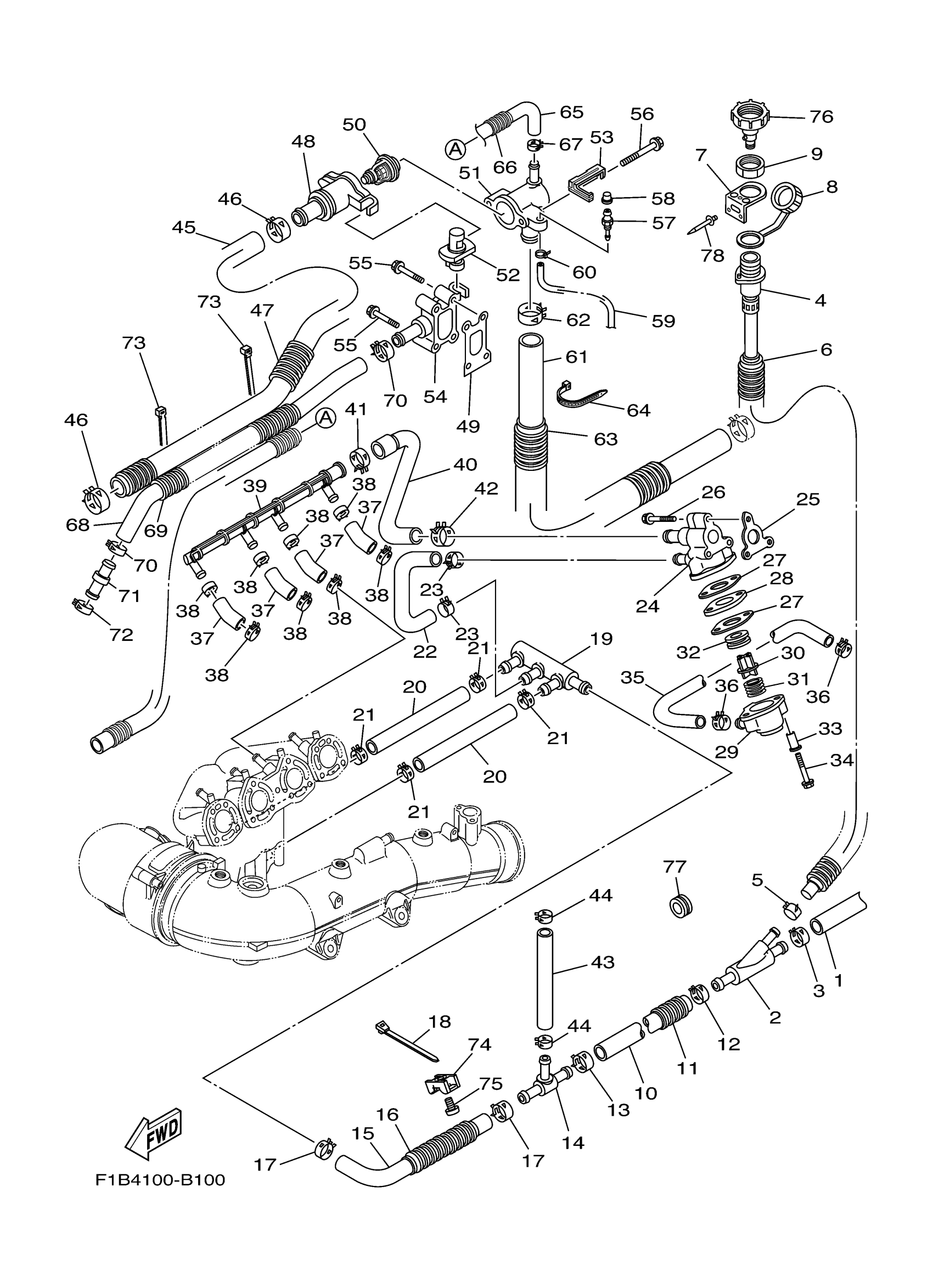

Yamaha FX1000CB (FX140) F1B4 2003 EXHAUST 2 Diagram

#

Description
Price

1

HOSE 1

60E-1243A-00-00

Unavailable

2

JOINT, HOSE 1

60E-12581-00-00

$11.77

3

CLIP

90467-200A0-00

$7.59

4

JOINT ASSY

60E-12580-00-00

Unavailable

5

CLIP

90467-150A0-00

$3.41

6

HOSE

90446-24M83-00

Unavailable

7

STAY

60E-12443-00-00

$3.03

8

CAP,1

682-84385-01-00

$7.21

9

NUT

EU0-61652-00-00

$11.77

10

HOSE

90445-21003-00

Unavailable

11

HOSE, WITH SPRING (L300)

90447-22003-00

$4.41

12

CLIP

90467-200A0-00

$7.59

13

CLIP

90467-200A0-00

$7.59

14

JOINT, HOSE 3

60E-12584-00-00

$6.18

15

HOSE 2

60E-1243E-00-00

$70.57

16

HOSE, WITH SPRING (L100)

90447-22001-00

$6.21

17

CLIP

90467-200A0-00

$7.59

18

CLAMP

90464-55001-00

$5.29

19

JOINT, HOSE 2

60E-12582-00-00

Unavailable

20

HOSE (L150)

90445-18003-00

$10.99

21

CLIP

90467-160A0-00

$3.03

22

HOSE,3

6B6-1243F-00-00

$41.16

23

CLIP

90467-160A0-00

$3.03

24

JOINT

60E-12479-00-94

$148.51

25

GASKET

60E-12434-00-00

Unavailable

26

BOLT, HEXAGON W/W DEEP RECESS

97E95-06545-00

Unavailable

27

GASKET, COVER

60E-12414-00-00

$3.53

28

PLATE

60E-12535-00-00

$8.81

29

COVER, HOUSING

60E-12422-00-00

Unavailable

30

VALVE, PRESSURE CONTROL

6G5-12416-00-00

Unavailable

31

SPRING, COMPRESSION

90501-16M11-00

$6.07

32

GROMMET

90480-20M05-00

$3.42

33

COLLAR

90387-06M65-00

$8.56

34

BOLT, HEXAGON W/W DEEP RECESS

97E95-06540-00

Unavailable

35

HOSE (L350)

90445-18M13-00

Unavailable

36

CLIP

90467-160A0-00

$3.03

37

HOSE 1

60E-12576-00-00

Unavailable

38

. CLIP

90467-150A1-00

$3.41

39

JOINT 1

60E-12469-00-00

$20.89

40

HOSE 2

60E-12577-00-00

Unavailable

41

CLIP

90467-22002-00

$3.97

42

CLIP

90467-200A0-00

$7.59

43

HOSE (L130)

90445-18004-00

$6.07

44

CLIP

90467-160A0-00

$3.03

45

HOSE 3

60E-12578-00-00

Unavailable

46

CLIP

90467-240A0-00

$5.69

47

HOSE, WITH SPRING

90447-28003-00

Unavailable

48

HOUSING, THERMOSTAT

60E-12417-10-94

Unavailable

49

GASKET

60E-12435-00-00

$3.03

50

THERMOSTAT

60E-12411-01-00

$100.65

51

COVER, THERMOSTAT

60E-12413-10-94

$110.28

52

JOINT

60E-12499-00-00

$16.90

53

BRACKET 1

60E-1244F-00-00

Unavailable

54

JOINT

60E-12446-00-94

$111.75

55

BOLT, FLANGE

90105-06035-00

$2.01

56

BOLT, FLANGE

90105-06035-00

$2.01

57

NIPPLE, GREASE

61L-5169A-00-00

$8.81

58

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

59

HOSE, DELIVERY

6AP-5110K-00-00

Unavailable

60

CLAMP

90465-10098-00

$2.24

61

HOSE (L900)

90445-25003-00

Unavailable

62

CLIP

90467-240A0-00

$5.69

63

TUBE (L800)

90447-28002-00

Unavailable

64

CLAMP

90465-13M18-00

$1.53

65

HOSE 8

6P6-12552-00-00

Unavailable

66

TUBE (L1150)

90447-22002-00

$22.04

67

CLIP

90467-120A0-00

$4.41

68

HOSE (L530)

90445-21004-00

$24.99

69

HOSE(63M)

90446-27M55-00

Unavailable

70

CLIP

90467-200A0-00

$7.59

71

CONNECTION

60E-51142-00-00

$3.09

72

CLIP

90467-200A0-00

$7.59

73

CLAMP

90465-14M66-00

Unavailable

74

BRACKET 1

60E-1244E-00-00

$7.06

75

SCREW, WITH WASHER(6L2)

97985-05210-00

Unavailable

76

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

77

GROMMET

90480-38800-00

$2.65

78

RIVET, BLIND

90267-48802-00

$1.98
