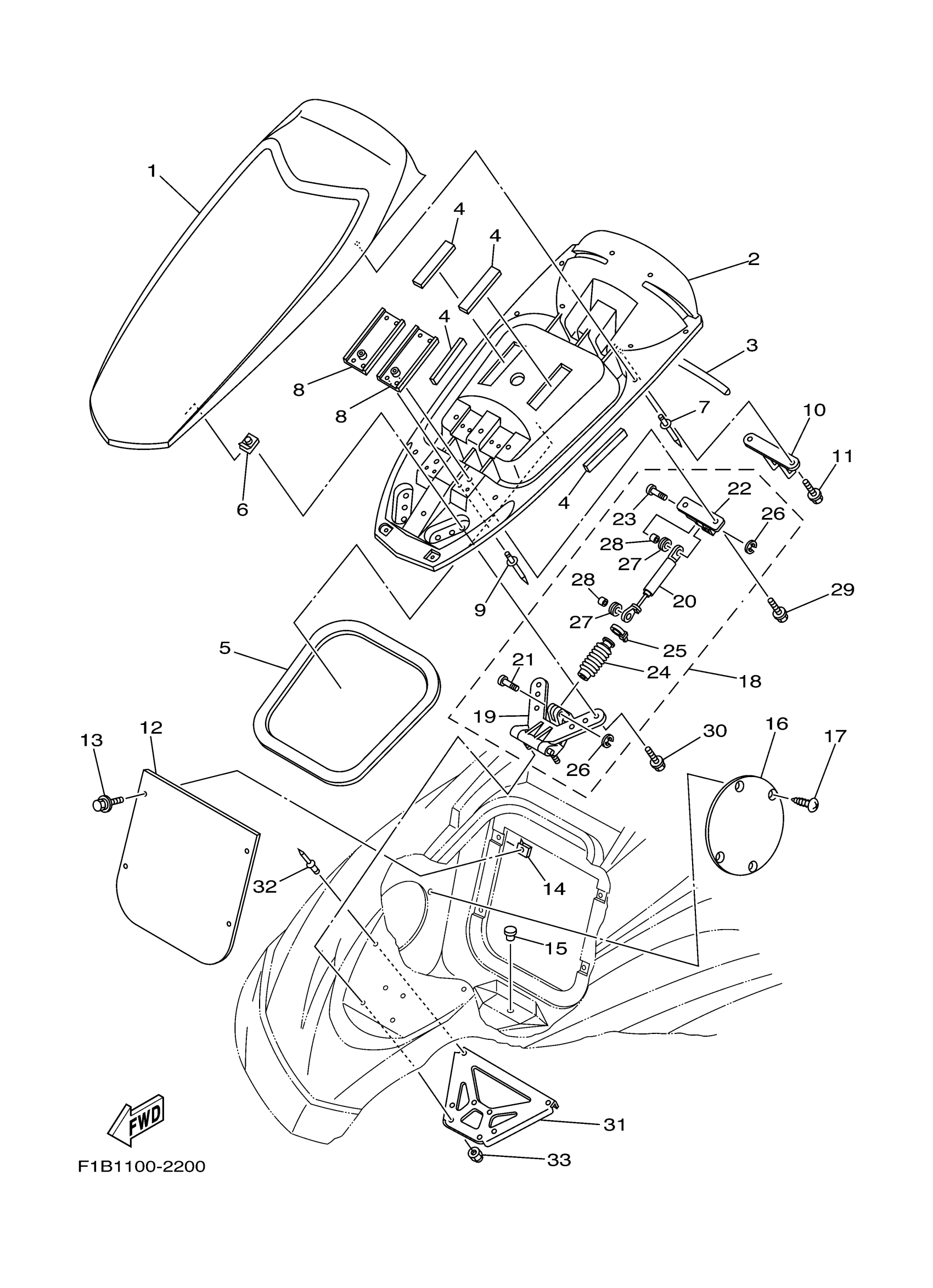

Yamaha FX1000CB (FX140) F1B4 2003 ENGINE HATCH 2 Diagram

#

Description

Price

1

LID, ENGINE ROOM(DPBMP)

F1B-U517B-19-P1

Unavailable

1

LID,ENG.ROOM(BLACK MET.)

F1B-U517B-29-P0

Unavailable

2

VENTILATOR COVER C

F1B-U2103-01-00

Unavailable

3

PACKING 3

F1B-U266B-00-00

Unavailable

4

TAPE, FITTING

F0V-U3635-00-00

Unavailable

5

PACKING 1

F1B-U2663-00-00

Unavailable

6

NUT, SPRING(GJ3)

90183-06902-00

$11.49

7

RIVET, BLIND

90267-48807-00

Unavailable

8

PLATE, HATCH

F1B-65148-00-00

Unavailable

9

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

10

HOOK, LID LOCK

F0X-6517F-01-00

Unavailable

11

BOLT, WITH WASHER

90119-06830-00

Unavailable

12

PLATE, LOCKER BOW

F1B-U475F-00-00

Unavailable

13

BOLT, WITH WASHER

90119-06830-00

Unavailable

14

NUT, SPRING(GJ3)

90183-06902-00

$11.49

15

. PLUG, BLIND

90605-502U1-00

Unavailable

16

COVER, INSPECTION 2

GP1-U7228-00-00

Unavailable

17

SCREW, TAPPING

9778R-40712-00

Unavailable

18

HINGE ASSY.

F1B-6515A-01-00

Unavailable

19

. HINGE, LID

F1B-6517D-00-00

Unavailable

20

DAMPER 1

F1B-6515D-01-00

Unavailable

21

. SHAFT A

F1B-6515H-00-00

Unavailable

22

. STAY, DAMPER

F1B-6514U-00-00

Unavailable

23

. SHAFT B

F1B-6515J-00-00

Unavailable

24

. COVER , SPRING

F1B-6518F-00-00

Unavailable

25

. CLAMP

90464-44001-00

Unavailable

26

CIRCLIP (701)

93430-06024-00

Unavailable

27

. GROMMET

90480-10006-00

Unavailable

28

. COLLAR

90387-07008-00

Unavailable

29

BOLT, WITH WASHER

90119-06830-00

Unavailable

30

BOLT, WITH WASHER

90119-06896-00

Unavailable

31

PLATE, HINGE LID

F1B-6518E-00-00

Unavailable

32

RIVET, BLIND

90267-48020-00

Unavailable

33

NUT, NYLON

9572R-06300-00

Unavailable
