- FX1000CB (FX140) F1B4 2003
ENGINE HATCH 1

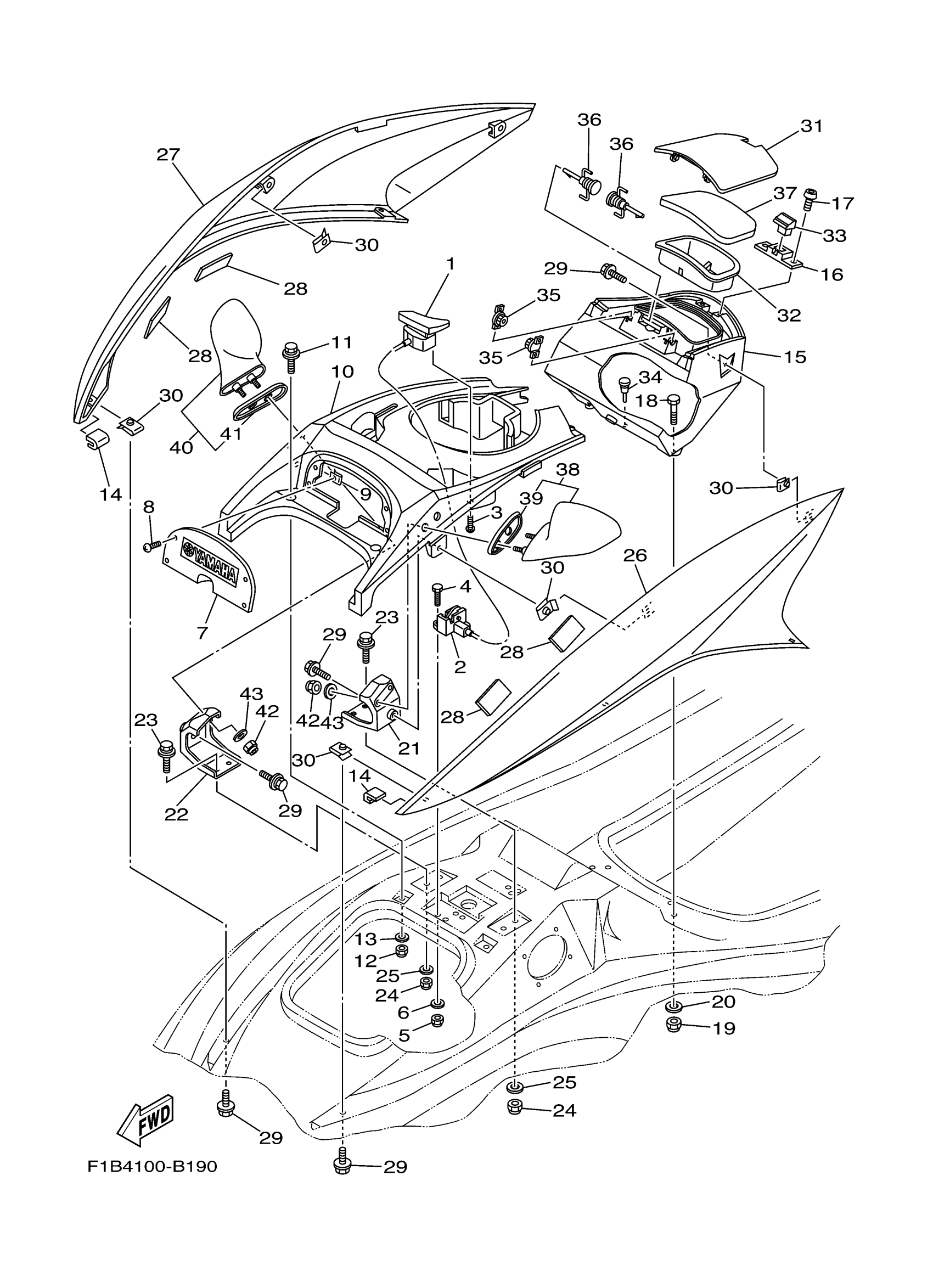

Yamaha FX1000CB (FX140) F1B4 2003 ENGINE HATCH 1 Diagram
#
1
LEVER, LID LOCK
F1B-651A1-00-00
Unavailable
2
LOCK, LID
F1B-6517C-01-00
Unavailable
3
SCREW
90149-05946-00
Unavailable
4
BOLT, WITH WASHER
90119-06824-00
Unavailable
5
NUT, NYLON
9572R-06300-00
Unavailable
6
WASHER
9299R-06200-00
Unavailable
7
SEAL, COVER CENTER
F1B-U555B-00-00
Unavailable
8
SCREW,TRASS HEAD (FJ0)
90149-05959-00
$7.49
9
NUT
FJ0-61432-00-00
Unavailable
10
COVER, CENTER (YAMAHA BLACK)
F1B-U5554-00-00
Unavailable
11
BOLT, WITH WASHER(GH1)
90119-06934-00
Unavailable
12
NUT, NYLON
9572R-06300-00
Unavailable
13
WASHER
9299R-06200-00
Unavailable
14
TRIM, HATCH 1
F1B-U5115-00-00
Unavailable
15
BOX GLOVE (YAMAHA BLACK)
F1B-U516P-00-00
Unavailable
16
PLATE
F1B-65193-00-00
Unavailable
17
BOLT,HEX. SOCKET BUTTON
90111-06033-00
Unavailable
18
BOLT, HEXAGON (FJ1)
97080-08030-00
Unavailable
19
NUT, NYLON (6J8)
95780-08300-00
Unavailable
20
WASHER
9299R-08200-00
Unavailable
21
BRKT, COVER SIDE 1
F1B-U377M-00-00
Unavailable
22
BRKT, COVER SIDE 2
F1B-U377N-00-00
Unavailable
23
BOLT, WITH WASHER(GH1)
90119-06934-00
Unavailable
24
NUT, NYLON
9572R-06300-00
Unavailable
25
WASHER
9299R-06200-00
Unavailable
26
COVER, SIDE 1 (DARK PURPLISH BLUE METALLIC F)
F1B-U377B-10-P0
Unavailable
26
COVER,SIDE 1(BLACK MET.)
F1B-U377B-29-P0
Unavailable
27
COVER, SIDE 2 (DARK PURPLISH BLUE METALLIC F)
F1B-U377C-10-P0
Unavailable
27
COVER,SIDE 2(BLACK MET.)
F1B-U377C-29-P0
Unavailable
28
MAT 2
GJ1-U759C-00-00
Unavailable
29
BOLT,WITH WASHER
90119-068B8-00
Unavailable
30
NUT, SPRING(GJ3)
90183-06902-00
Unavailable
31
LID HATCH
F1B-U517H-00-00
Unavailable
32
HOLDER, DRINK
F1B-U5633-01-00
Unavailable
33
LOCK
F0D-62875-00-00
Unavailable
34
. PLUG
90605-502U2-00
Unavailable
35
GEAR ASSY
F1B-60210-00-00
Unavailable
36
PIN, HINGE
F1B-6517R-00-00
Unavailable
37
PACKING CASE
F1B-U519D-00-00
Unavailable
38
MIRROR LH
F1B-6596B-00-00
Unavailable
39
. GASKET, MIRROR LH
F1B-6596F-00-00
Unavailable
40
MIRROR RH
F1B-6596C-00-00
Unavailable
41
. GASKET, MIRROR RH
F1B-6596G-00-00
Unavailable
42
NUT, NYLON (6J8)
95780-08300-00
Unavailable
43
WASHER
9299R-08200-00
Unavailable
