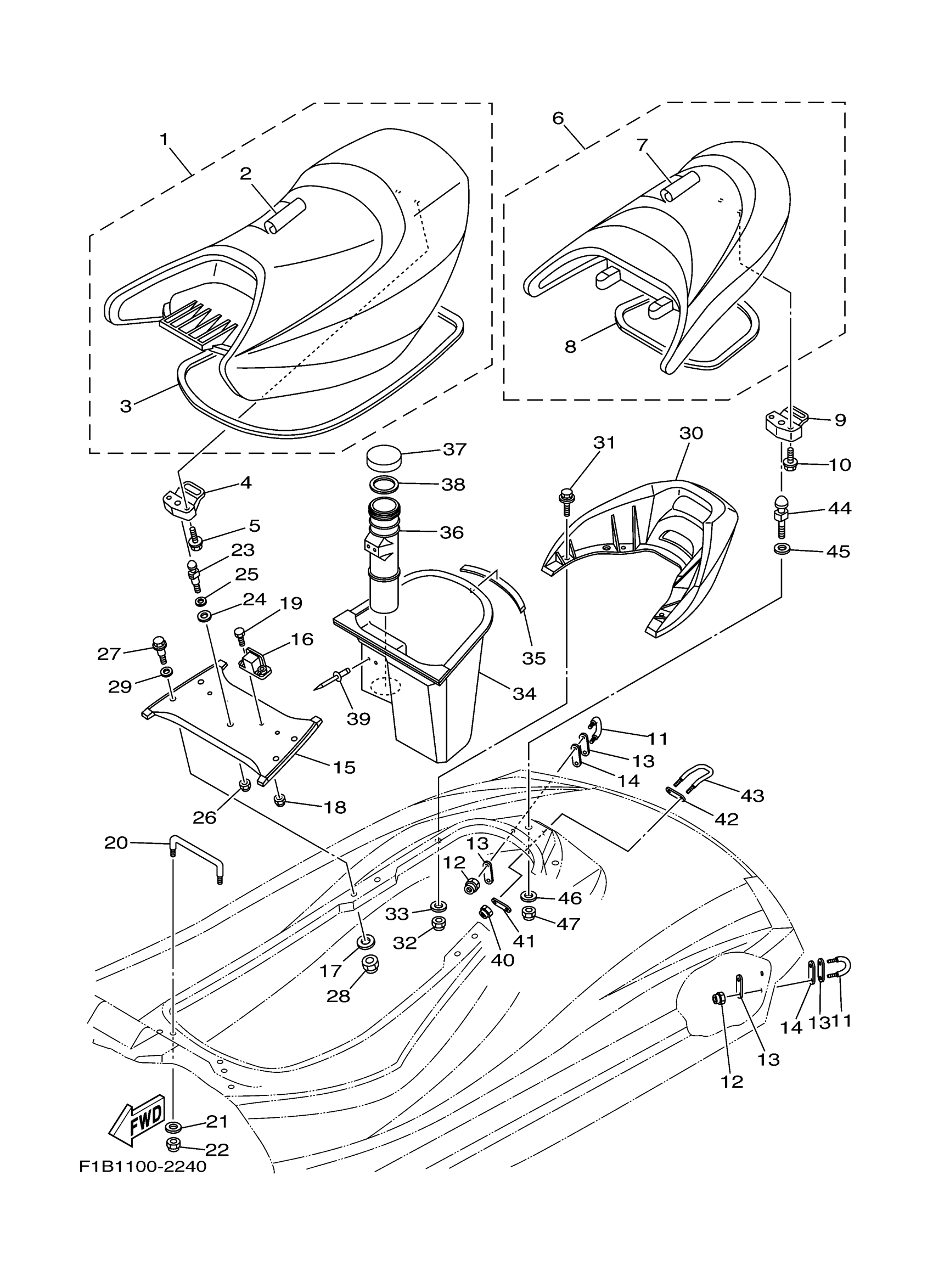

Yamaha FX1000CA (FX140) F1B11 2002 SEAT UNDER LOCKER Diagram

#

Description
Price

1

SEAT ASSY(LT.MET.PEWTER)

F1B-U371A-09-00

Unavailable

2

. COVER, SEAT 1

F1B-U371B-00-00

Unavailable

3

PACKING 4

F1B-U266C-03-00

Unavailable

4

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F1B-U372A-02-00

Unavailable

7

. COVER, SEAT

F1B-U372B-00-00

Unavailable

8

. PACKING 5

F1B-U266D-00-00

Unavailable

9

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

12

NUT, NYLON (6J8)

95780-08300-00

$10.55

13

PLATE A

GP7-U4953-10-00

$3.52

14

PACKING

F1B-U1653-03-00

$1.88

15

BEAM, DECK 1

F1B-U8952-01-00

$228.77

16

STAY,SEAT 2

GU2-6378D-02-00

$19.68

17

WASHER

9299R-08200-00

Unavailable

18

NUT, NYLON

9572R-06300-00

$2.80

19

BOLT

90101-069U0-00

$1.23

20

STAY, SEAT 1

F0X-6378C-00-00

$51.50

21

WASHER, PLATE

90201-099U3-00

$2.16

22

NUT, NYLON (6J8)

95780-08300-00

$10.55

23

PIN

F1B-U3774-00-00

$22.71

24

PACKING 1

F0X-6375E-00-00

$3.64

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

NUT, NYLON

9572R-10300-00

$3.37

27

BOLT

F1B-U2624-00-00

Unavailable

28

NUT, NYLON (6J8)

95780-08300-00

$10.55

29

WASHER

9299R-10200-00

$1.63

30

GRIP, HAND (YAMAHA BLACK)

F1B-U271B-00-00

$368.17

31

BOLT, WITH WASHER

90119-08907-00

$5.45

32

NUT, NYLON (6J8)

95780-08300-00

$10.55

33

WASHER

9299R-08200-00

Unavailable

34

LOCKER, UNDER 2

F1B-U4742-01-00

Unavailable

35

.. PACKING,6

F0X-U266E-01-00

$15.89

36

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

37

. CAP, CASE

EW2-U5912-01-00

Unavailable

38

PACKING, CASE

EW2-U5913-01-00

Unavailable

39

RIVET, 1

F3J-U516R-00-00

$2.36

40

NUT, NYLON (6J8)

95780-08300-00

$10.55

41

PLATE A

GP7-U4953-10-00

$3.52

42

PLATE A

GP7-U4953-10-00

$3.52

43

SKI TOWS

F1B-U1629-00-00

$25.11

44

PIN

GH1-U3774-00-00

$19.38

45

WASHER, PLATE

90201-109U6-00

$3.29

46

WASHER

9299R-10200-00

$1.63

47

NUT, NYLON

9572R-10300-00

$3.37
