2002 Yamaha FX140 (FX1000CA) Intake Diagram

← All diagrams

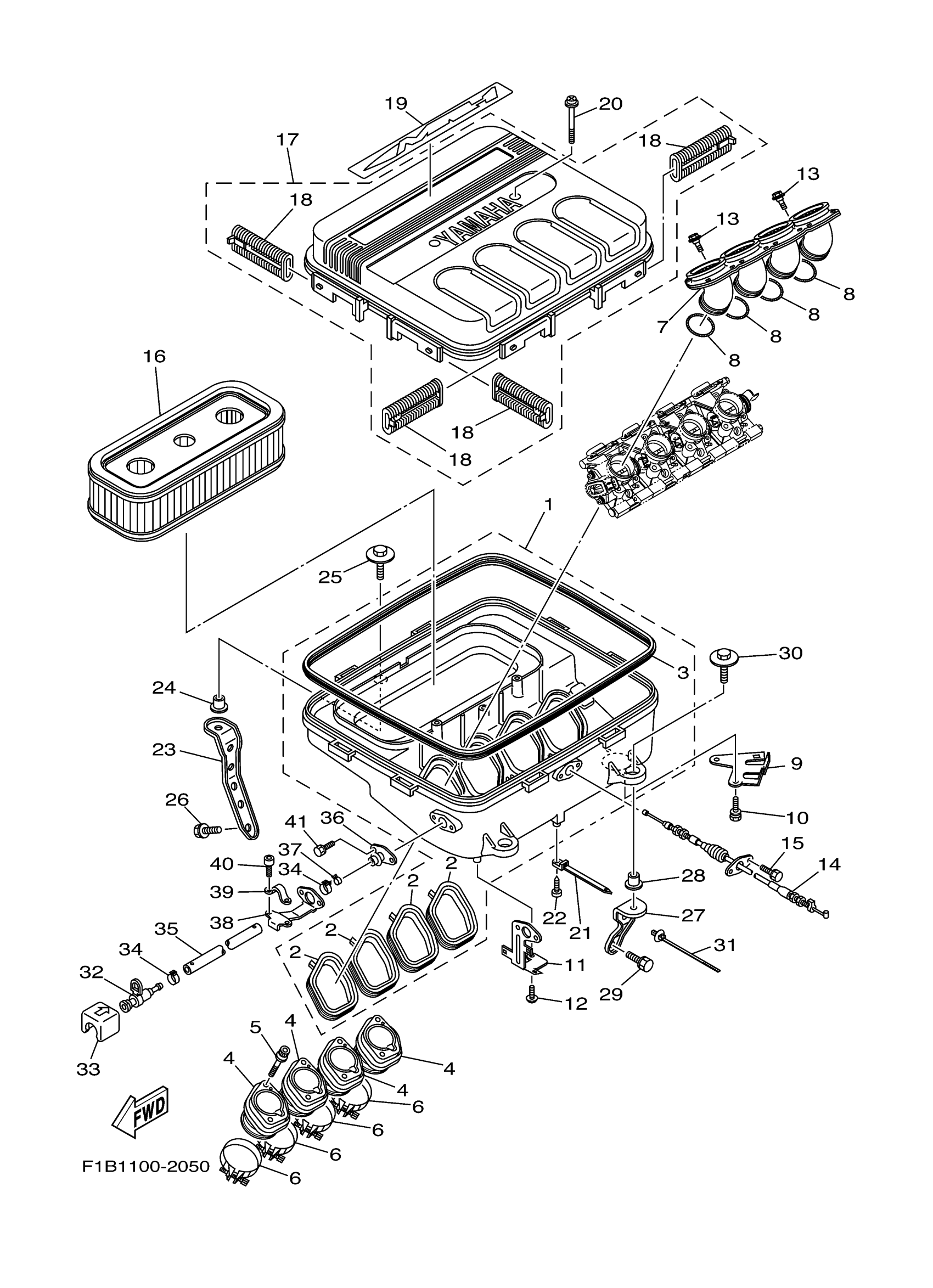

Find the part on the Intake diagram for your 2002 Yamaha FX140 (FX1000CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha FX140 (FX1000CA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR CLEANER ASSY.

60E-14410-02-00

1

$333.99

In stock

2

. SEAL

60E-14239-00-00

1
Out of stock

3

. SEAL

60E-14457-00-00

1

$24.49

In stock

4

JOINT, THROTTLE BODY 1

60E-13795-00-00

1
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

1

$4.15

In stock

6

HOSE CLAMP ASSY

90450-57002-00

1
Out of stock

7

RIBBON, SUB ASSY

60E-1440A-02-00

1

$965.49

In stock

8

.. SPRING

4XV-14275-00-00

1
Out of stock

9

BRACKET 3

60E-14869-00-00

1

$6.46

In stock

10

BOLT, WITH WASHER(61B)

97513-06516-00

1

$1.66

In stock

11

BRACKET

60E-14867-00-00

1
Out of stock

12

SCREW, ROUND TAPPING

90160-05003-00

1

$5.53

In stock

13

BOLT

90109-06053-00

1

$4.62

In stock

14

CABLE, THROTTLE 1

60E-26311-00-00

1

$108.99

In stock

15

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

16

ELEMENT, AIR CLEANER

6B6-14451-01-00

1

$176.41

In stock

17

AIR CLEANER ASSY 2

60E-14420-01-00

1
Out of stock

18

. HOLDER

66V-13898-00-00

1

$9.10

In stock

19

GRAPHIC 1

60E-2339E-00-00

1

$75.99

In stock

20

SCREW, WITH WASHER

90159-05006-00

—

$2.20

In stock

21

CLAMP

90465-12M53-00

1

$5.08

In stock

22

SCREW, ROUND TAPPING

90160-05003-00

1

$5.53

In stock

23

STAY

60E-14413-00-00

1

$18.49

In stock

24

COLLAR

60E-14449-00-94

1

$15.49

In stock

25

BOLT, WITH WASHER

90119-08050-00

1

$5.54

In stock

26

BOLT, WITH WASHER

90119-08032-00

1

$4.15

In stock

27

STAY 2

60E-14414-00-00

1

$15.99

In stock

28

COLLAR

60E-14449-00-94

1

$15.49

In stock

29

BOLT, WITH WASHER

90119-08032-00

1

$4.15

In stock

30

BOLT, WITH WASHER

90119-08050-00

1

$5.54

In stock

31

CLAMP

90464-20005-00

1
Out of stock

32

FUEL PIPE JOINT

60E-24300-01-00

1

$26.08

In stock

33

COVER

60E-24474-00-00

1

$3.69

In stock

34

HOSE CLAMP ASSY

90450-17M17-00

1

$9.22

In stock

35

HOSE

60E-14294-03-00

1
Out of stock

36

SEAL

60E-24329-00-00

1

$6.00

In stock

37

CLIP

90467-09120-00

—

$5.62

In stock

38

STAY

60E-24364-00-00

1
Out of stock

39

CLAMP, FUEL PIPE 1

60E-24366-00-00

1
Out of stock

40

BOLT

91380-04008-00

1

$5.54

In stock

41

BOLT, WITH WASHER(61B)

97513-06516-00

1

$1.66

In stock
