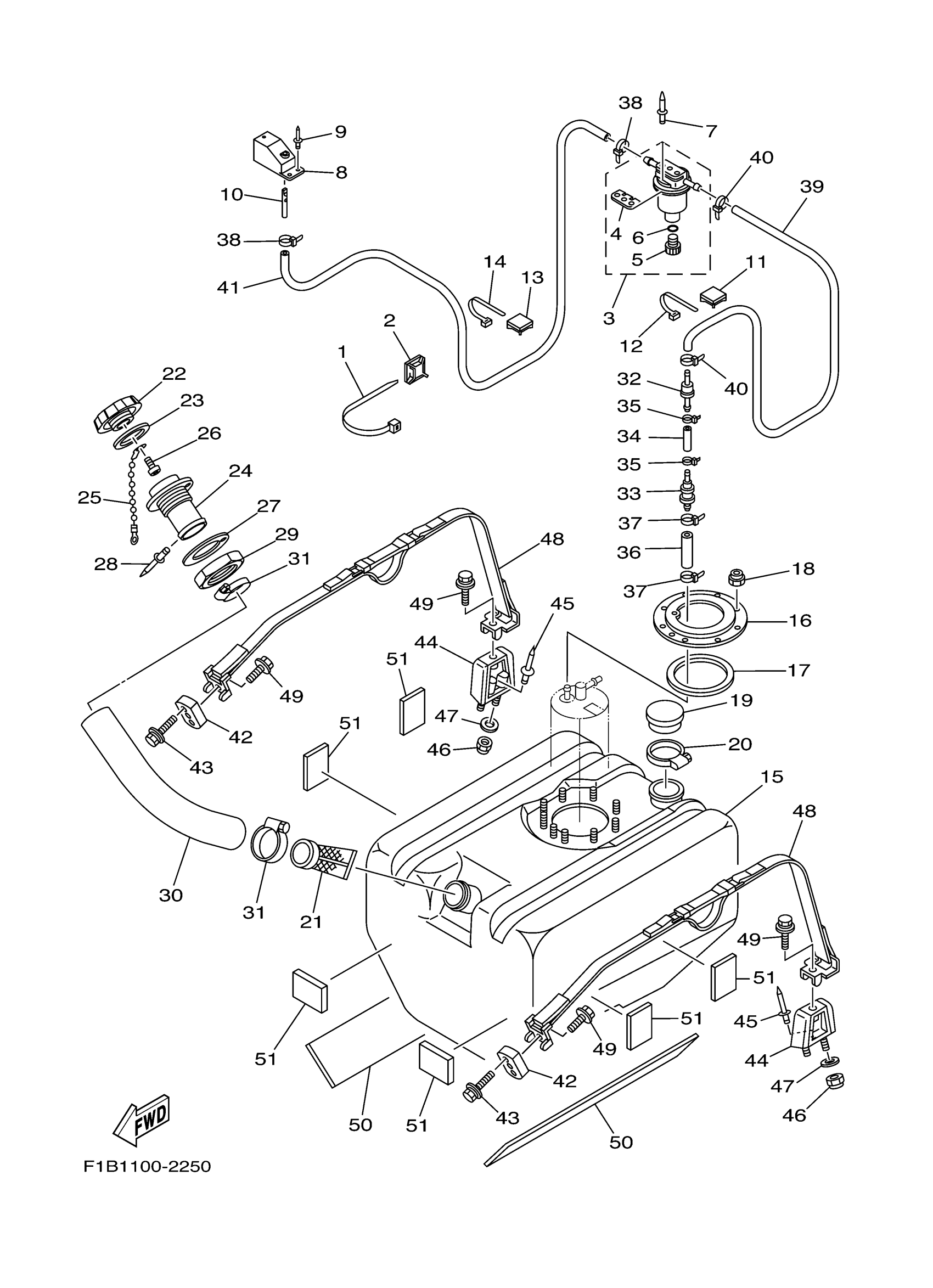

Yamaha FX1000CA (FX140) F1B11 2002 FUEL TANK Diagram

#

Description
Price

1

CLAMP

90464-99804-00

$4.04

2

BASE, CLAMP

90600-900U6-00

Unavailable

3

FILTER, VENT ASSY

F2F-6214A-00-00

$49.58

4

. PLATE, FILTER

EW2-62142-00-00

$44.10

5

. PLUG, DRAIN

70R-24543-00-00

$8.81

6

. O-RING

70R-24489-00-00

$4.85

7

RIVET, BLIND

90267-489U2-00

$1.51

8

SOCKET, VENTILATION

GP7-62159-02-00

$18.37

9

RIVET, BLIND

90267-489U6-00

Unavailable

10

PIPE, VENTILATION 1

EW2-62149-00-00

$7.06

11

BASE, CLAMP

90600-900U6-00

Unavailable

12

CLAMP(JN6)

90464-40825-00

$1.63

13

BASE, CLAMP

90600-900U6-00

Unavailable

14

CLAMP(JN6)

90464-40825-00

$1.63

15

TANK, FUEL

F1B-U7711-01-00

Unavailable

16

RING

F1B-U7773-00-00

$22.25

17

PACKING, SEAL

F1B-67747-00-00

$17.09

18

NUT, NYLON

9572R-06300-00

$2.93

19

COVER

FN8-6771K-00-00

$15.43

20

BAND, HOSE 62

90601-162U5-00

$6.46

21

FILTER

F1B-6775C-00-00

$60.28

22

CAP, FUEL FILLER

GP7-U7831-01-00

$26.54

23

PACKING

GP7-U7832-01-00

$5.62

24

SOCKET

GP7-U7833-00-00

$38.22

25

CHAIN BALL

GP7-U7835-00-00

$4.72

26

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

27

PACKING FUEL FILLER

GP7-U7834-00-00

$13.22

28

RIVET, BLIND

90267-329UR-00

$1.23

29

NUT, FUEL FILLER

GP7-U783F-00-00

$3.88

30

HOSE

F1B-U7844-01-00

Unavailable

31

BAND, HOSE 55

90601-155U4-00

$6.17

32

. CHECK VALVE

F1B-67767-00-00

Unavailable

33

. ROLL OVER VALVE

FJ0-67766-00-00

$52.93

34

HOSE

90699-50100-00

$26.46

35

CLAMP

90465-10098-00

$2.24

36

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.07

37

CLAMP

90465-10098-00

$2.24

38

CLAMP

90465-10098-00

$2.24

39

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

40

CLAMP

90465-10098-00

$2.24

41

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

42

NUT, SPECIAL

F1B-U2873-00-00

Unavailable

43

BOLT, WITH WASHER

90119-08800-00

$4.31

44

BRKT, BAND

F1B-6774J-00-00

$151.46

45

RIVET, BLIND

90267-489U2-00

$1.51

46

NUT, NYLON

9572R-06300-00

$2.93

47

WASHER

9299R-06200-00

$0.43

48

BELT, TANK 1

F1B-67743-01-00

$95.57

49

BOLT, WITH WASHER

90119-08800-00

$4.31

50

MAT 1

F1B-U759B-00-00

Unavailable

51

MAT 2

F1B-U759C-00-00

Unavailable
