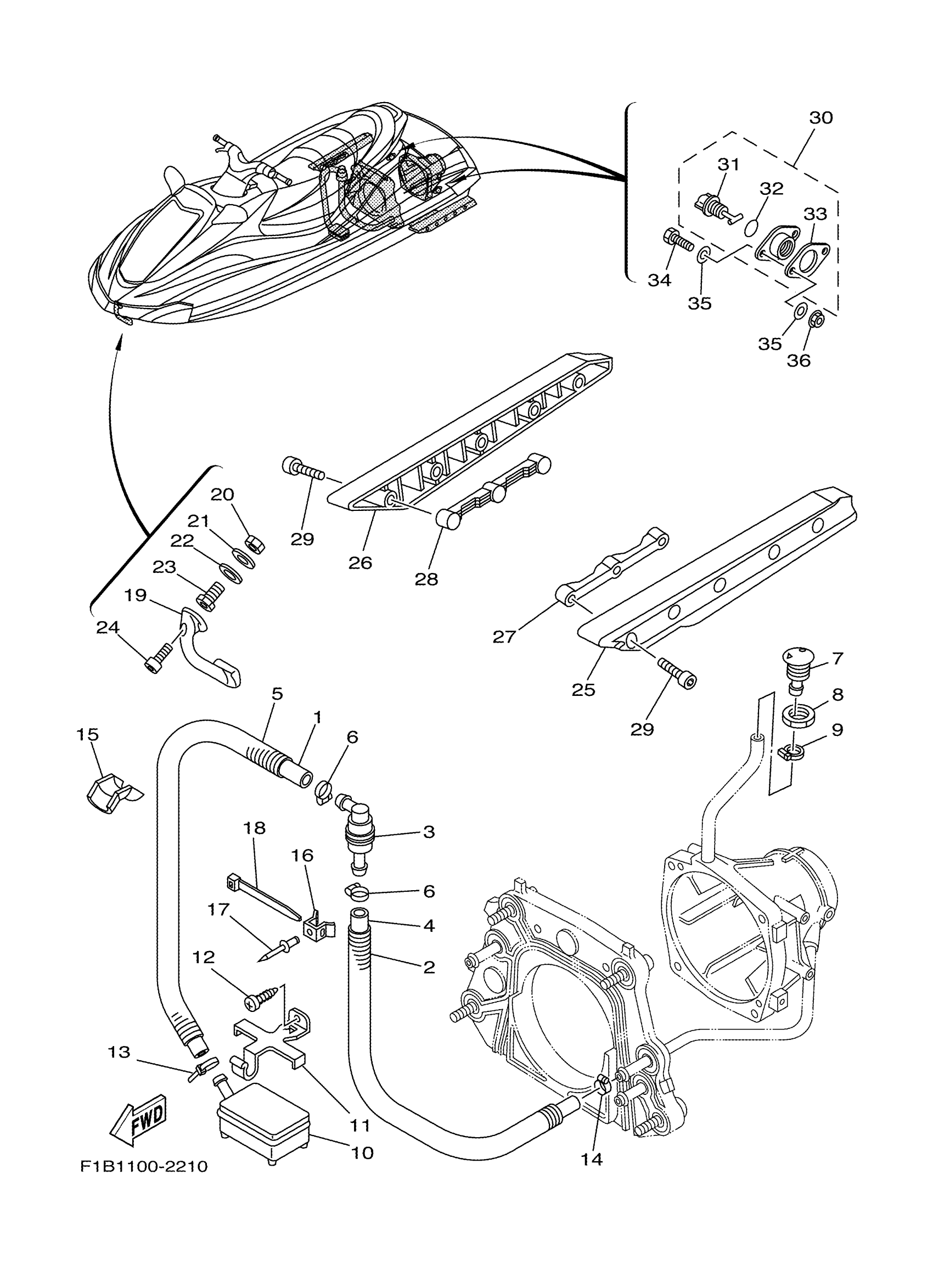

Yamaha FX1000CA (FX140) F1B11 2002 HULL DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-198B6-00

Unavailable

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE

90445-19M01-00

Unavailable

5

HOSE(63M)

90446-27M55-00

$14.36

6

BAND, HOSE 18

90601-118UF-00

$2.07

7

SPOUT

FN8-6269B-00-00

$22.49

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

11

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

12

SCREW, TAPPING

9778R-50112-00

Unavailable

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-200A0-00

$7.40

15

PACKING, HOSE 2

F1B-U7578-20-00

Unavailable

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

90464-32801-00

$1.23

19

BOWEYE 1

F0X-61624-00-00

$60.49

20

NUT.HEX.(COARS)

99780-12600-00

$2.80

21

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

22

WASHER

F0X-61637-00-00

$1.29

23

NUT

F0X-61652-01-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

25

STABILIZER LH

F1B-U883N-02-00

Unavailable

26

STABILIZER RH

F1B-U883P-02-00

Unavailable

27

BRACKET,STABILIZER

F1F-U883T-02-00

Unavailable

28

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

29

BOLT

F1B-U1355-00-00

Unavailable

30

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

31

. PLUG, DRAIN

EU0-62282-00-00

$7.40

32

. O-RING

EU0-62283-00-00

$3.70

33

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

34

SCREW, PAN HEAD

9788R-05025-00

$2.52

35

WASHER

9299R-05200-00

$3.16

36

NUT, FLANGE

9572R-05300-00

$1.43
