2002 Yamaha FX140 (FX1000CA) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2002 Yamaha FX140 (FX1000CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

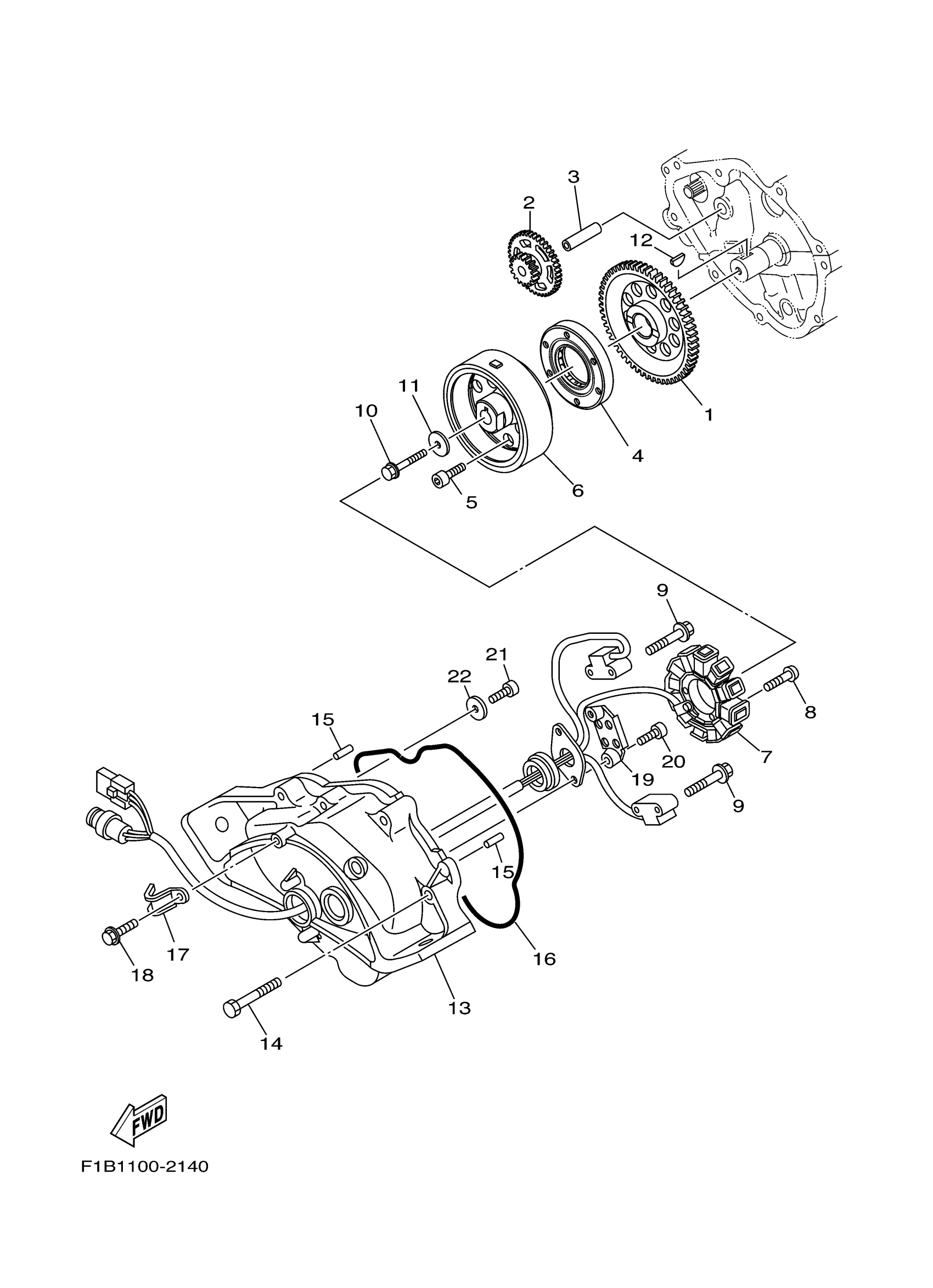

2002 Yamaha FX140 (FX1000CA) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

60E-15515-00-00

1
Out of stock

2

GEAR, IDLER 2

60E-15517-00-00

1

$112.49

In stock

3

SHAFT 1

60E-15521-00-00

1

$11.49

In stock

4

STARTER ONE-WAY ASSY

4WM-15590-00-00

1
Out of stock

5

BOLT, SOCKET

91317-08020-00

1

$2.34

In stock

6

ROTOR ASSY

60E-81450-00-00

1

$548.99

In stock

7

STATOR ASSY

60E-81410-01-00

1

$497.49

In stock

8

SCREW

90149-06013-00

—
Out of stock

9

BOLT, WITH WASHER

97513-05514-00

1

$3.69

In stock

10

BOLT, WASHER BASED

90105-105A6-00

—
Out of stock

11

WASHER, PLATE

90201-103U7-00

—
Out of stock

12

KEY, WOODRUFF(1WG)

90280-03047-00

1

$4.86

In stock

13

COVER, FLYWHEEL

60E-81337-00-94

1

$489.99

In stock

14

BOLT, WITH WASHER

90119-10016-00

1

$6.46

In stock

15

PIN, DOWEL

93608-16M16-00

1

$2.48

In stock

16

O-RING

93212-04001-00

1

$27.49

In stock

17

CLAMP

90462-10016-00

1

$10.99

In stock

18

BOLT,SOCKET

91380-05010-00

1
Out of stock

19

CLAMP

60E-81328-00-00

1

$7.38

In stock

20

BOLT,SOCKET

91317-06014-00

—
Out of stock

21

BOLT, SOCKET

91317-05010-00

—

$1.68

In stock

22

WASHER, PLATE

90201-05014-00

1
Out of stock
